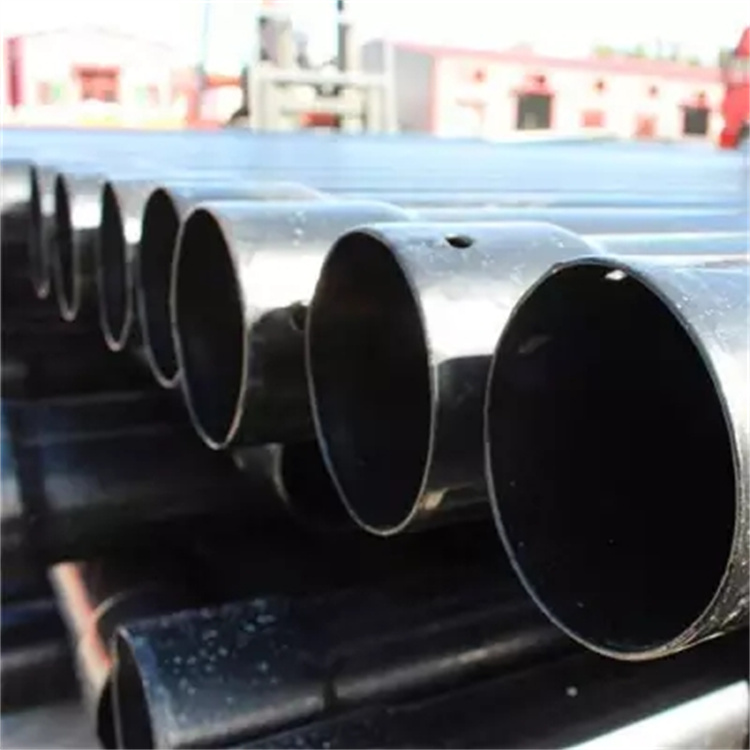

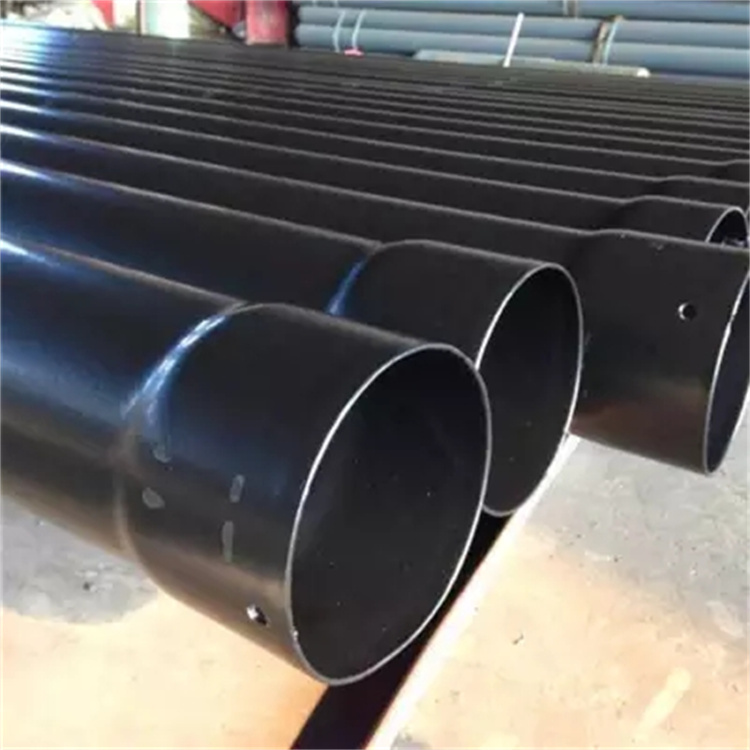

Cable protection conduits are steel-plastic composite pipes coated with polyethylene or modified epoxy resin powder on both the inside and outside. These composite conduits for cables offer excellent chemical stability, good mechanical properties, and high compressive strength, providing superior protection for cables. Different plastic coatings can meet usage requirements from -40℃ to 90℃ of external temperatures, making them suitable for high and low voltage cable installations. Pipe connections can be made in various ways, greatly facilitating on-site construction. The cable sheath conduits possess excellent comprehensive properties, effectively offering good protection and anti-aging effects for cables.

Performance Parameters | Test Item | Requirement | Test Result | Basis | Coating Thickness | ≥0.4mm | Pass | Q/AR-D2007 | Bend Test | Steel pipe has no cracks; coating does not peel off or break | Pass | GB244-82 | Q/AR-D2007 | Flattening Test | Coating does not peel off or break | Pass | GB246-82 | Q/AR-D2007 | Impact Test | Coating does not peel off or break | Pass | Q/AR-D2007 | Dielectric Strength Test | No puncture at 2000V | Pass | Q/AR-D2007 | Chemical Corrosion Resistance | Salt spray accelerated test for 1 week shows no abnormalities | Pass | Q/AR-D2007 | Flame Retardancy | Does not burn or support combustion | Pass | Q/AR-D2007 | Cable Protection Tube | Steel-plastic composite pipe coated with polyethylene or modified epoxy resin powder inside and outside | The composite pipe for cables has good chemical stability, excellent mechanical properties, high compressive strength, and provides excellent protection for cables. | Different plastic coatings can meet the requirements of external temperatures from -40℃ to 90℃ and are suitable for high and low voltage cable laying. Pipe connections can be made in various ways, greatly facilitating on-site construction. The cable laying protection tube has excellent comprehensive properties and canExcellent protective and anti-aging properties.
