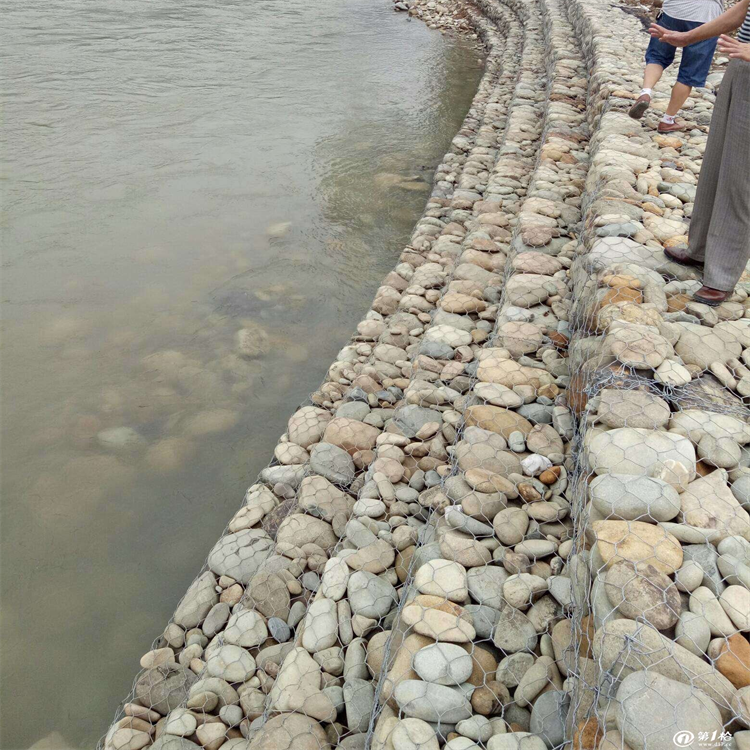

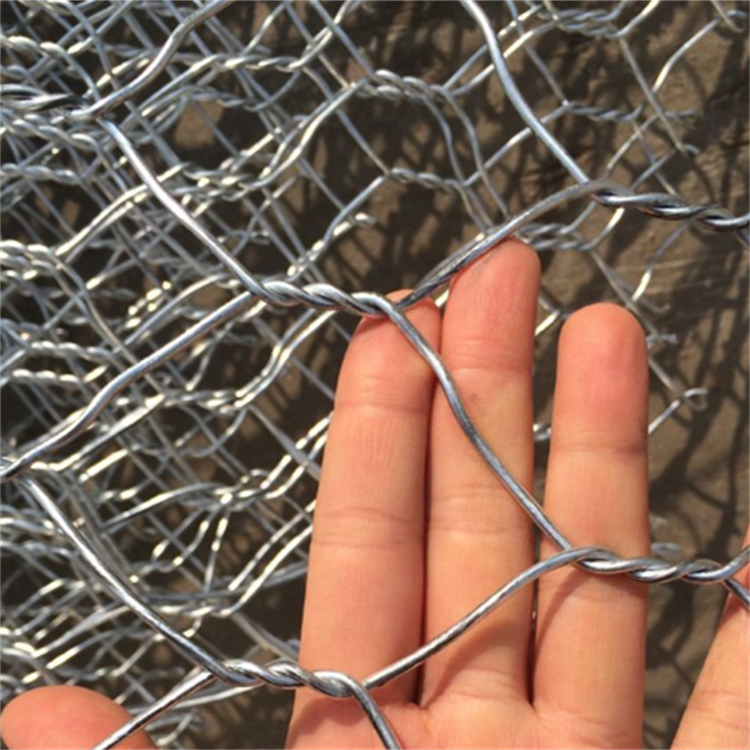

The gabion baskets are mechanically woven from high-corrosion-resistant, high-tensile, and ductile low-carbon steel wire, or the above-mentioned wire coated with PVC. The box-like structures made from this mesh are known as gabion mesh baskets. The diameter of the low-carbon steel wire used varies according to engineering design requirements, generally ranging from 2.0 to 4.0mm, in accordance with ASTM and EN standards. The tensile strength of the gabion mesh wire should not be less than 38kg/m², the weight of the metal coating is usually higher than 245g/m², and the diameter of the edge line of the gabion mesh sheet should generally be larger than that of the mesh wire. The length of the double-strand twisted portion must not be less than 50mm to ensure that the metal and PVC coatings on the twisted wire are not damaged.

Hole Size: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 90*110mm

The length of the double-stranded twisting section must not be less than 50mm to ensure the metallic coating and PVC coating on the twisted steel wire are not damaged.

(2) Wire Diameter: The stone笼 net is divided into three types of wire diameters – mesh wire, edge wire, and binding wire.

The wire mesh range is from 2mm to 4mm.

2. The edge wire is generally thicker than the mesh wire, about 0.5-1.0mm thicker.

3. Binding wire is generally smaller than mesh wire, with 2.2mm being the most common size.

(3) Wire Tensile Strength: Not less than 38 kg/m² / 380 N/mm²

Surface Treatment

Electro galvanized. Zinc coating is 10g/m². Poor corrosion resistance.

2. Hot galvanized. Zinc coating can reach up to 300g/m². Strong corrosion resistance.

3. Galfan (Zn-Al alloy). This is available in two materials: zinc-5% aluminum-mixed rare earth alloy wire and zinc-10% aluminum-mixed rare earth alloy wire.

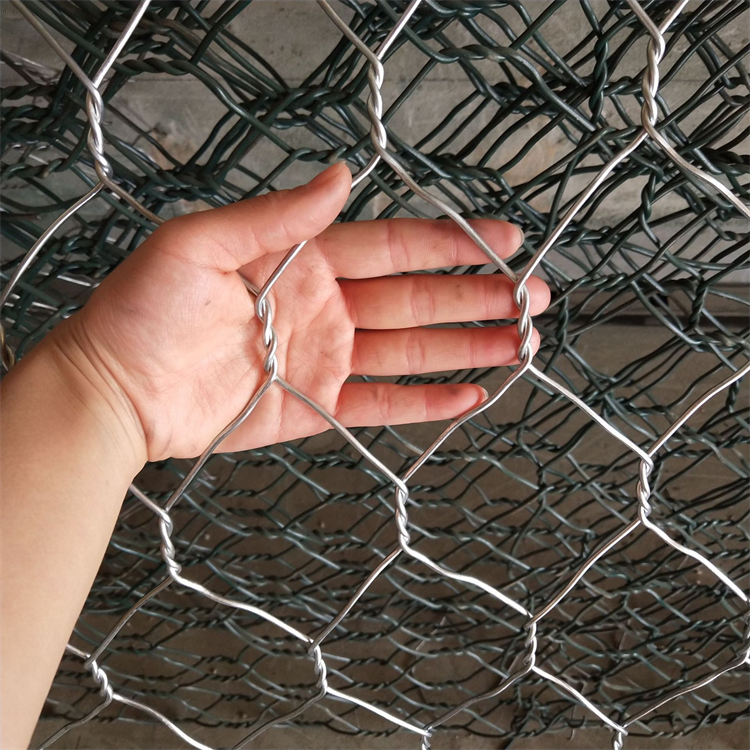

4. PVC Coated. The coating thickness is generally 1.0mm, for instance: after coating a 2.7mm material, it becomes 3.7mm. Strong corrosion resistance.

Partition: Add a partition every meter along the length of the stone笼 net

(2) Dimensions: Customizable to standard specifications

(3) Diameter range corresponding to hole size and wire size
