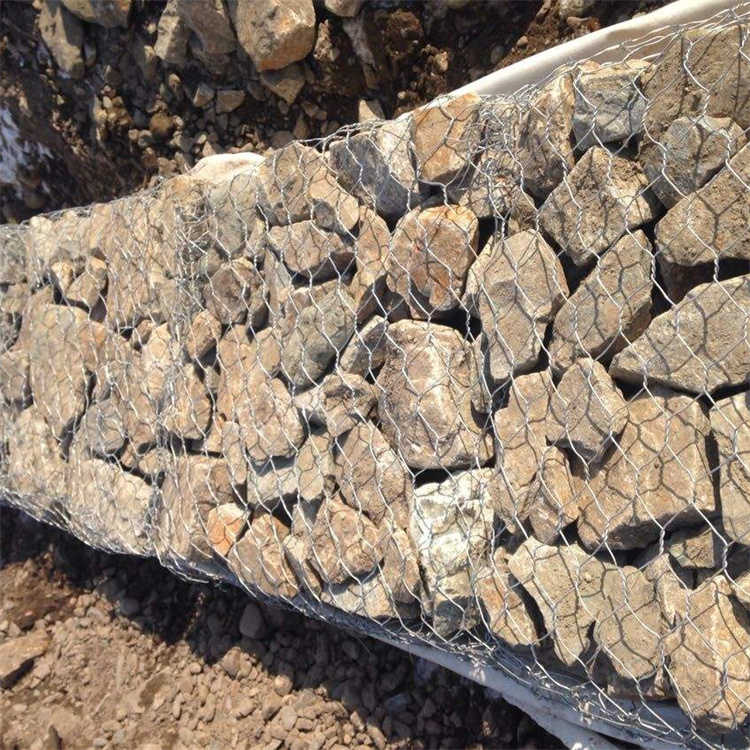

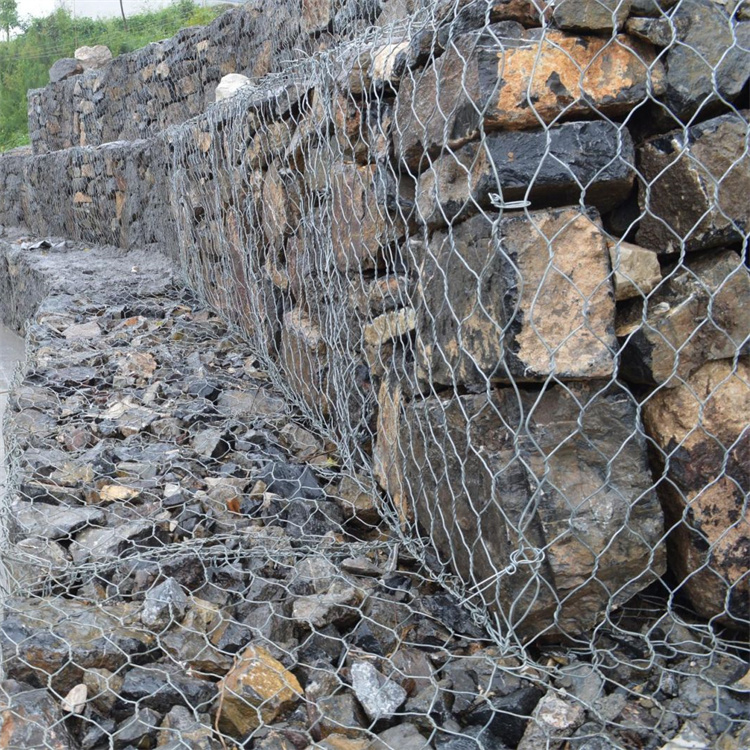

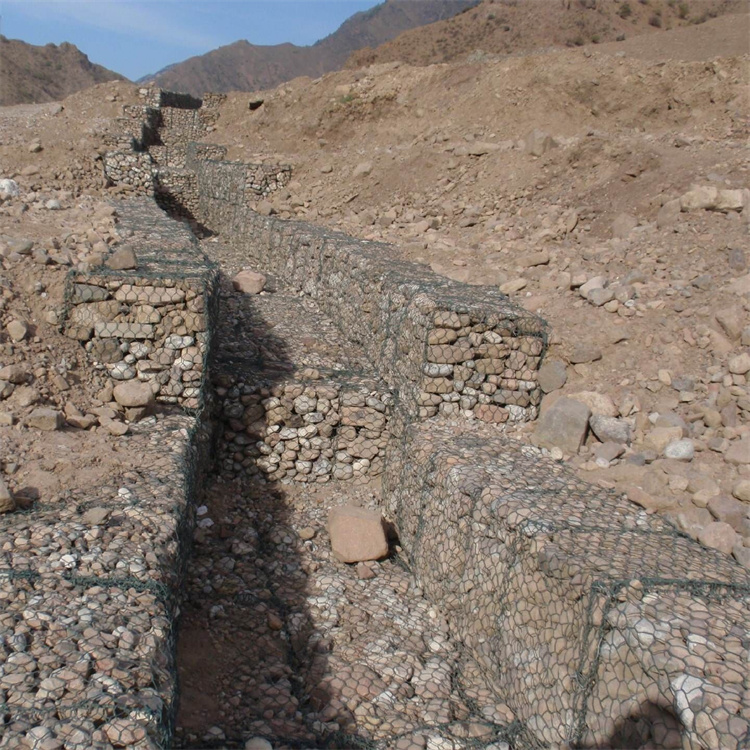

Lead wire stone笼mesh boxes are mechanically woven from high corrosion-resistant, high-tensile, and ductile low-carbon steel wire, or wire coated with PVC. The box-like structures made from this mesh are known as stone笼mesh boxes. The diameter of the low-carbon steel wire used complies with ASTM and EN standards and varies according to engineering design requirements, generally ranging from 2.0 to 4.0 mm. The tensile strength of the stone笼mesh wire is not less than 38 kg/m², the weight of the metal coating is usually above 245 g/m², and the diameter of the edge line of the stone笼mesh sheet is generally larger than that of the wire diameter. The length of the double-strand twisted section must not be less than 50 mm to ensure that the metal and PVC coatings of the twisted wire are not damaged.

(1) Aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 90*110mm

The length of the double-strand braided section must not be less than 50mm to ensure that the metallic coating and PVC coating on the steel wires in the braided section are not damaged.

(2) Wire Diameter: The stone笼 mesh is divided into three types of wire diameters—mesh wire, edge wire, and binding wire.

The wire diameter range is 2mm-4mm.

2. The edge wire is generally thicker than the mesh wire, 0.5-1.0mm thicker.

3. Binding wire is generally smaller than mesh wire, with 2.2mm being the most common size.

(3) Wire Tensile Strength: Not less than 38 kg/m² / 380 N/mm²

Surface Treatment

Electroplated zinc. Zinc coating is 10g/m². Poor corrosion resistance.

2. Hot-dip galvanized. Zinc coating can reach up to 300g/m². Strong corrosion resistance.

3. Galfan (Zn-Al alloy). It is divided into two types of materials: zinc-5% aluminum-mixed rare earth alloy wire and zinc-10% aluminum-mixed rare earth alloy wire.

4. PVC Coated. The coated thickness typically covers 1.0mm, for instance: after coating 2.7mm becomes 3.7mm.

Partition: Add a partition every meter along the length of the stone笼 mesh

(2) Dimensions: Customizable to standard sizes

(3) Aperture and thread diameter ranges
