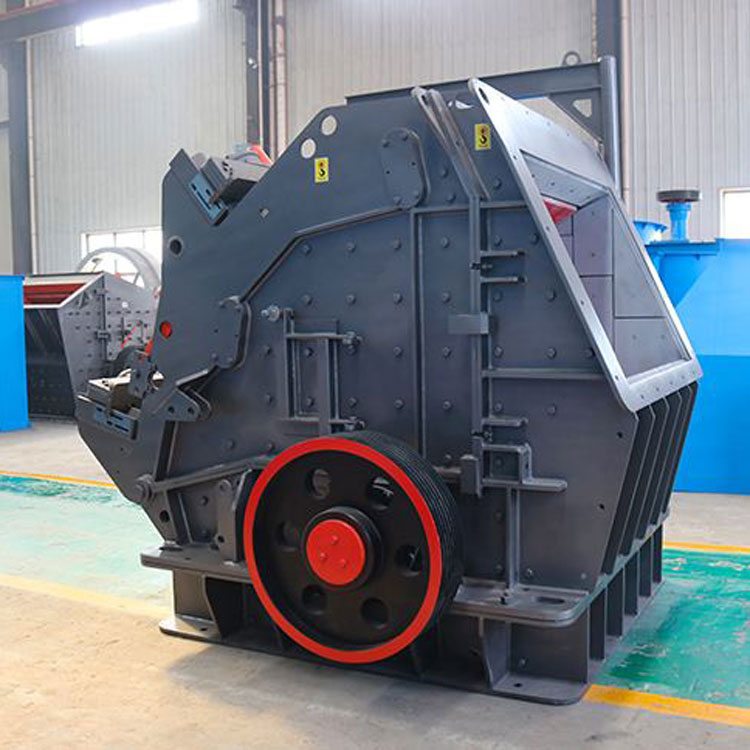

Impact Crusher Introduction

This series of impact crushers (impact breakers) is a newer generation model developed by absorbing advanced technology and integrating the specific mining and industrial conditions of the domestic sand and stone industry. It utilizes the latest manufacturing technology and structural design, producing finished products with a cuboid shape, free of tension and cracks, and excellent particle shape. It can crush a variety of coarse, medium, and fine materials (such as granite, limestone, concrete, etc.), and is widely used in various industries including ore crushing, railways, expressways, energy, cement, chemicals, and construction. The discharge particle size is adjustable, and the crushing specifications are diverse.

The反击破碎机 can handle materials with a side length of less than 100 to 500 millimeters, featuring a high compressive strength up to 350 MPa. It boasts advantages such as a large crushing ratio and cubic particle shape after crushing, making it suitable for medium-hard materials like limestone in cement plants. It has the benefits of high production capacity and small particle size of the output material.

Working Principle

Reversing impact crushers are mainly composed of: rods, front impact frame, rear impact frame, impact liners, main shaft, locking blocks, clamping plates, rotor frame, hammer blades, impact plate, and rotor, etc.

Advantages of反击Crushing Machine

1. Large feeding mouth, high crushing chamber, suitable for high material hardness, large particle size, and minimal stone powder in the product.

2. Counter-plate and hammer gap can be easily adjusted, effectively controlling the particle size and ensuring good particle shape.

3. Compact structure, high rigidity in machinery, and a large rotational inertia in the rotor.

4. High-chromium hammer plate, impact-resistant, wear-resistant, with high impact force.

5. Keyless connection, easy maintenance, and cost-effective reliability.

6. Full crushing function, high production rate, low wear on parts, and high overall efficiency.

Impact crusher hammer with superior quality

The quality of the impact hammer in a反击式破碎机directly affects its service life. To enhance the service life of the反击式破碎机, several improvements have been made to the impact hammer, such as designing the back with grooves; changing the working surface to a continuous flat plane; and reducing direct contact between bolts and materials. These enhancements significantly improved the quality of the impact hammer, extended its service life, and substantially increased the production efficiency of the反击式破碎机.

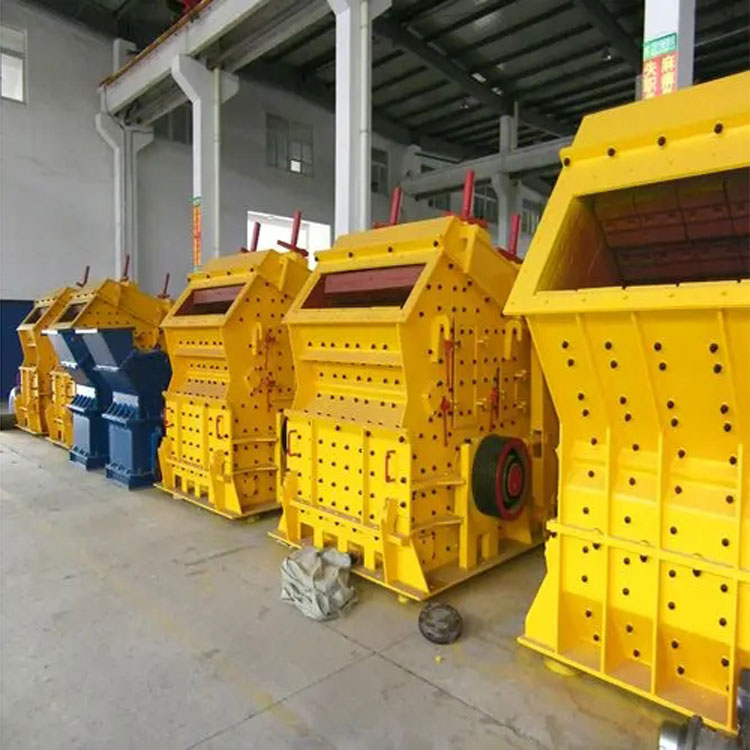

Impact crusher manufacturer

We are a leading manufacturer of impact crushers, offering machines with uniform particle size distribution and minimal overgrinding, as well as low energy consumption.

Impact Crusher Technical Parameters
