Introduction to Hydraulic Cone Crusher

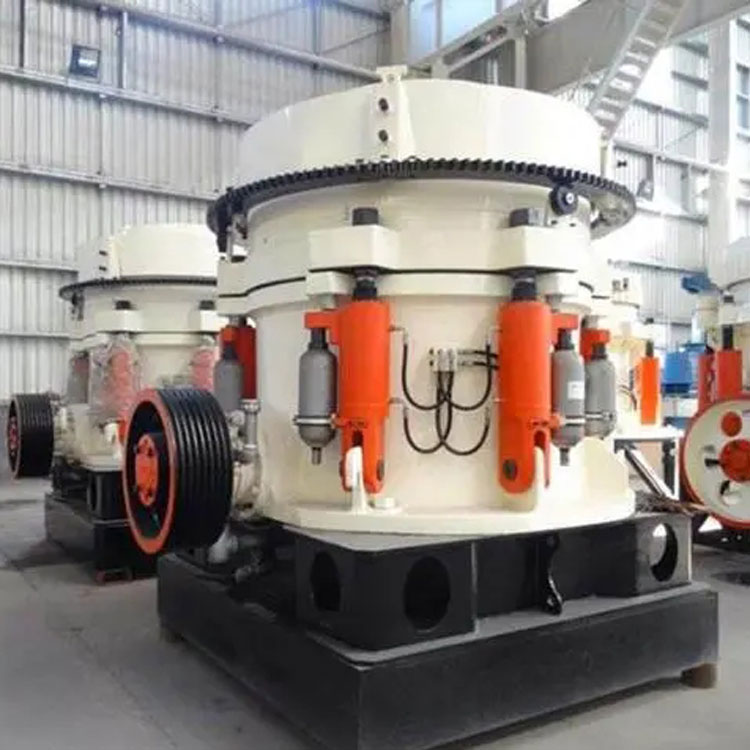

The single-cylinder hydraulic cone crusher (single-cylinder cone crusher) is a machine designed by our company, incorporating American technology and the properties of Chinese metal materials to meet the needs of development. Its design is extremely simple and compact, as the single-cylinder design at the bottom accomplishes the three crucial functions of direct discharge opening adjustment, iron prevention, and cavity clearing. Consequently, the single-cylinder hydraulic cone crusher does not require any external discharge opening adjustment mechanisms or external hydraulic cylinders or spring-based iron prevention devices, maintaining a simple and compact overall structure.

Single Cylinder Cone Crusher Advantages – Boost Your Production Yield

Crushed

Single-cylinder Hydraulic Cone Crusher (Single-cylinder Cone Crusher) features support at both ends of the main shaft, capable of withstanding greater crushing force and stroke. Additionally, its special crushing chamber shape, compatible with the laminating principle, enhances its crushing efficiency.

2. Large production capacity

Single-cylinder hydraulic cone crusher (single-cylinder cone crusher) boasts a combination design of crushing stroke, crushing speed, and crushing cavity shape, resulting in a 35% to 60% higher output and greater production capacity compared to the old-style spring cone crushers, with the same large-end diameter of the dynamic cone.

3. Uniform finished particle size

Single-cylinder hydraulic cone crusher (Single-cylinder cone crusher) utilizes a unique crushing cavity shape and the principle of laminated crushing, resulting in a破碎 effect between particles, significantly increasing the proportion of cuboid particles in the finished product, reducing needle-like and flake-like stones, and achieving a more uniform particle size distribution.

4. Reliable Operation

The single-cylinder hydraulic cone crusher features a simple and compact structure, stable performance, and is less prone to failure. It is easy and quick to maintain. The double-safety controlled hydraulic and lubrication system ensures overload protection and proper bearing lubrication for the machine.

The single-cylinder cone crusher comes in both fixed and mobile models, allowing direct access to the raw material site without the need for pile driving. This makes the crushing operation more convenient and efficient. Join me as we take a look at the true appearance of this mobile cone crusher.

Operating Principle

The single-cylinder hydraulic cone crusher (single-cylinder cone crusher) operates by the motor driving the small gear of the crusher, which in turn drives the large gear. The large gear assembly (large gear, large gear frame, eccentric steel sleeve) drives the eccentric sleeve assembly (eccentric cylinder sleeve, eccentric copper sleeve) and the main shaft assembly (main shaft, inner cone, inner cone liner) to rotate around a theoretical vertical axis within the copper liner. The main shaft assembly can rotate freely within the eccentric copper sleeve. During no-load operation, the eccentric sleeve assembly "holds" the main shaft assembly and rotates along with the large gear. When material is added to the crushing chamber, the main shaft assembly (main shaft, inner cone) slowly rotates within the eccentric copper sleeve under the resistance of the material. The running path of the inner cone appears to swing back and forth within the crushing chamber while rotating slowly. The material is crushed by the swinging inner cone. The connection between the support sleeve and the frame is tightly clamped by the hydraulic cylinder. When uncrushable objects like metal blocks fall into the crusher, the moving cone of the single cylinder is lifted by the bottom hydraulic piston, which serves to adjust the discharge opening, protect against iron, and repeatedly lift to clear blocked ore.

Technical Specifications

SC-S Cone Crushers Series Single Cylinder Hydraulic Cone Crusher Specifications:

SC Fine Series Single Cylinder Hydraulic Cone Crusher Technical Specifications:
