Electric Jet-Suction Sand Pumping Boat

⑴Syringe suctionStyleSediment ExtractionBoats, also known asSuction-injection typeDredging vessels are designed according to the client's site requirements, and they utilizeHigh-pressure waterTreat soil and sandstoneRobust erosion and cutting capabilities, enableClayThe sand merges with water to increase the liquid concentration, and then a sand pump is used to suck in the mixture of sand and water and discharge it to the site.

⑵ Due toSyringe aspirationStyleSediment Extraction VesselWide application range, broad operational condition coverage, capable ofExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units are prioritizing their purchase and use.Suction jetDredging vessel.

(3) Suction DredgerIdeal for operations and deployments in the Yangtze River's B and C navigation zones, it also applies to other waterways, harbors, and lakes for dredging, excavation, reclamation, and reinforcing embankments. Additionally, it is suitable for the dredging and blowing fill of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy projects, and flood and drainage control.

This suction dredgerOverview

(1) This vessel is a general-purpose jet suction sand dredger, featuring an autonomous, steel, monocoque box-type structure. The bow is designed with a sand suction device, while the stern is equipped with a propeller for independent navigation. The sides of the hull are fitted with winches for anchoring stabilization.

(2) The sand extraction from this vessel is via the in-hull sand pump（Suction dredge pumpImpeller, pump housing, and liner are made of Cr26 material.Integrated with high-pressure jet pumps.Driven by an electric motor connected via a high elastic coupling.

(3) This vessel is equipped with a diesel generator set to power the entire ship, and it can also be connected to the user's on-site industrial power supply.

(4) Full-ship abrasive blasting and painting, equipped with night work lighting.

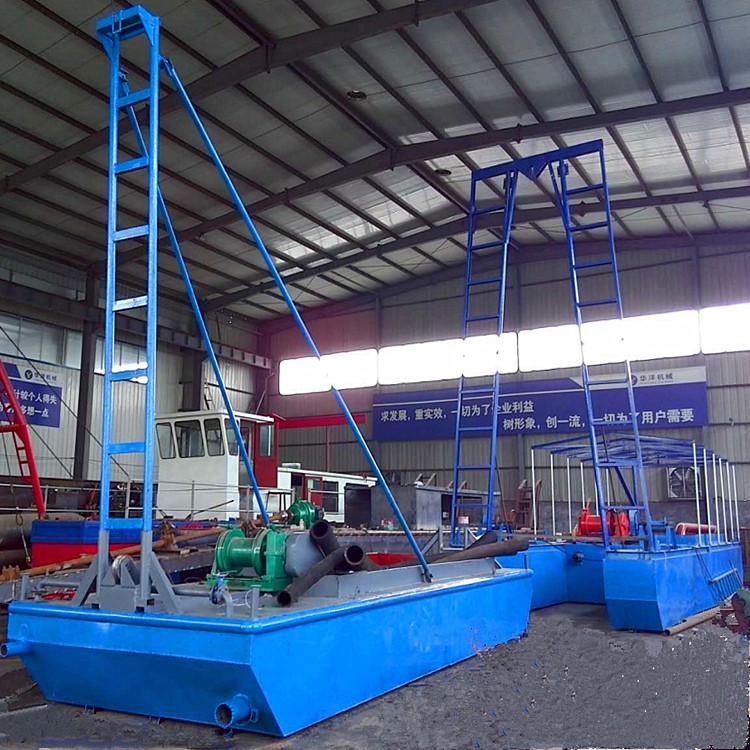

Manufacturing Scenario

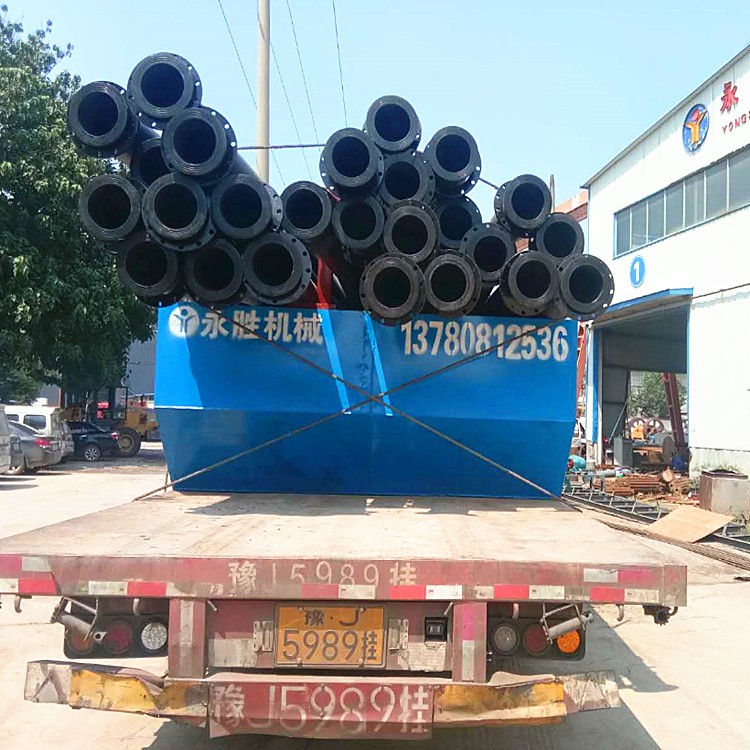

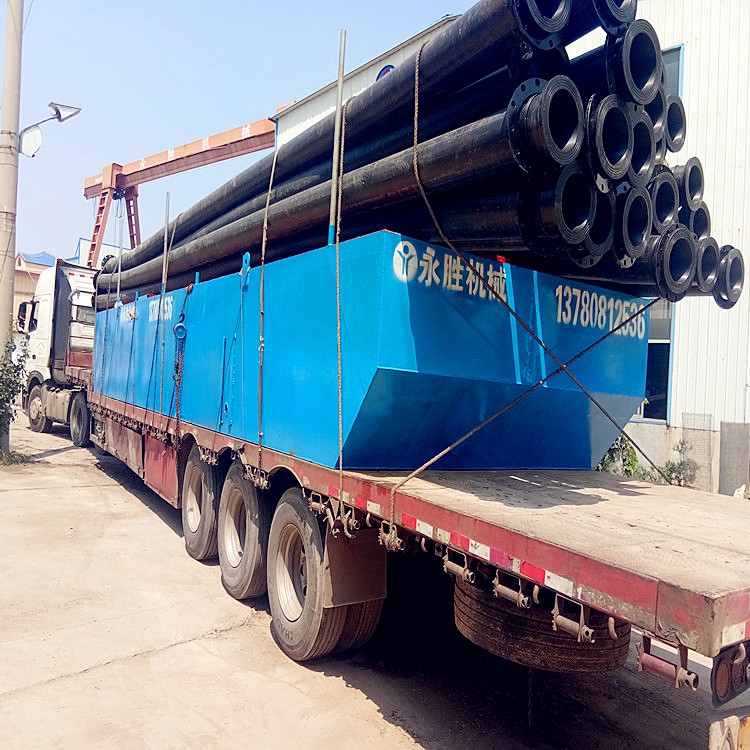

Hoisting and transportationScenario

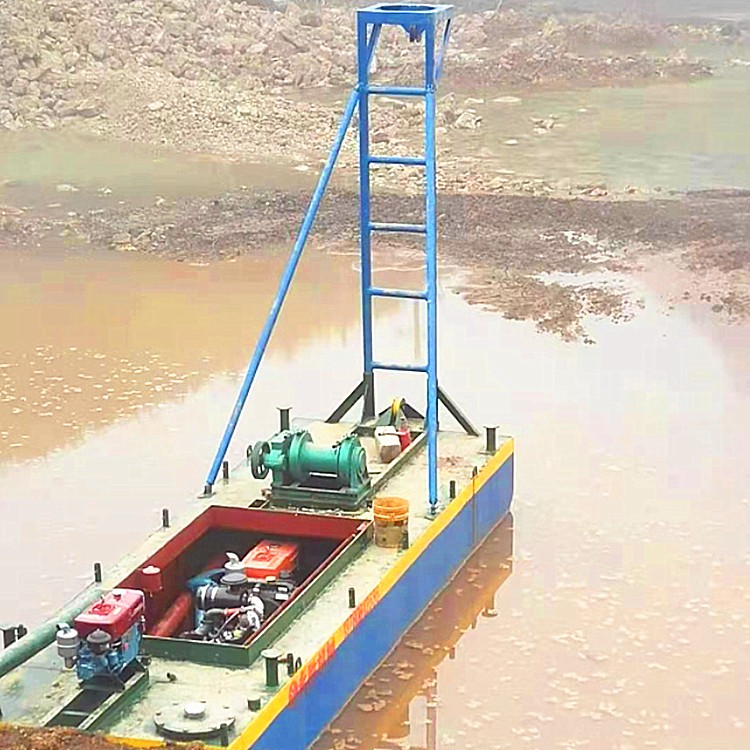

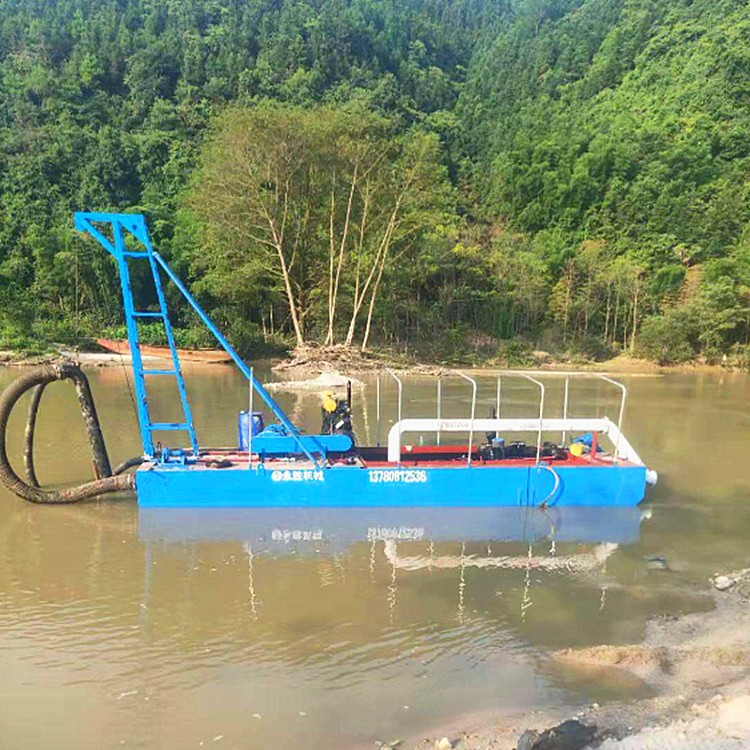

Construction Site

Configuration Parameters

After-sales service

1. Installation Adjustment

Upon arrival of the goods, we will dispatch a seasoned engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Motors, winches, dredge pumps, power distribution systems, and hulls come with a 12-month warranty. Paid services and spare parts are available post-warranty.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we will provide you with solutions. We ensure each product operates correctly through in-house actual operation before shipment.

3. Training

We will provide professional training and operation guides to help you solve problems.

(2) We guarantee the availability of spare parts and provide shipping within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the model numbers of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.
