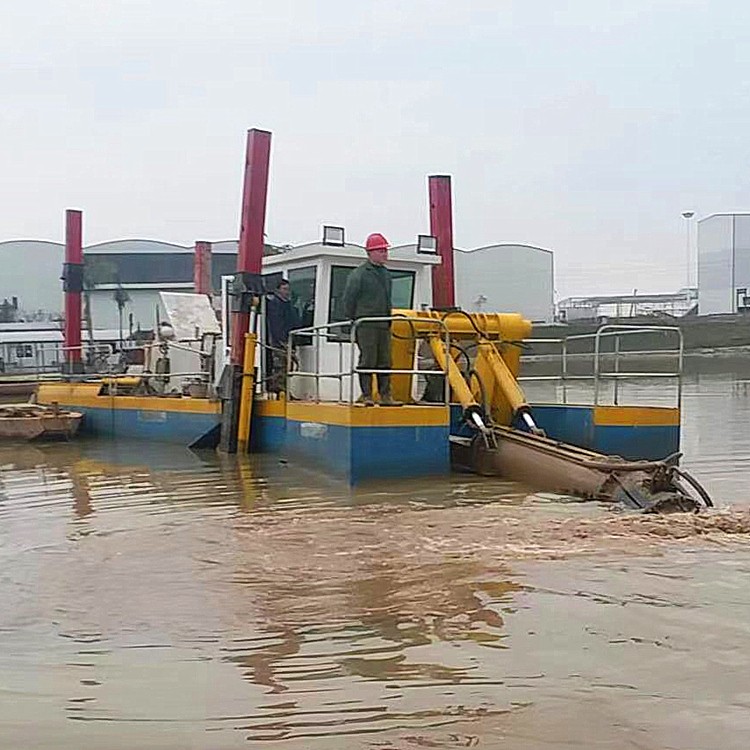

Bucket wheel excavator ship

⑴Dredgers are primarily categorized into cutter suction, bucket wheel, chain bucket, and jet suction types.Suction dredgerDredgingThe dredge ship, also known as a cutter suction dredger, is a model designed based on the customer's site. It utilizes a hydraulic cutter to chop or mix mud and sandstone, enablingSoilThe sand body merges with water, thereby increasing the liquid concentration, and then appliesSlurry PumpThe mixture of mud, sand, gravel, and water is suctioned and discharged to the site.

⑵ Due to the cutter suctionDredge ShipWide applicability to river courses and diverse operational conditions, capable of completing挖掘 (excavation), 输送 (conveying), 排出 (discharging), and 处理 (processing) in one go, enablingDredging and sediment removalContinuous process operation, thus gaining widespread application. This type of vessel has seen significant development, and construction units have prioritized the purchase and use of cutter suction dredgers.Excavating siltVessel.

(3) Screw-typeDredgingThe vessel is not only suitable for operations and deployments in the B and C navigation areas of the Yangtze River system, but also for other waterways, harbors, and lakes in projects such as dredging, excavation, reclamation, and reinforcing embankments. It is also applicable to medium and small reservoirs.DredgingDredging and reclamation, river transportation embankment construction, agricultural water conservancy projects, flood control and drainage, etc.

Excavate mudShip Overview

(1) This vessel is a non-self-propelled, steel-hulled, integrated monohull trimer with a diesel engine-powered full-hydraulic cutter suction dredger. The bow features a bridge架 with an opening, and the stern is equipped with two steel piles for positioning. The vessel's forward movement and lateral shift for dredging are achieved through the coordinated operation of the bow's left and right lateral movement winches and the stern's positioning steel piles. The entire vessel is controlled hydraulically.

(2) This ship's winch is driven by a low-speed, high-torque hydraulic motor through a gear box to power the winch.The shaft of the winch is made ofHigh qualityDual row spherical roller bearings for support.

(3) This vessel is equipped with an in-hull sludge pumpImpeller, pump casing, and liner are made of Cr26 material.Driven by a diesel engine connected to the marine gear box via a high-elastic coupling, the diesel engine is of Weichai Power.

(4) The ship's winch is hydraulically driven, with the side movement winch, bridge winch, and stern positioning cylinder operating in hydraulic mode.

(5) This vessel is equipped with two diesel engines; the main engine drives the sludge pump, while the auxiliary engine powers the entire ship's hydraulic system.

(6) Full ship sandblasting and painting, with night working lighting installed.

Manufacturing Scenario

Lifting equipmentScenario

Construction Site

Configuration Parameters

After-sales service

1. Installation and Adjustment

(1) Upon arrival of the goods, we will send a seasoned engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor trainees during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, slurry pumps, winches, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and parts are available after the warranty period.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

Training

We will provide professional training and operation guides to help you solve your issues.

(2) We guarantee the availability of spare parts and will ship within 24 hours.

(3) We offer a convenient parts delivery method, just let us know the nameplate identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference, ensuring users only need to access it.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products. Yongsheng Machinery wishes you great success. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best wishes in businessQi!
