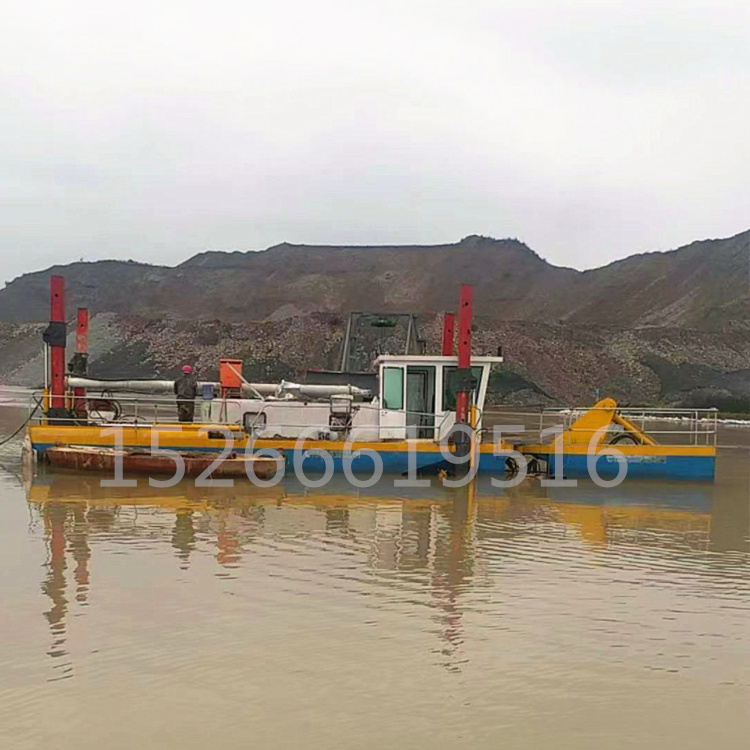

Four-pile positioning head-rotating dredger for sand extraction

⑴Syringe aspirationStyleSediment ExtractionShip, also known asSuction typeA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneRobust erosion and cutting capabilitiesPlease provide the Chinese content to be translated.MudThe sand merges with water to increase the liquid concentration, then the mixture of sand and water is suctioned and pumped to the site using a sand pump.

⑵ Due toSiphonStyleDredgingThe vessel has a broad scope of application and wide range of operating conditions, capable of accommodatingExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation of the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units are all prioritizing the purchase and use of these ships.Siphon-typeDredging vessel.

(3) Suction dredgingThe vessel is not only suitable for operations and deployments in the B and C navigation zones of the Yangtze River system but also for other waterways, harbors, and lakes in projects such as dredging, excavation, reclamation, and strengthening embankments. It is also applicable to the dredging and filling excavation of small and medium-sized reservoirs, river transport embankment construction, agricultural water conservancy projects, flood control, and drainage.

Four-pole positioning suction typeDredger Overview

(1)This vessel is a newly developed dredging equipment based on the construction of a standard jet suction dredger. It is an autonomous, steel-hulled, monocoque vessel, featuring a bow with a hydraulically adjustable telescopic wall. The wall head is equipped with an underwater slurry pump and a high-pressure water jet nozzle. Operated by a single crew member in the cabin, it can flexibly maneuver the telescopic and steering arms, allowing the underwater slurry pump to closely contact the extracted material. Utilizing the high-pressure water flow around the slurry pump to erode silt, it forms a slurry, which is then pumped and discharged to the designated site.

(2) The sand extraction from this vessel is via an underwater sludge pump.Impeller, pump housing, and liner are made of Cr26 material.Used in conjunction with high-pressure water pumps.

(3) The ship's bow thruster oscillation and positioning are fully hydraulically controlled

(4) This vessel is equipped with a four-point bow and stern mooring system, featuring a movable trolley with the stern steel piles, allowing for smooth translation to enhance production efficiency. The four-point mooring is as stable as Mount Tai.

(5) This vessel is equipped with a diesel engine for the entire ship's use.

(6) The entire vessel is blast-washed and painted, equipped with night work lighting.

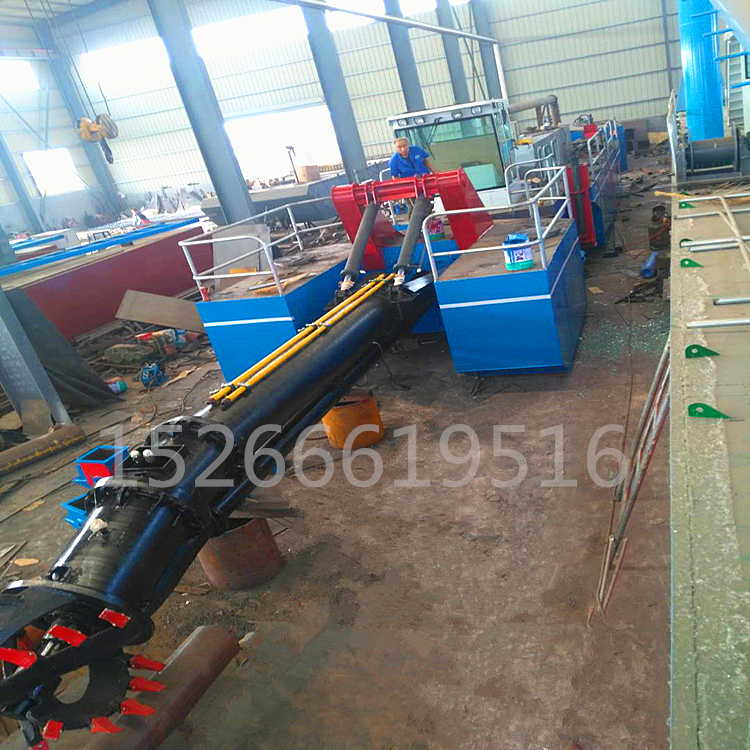

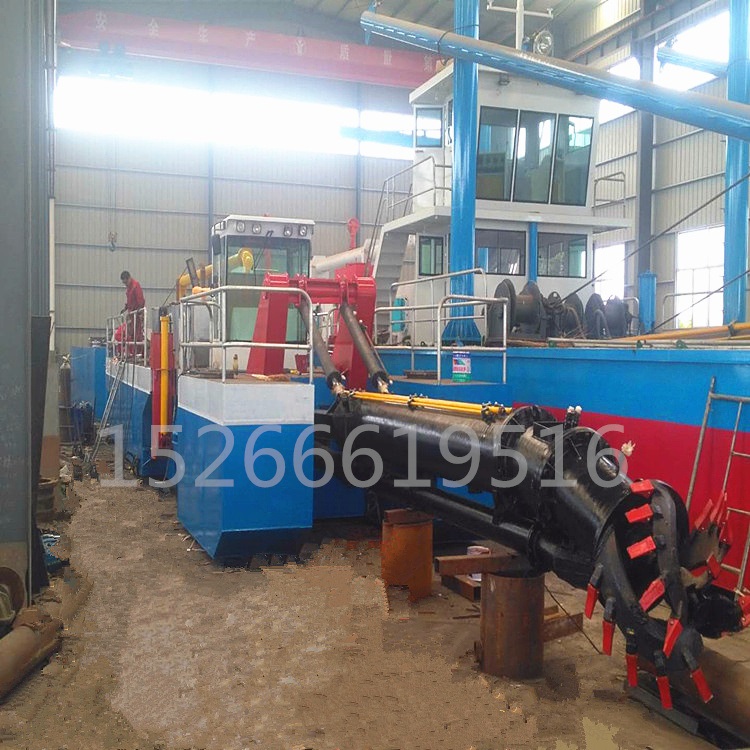

Manufacturing Scene

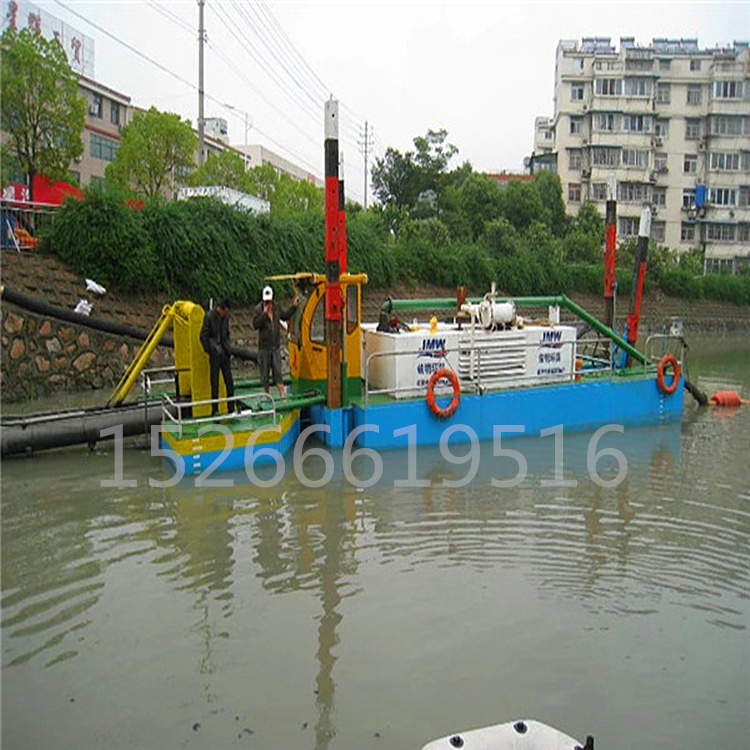

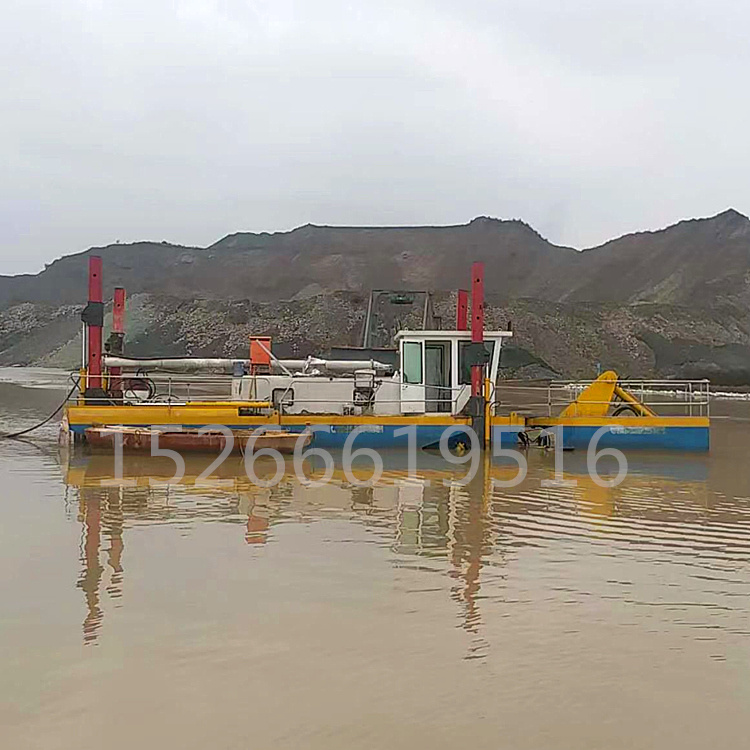

Construction Site

Configuration Parameters

After-sales service

1. Installation adjusted

Upon arrival of the goods, we will send one experienced engineer to the site to assist with installation and provide guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, slurry pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available after the warranty period.

(2) If your operators are inexperienced or making minor adjustments, simply report the issues to us, and we will provide you with solutions. Every product is tested for actual operation in our factory to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you resolve issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the identification mark of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver qualified brand products, and Yongsheng Machinery wishes you prosperity. If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.
