Suction dredge barge

⑴Syringe aspirationStyleSediment ExtractionVessel, also known asSuction-injection typeAn dredging vessel is a customized design based on the client's site requirements, utilizingHigh-pressure waterProcess soil and sandstoneRobust erosion and cutting capabilitiesPlease provide the Chinese content to be translated.MudThe sand merges with water, thereby increasing the liquid concentration, and then the mixture of sand and water is suctioned and transported to the site using a sand pump.

⑵ Due toSyringe extractionStyleDredging vesselWide applicability and broad operational conditions, capable ofExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units have prioritized purchasing and using them.Suction-injection typeDredging vessel.

(3) Suction dredge shipNot only suitable for operations and deployments in the B and C navigation areas of the Yangtze River system, but also applicable to other waterways, harbors, and lakes for dredging, excavation, reclamation, and embankment reinforcement projects. Additionally, it is suitable for the dredging and blowing filling excavation of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

Submerged Jet Sand Pumping VesselOverview

(1) This vessel is a general-purpose jet suction sand dredger. It is a non-self-propelled, steel, integral box-type structure. The bow is equipped with an open档falling sand dredging device. Two side-mounted winches are designed to work with the fixed winch at the stern to facilitate the positioning and construction of the vessel. A propulsion propeller is installed at the stern for the vessel's free navigation.

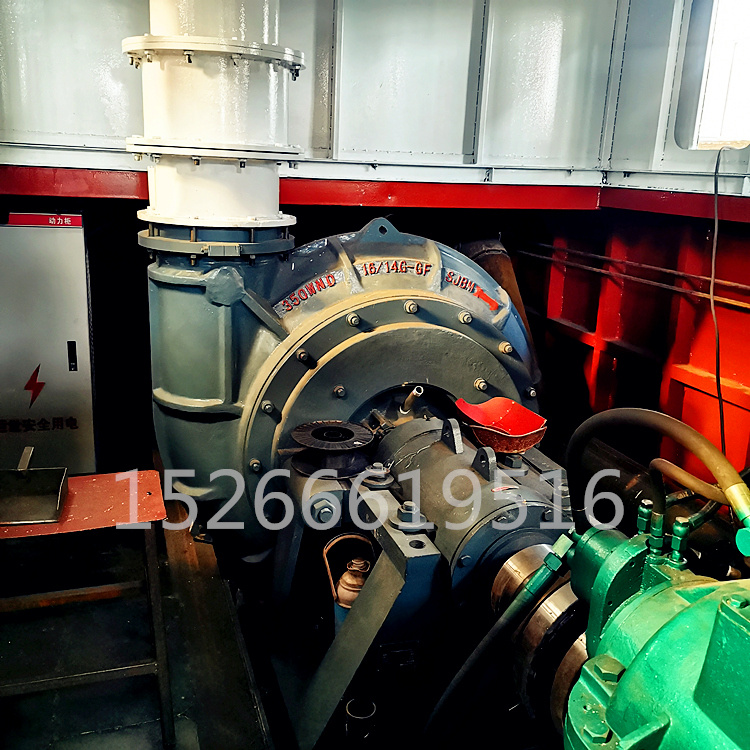

(2) This vessel extracts mud and sand using the inboard sludge pumpImpeller, pump housing, and liner are made of Cr26 material.Used in conjunction with high-pressure water pumps.Driven by a diesel engine via a high-flexible coupling to the marine gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine that drives a high-pressure water pump, and the high-pressure water pump uses a mid-open type supercharged centrifugal pump.

(4) A single-cylinder diesel engine-driven sand pump hoist.

(5) A diesel generator set provides electricity for the entire vessel.

(6) The entire vessel is blast-washed and painted, equipped with night work lighting.

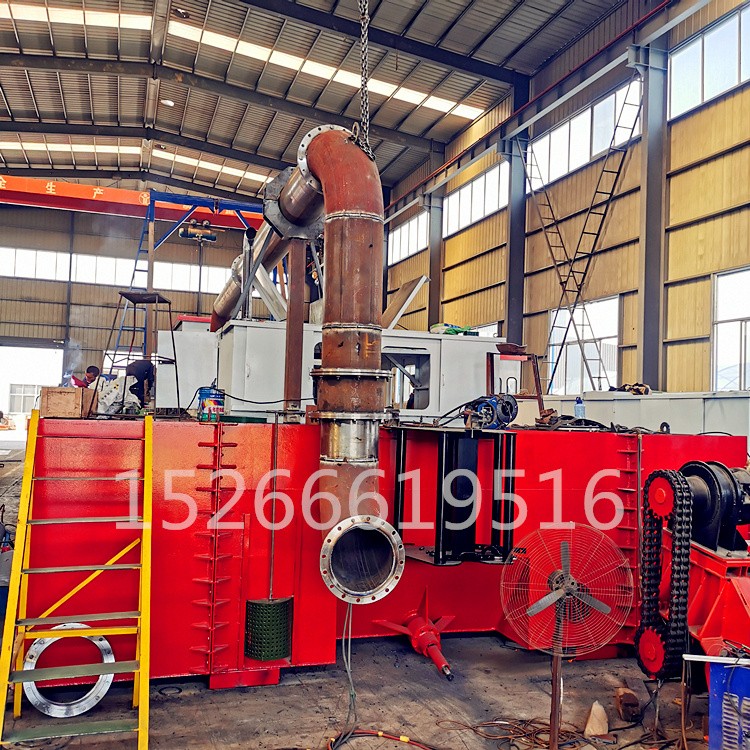

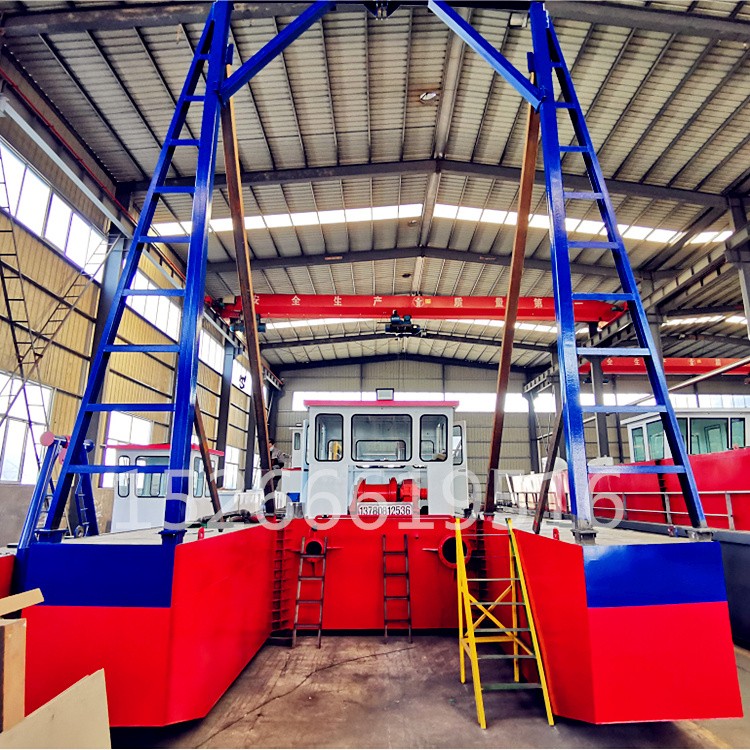

Manufacturing Scene

InstallationScenario

Construction Site

Configuration Parameters

After-sales service

1. Installation adjusted

After the goods arrive, we will send 1 experienced engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the equipment installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks suitable crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available after the warranty period.

(2) If your operators are inexperienced or need fine-tuning, just report the issues to us, and we'll provide you with solutions. Every product is tested for actual operation in our factory to ensure proper functioning.

Training

We will provide professional training and operation guides to help you solve any issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the label identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference, ensuring users only need to access them.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products, and Yongsheng Machinery wishes you prosperity. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regardsQi!
