Four-point positioning head-rotating dredger

⑴Suction shootingStyleDredgingShip, also known asSuction FeedA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneRobust erosion and cuttingNo Chinese content provided, please provide the text to be translated.MudThe sand merges with water, thereby increasing the liquid concentration, and then the mixture of sand and water is suctioned and transported to the site using a sand pump.

⑵ Due toSuctionStyleDredgingThe vessel has a broad applicability scope and wide operational condition range, capable of accommodatingExtractThe conveying, discharging, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units have prioritized their procurement and use.Suction-injectorDredging vessel.

(3) Suction dredgingThe vessel is suitable not only for operations and deployments in the B and C navigation areas of the Yangtze River system but also for projects such as dredging, excavation, reclamation, and embankment reinforcement in other waterways, harbors, and lakes. Additionally, it is applicable to the dredging and blowing filling excavation of small and medium-sized reservoirs, river transport embankments, agricultural water conservancy construction, flood control, and drainage.

Four-pier locator jet suctionDredging Vessel Overview

(1)This vessel is a new dredging equipment developed based on the construction of a standard jet suction dredger. It is an autonomous, steel-hulled, monocoque structure ship, equipped with a hydraulic steering telescopic wall at the bow. The wall head is fitted with an underwater slurry pump and a high-pressure water jet nozzle. One operator controls the cabin, allowing for flexible and maneuverable operation of the telescopic and steering arms. This ensures close contact between the underwater slurry pump and the extracted material, utilizing the high-pressure water flow around the pump to erode silt, forming a slurry, which is then pumped and discharged to the site.

(2) The vessel's mud removal is by an underwater slurry pumpImpeller, pump casing, and liner are made of Cr26 material.Integrated with high-pressure jet pumps.

(3) The ship's bow thruster movement and positioning are fully hydraulic controlled

(4) This vessel is equipped with a four-point bow and stern mooring system, featuring a movable trolley for the stern steel pile, allowing for smooth translation and enhanced production efficiency. The four-point mooring is as stable as Mount Tai.

(5) This vessel is equipped with a diesel engine for the entire ship's use.

(6) Entire vessel blasting and painting, with night working lighting installed.

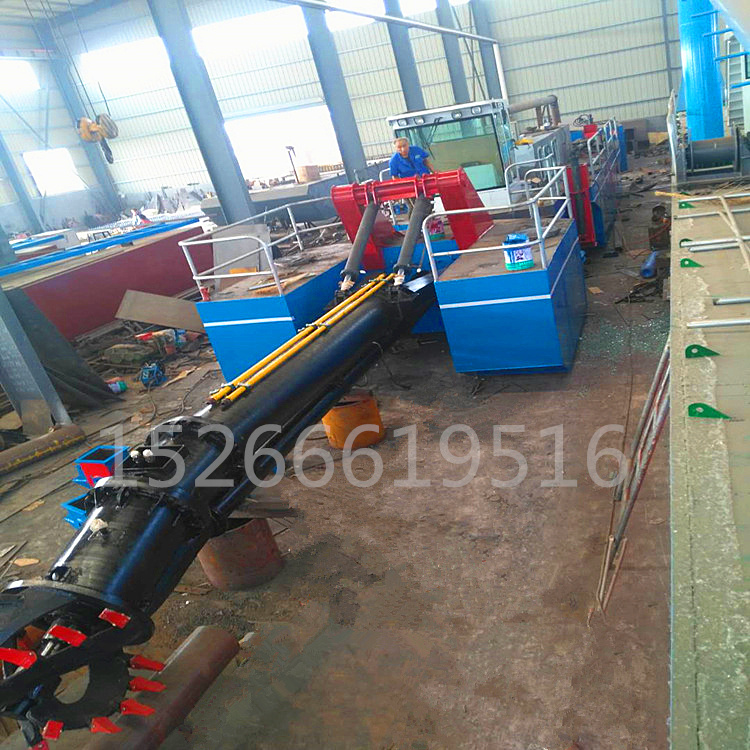

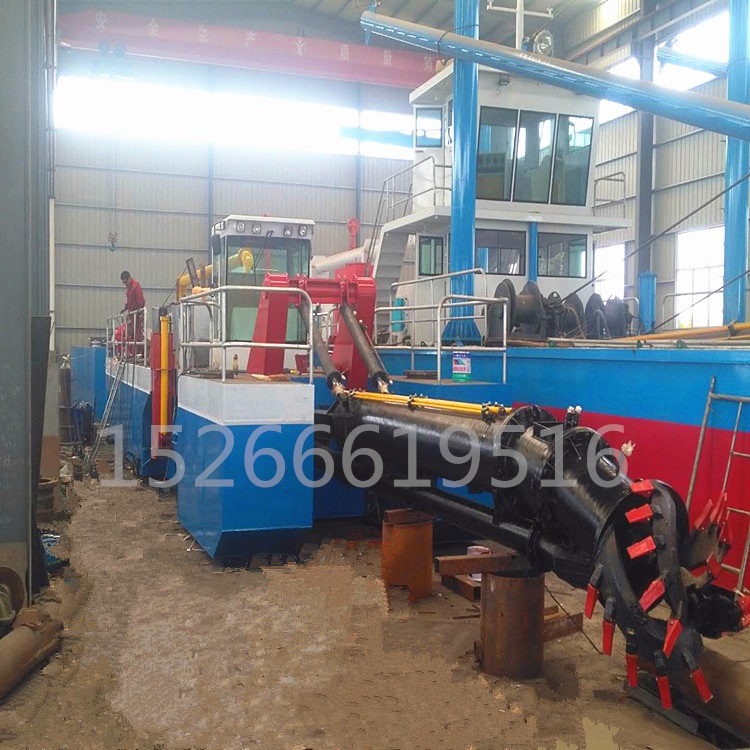

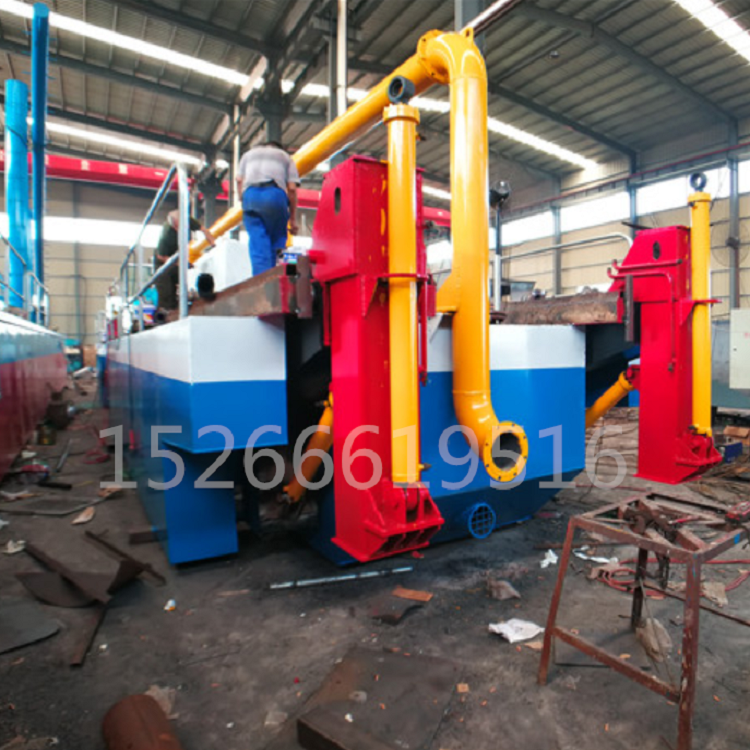

Manufacturing Scenario

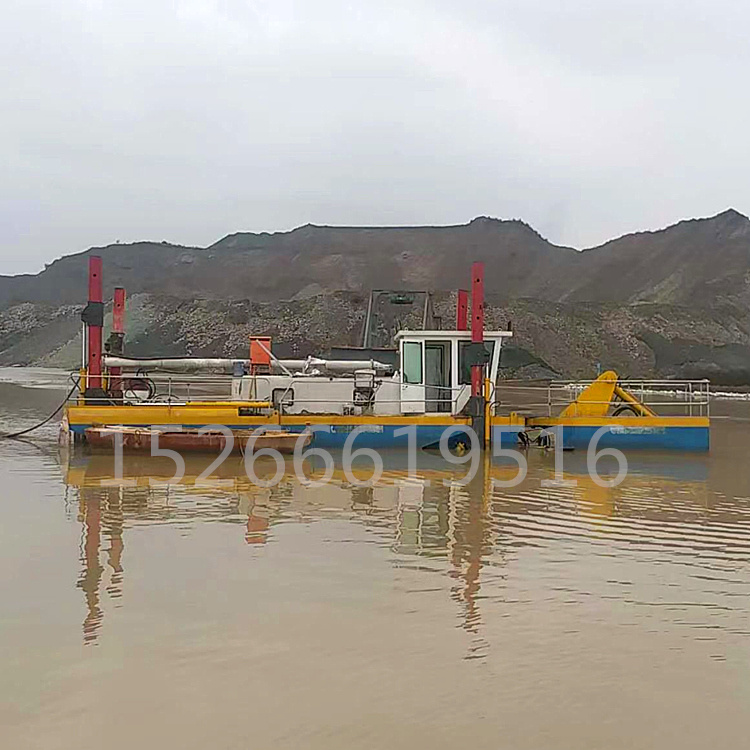

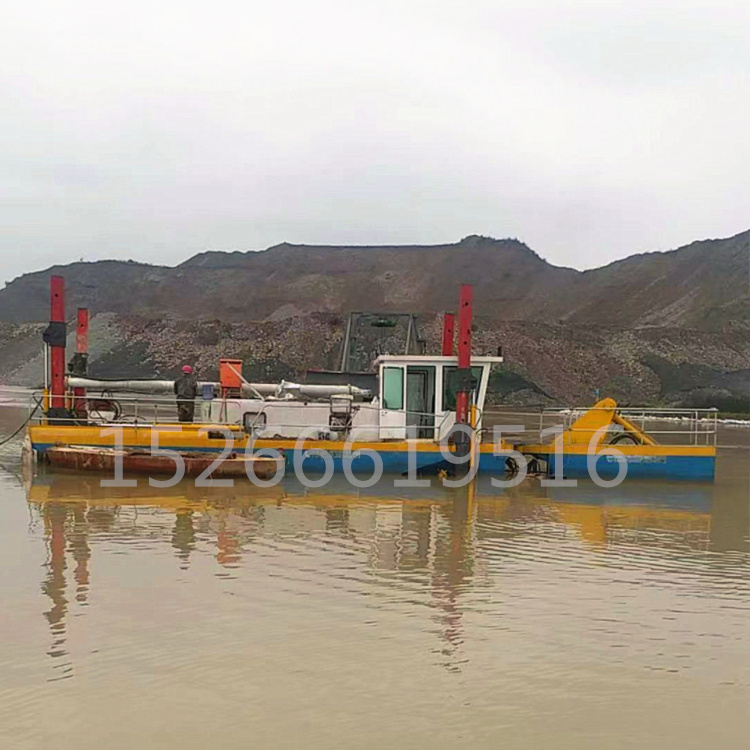

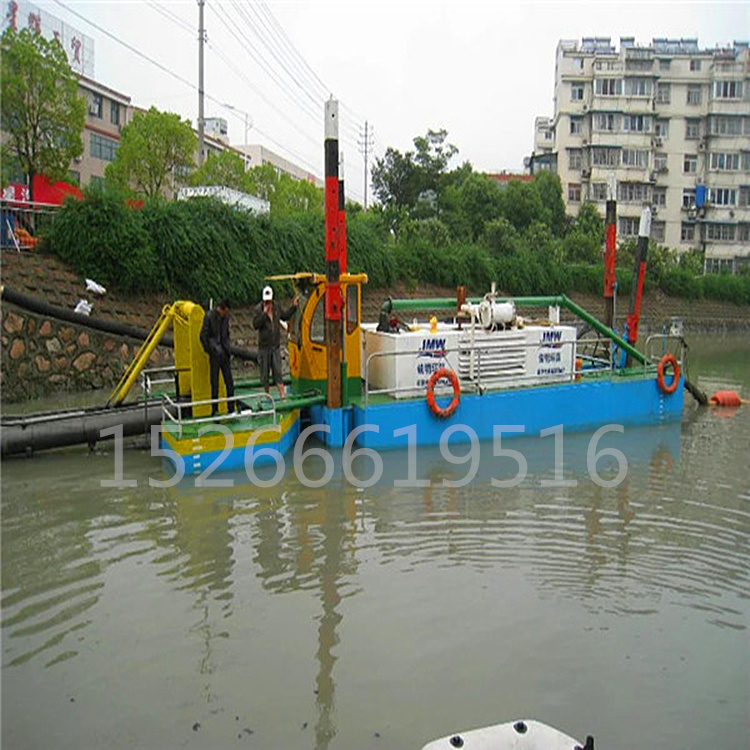

Construction Site

Configuration Parameters

After-sales service

1. Installation and adjustment

Upon arrival of the goods, we will dispatch a seasoned engineer to the site for installation assistance and guidance.

(2) Our dispatched installation engineers can mentor apprentice personnel during the equipment installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, slurry pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available post-warranty.

(2) If your operators are inexperienced or fine-tuning, just report the issues to us, and we'll provide solutions. Every product is run through actual in-house operations before leaving the factory to ensure it functions properly.

3. Training

We will provide professional training and operation guides to help you solve the issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the part number or label you need replaced.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver qualified brand products, and Yongsheng Machinery wishes you prosperity. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.
