EVA Waterproof Sheet

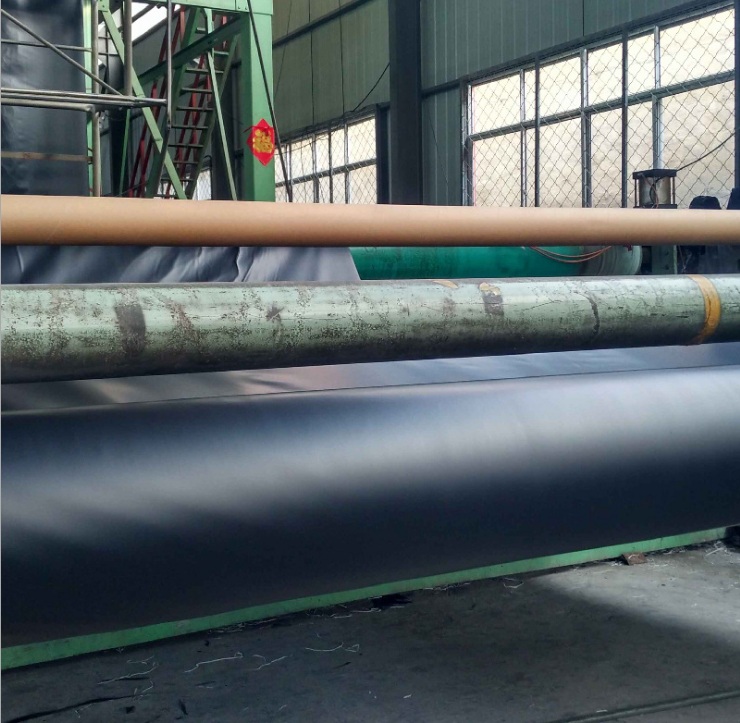

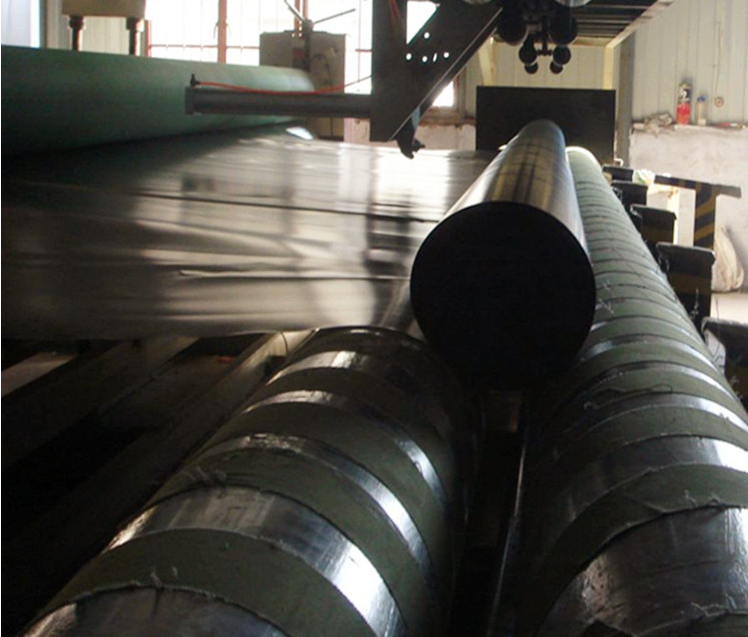

EVA (Ethylene-Vinyl Acetate Copolymer) high polymer waterproof sheet is a rollable sheet material made primarily from EVA, with the addition of appropriate modifiers, antioxidants, UV absorbers, colorants, fillers, plasticizers, etc. It undergoes a two-step extrusion and three-roll calendering process, followed by shaping, cooling, inspection, coiling, and packaging. According to GB 50108-2008 "Technical Code for Waterproofing of Underground Engineering," it is referred to as a plastic waterproofing board. Compared to PE, EVA, with the introduction of vinyl acetate (VA) monomers into its molecular chain, has reduced crystallinity, enhanced flexibility, impact resistance, compatibility with fillers, and thermal sealing properties. It also boasts good resistance to environmental stress cracking, excellent optical properties, resistance to chemical corrosion, and is non-toxic and moisture-proof. The construction process is simple, highly operable, and repairable. It has low requirements for the construction environment, making it particularly suitable for narrow spaces such as tunnels and pipelines, as well as environments with poor ventilation and water leakage.

Product Specifications

Thickness

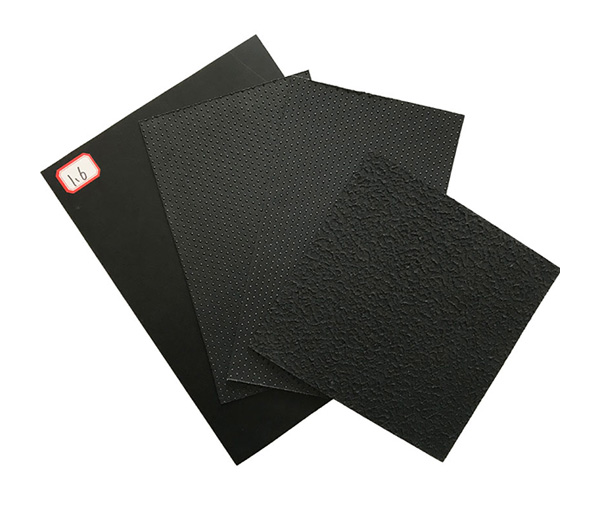

(1) Smooth Surface (JS2): 1.0mm, 1.2mm, 1.5mm, 2.0mm

(2) Spot Welding Type (DS2): 1.0mm, 1.2mm, 1.5mm, 2.0mm

(3) Composite (FS2): 1.0mm+200g/㎡, 1.0mm+300g/㎡, 1.2mm+300g/㎡, 1.5mm+300g/㎡

2. Widths of 2.0m, 3.0m, and 4.0m

3. Lengths of 10m, 25m, 50m

Application Usage

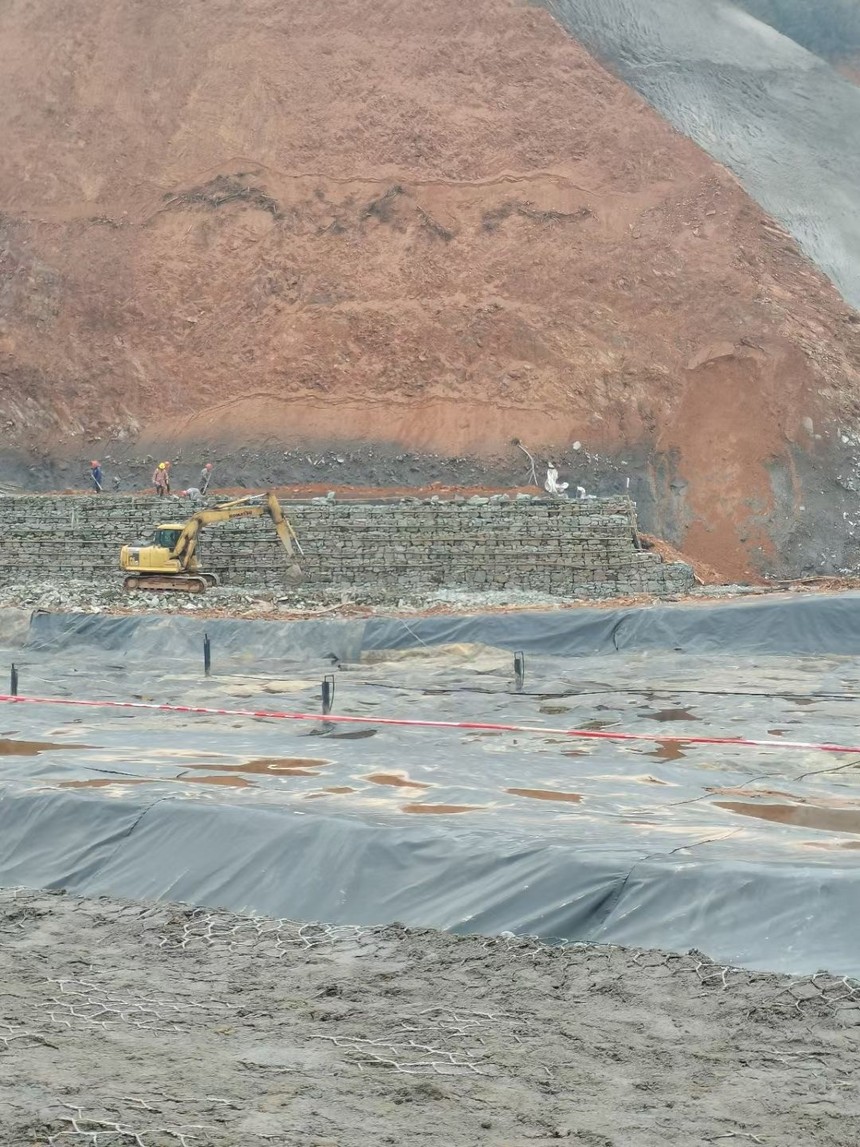

Waterproofing and moisture-proofing projects for subway engineering, railway and highway tunnels subjected to vibration and structural deformation; anti-seepage projects for hydropower stations, underground factories, highway tunnels, railway tunnels, air-raid shelters, etc.; various municipal engineering projects, garbage landfills, sewage treatment pools, civil defense projects, water-retaining dams, reservoirs, and more.

EVA waterproof boards meet civil engineering needs such as water seepage prevention, isolation, reinforcement, and crack reinforcement in water conservancy, municipal, construction, transportation, subway, tunnel, and construction projects. Due to their high molecular material composition and the addition of anti-aging agents in the production process, they can be used in unconventional temperature environments. These EVA waterproof boards are commonly used for water seepage treatment in embankments and drainage channels, as well as for anti-pollution treatment in waste disposal sites.
