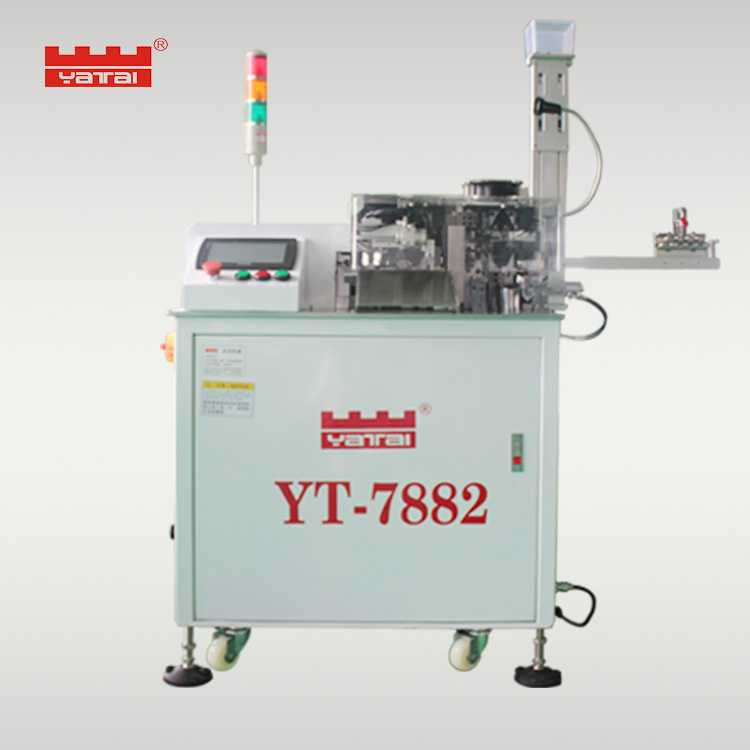

Fully Automatic Sleeve Line Soldering Machine

1

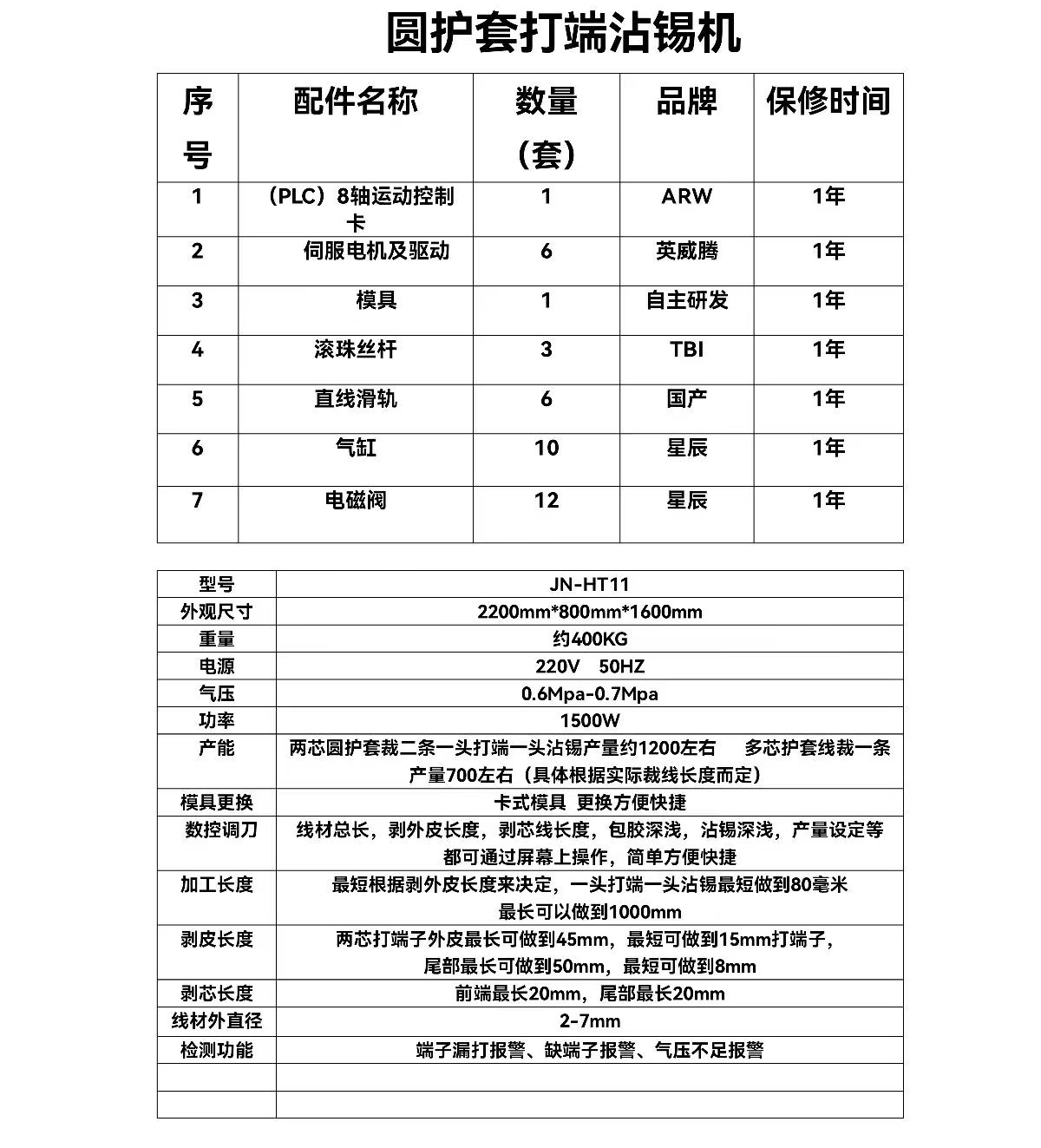

（PLC 8-axis motion control card

1

ARW

1 year

2

Servo motors and drives

6

Inwinco

1 year

3

Mold

1

Self-developed

1 year

4

Ball screw

3

TBI

1 year

5

Linear Guide Track

6

Domestic-made

1 year

6

Cylinder

10

Starlight

1 year

7

Electromagnetic Valve

12

Starlight

1 year

Power Supply

AC220V/50HZ

Body Dimensions

2200mm X 800mm X 1600mm

Airframe Weight

About400kg

Pressure

0.6Mpa-0.7Mpa

Power

1500W

Production Capacity

Two-core round sleeve, cut into two, one end crimped and the other tinned, yield approximatelyApprox. 1200 units of multicore jacketed wire cut to order, with an approximate yield of 700 units (actual cut length varies).

Mold Replacement

Card mold replacement is convenient and quick.

CNC Tool Setting

Total wire length, jacket剥皮length, core wire剥芯length, insulation depth, soldering depth, production setting, etc. can all be adjusted through screen operations, simple, convenient, and quick.

Processed Length

The length is determined by the剥皮 length, with one end sealed and the other end soldered short.80mm，Length can be achieved1000mm

Skinning Length

Two-core crimping sleeve, the outer skin length can be up to45mm, can be as short as 15mm for crimping terminals.

Tail length can be customized50mm, with a minimum of 8mm for the short sizes

Core Length

Front-end length20mm, tail length 20mm

Outer Diameter of Wire：

2-7mm

InspectionFeature：

Terminal mis-punching alarm, missing terminal alarm, insufficient pressure alarm
