Features Description
Microcontroller-Based Self-Developed Motion Control Board
4.3-inch full-touch LCD display
Low-noise mixed-type segmented motor driver
Material wire length error one-click correction
Unique smooth design
Parameter Description

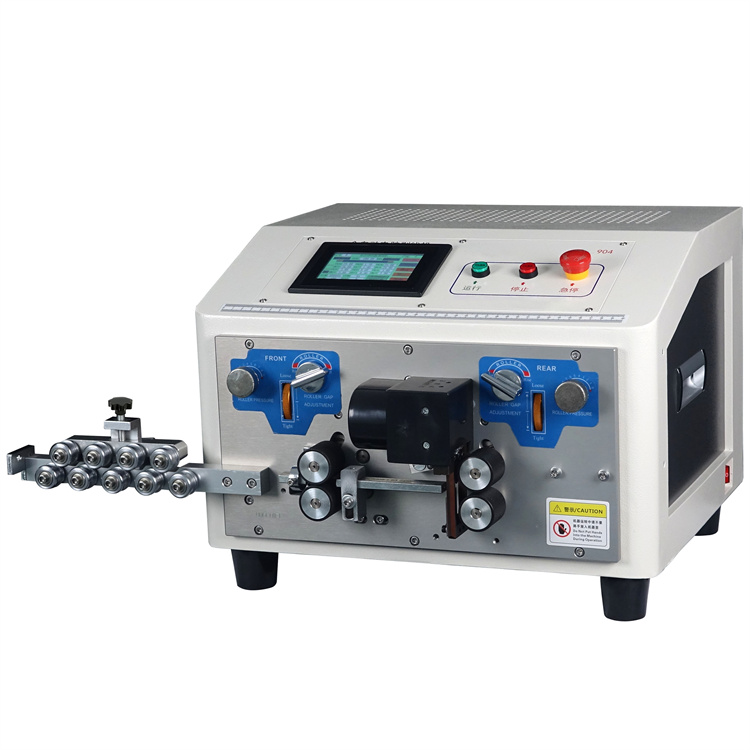

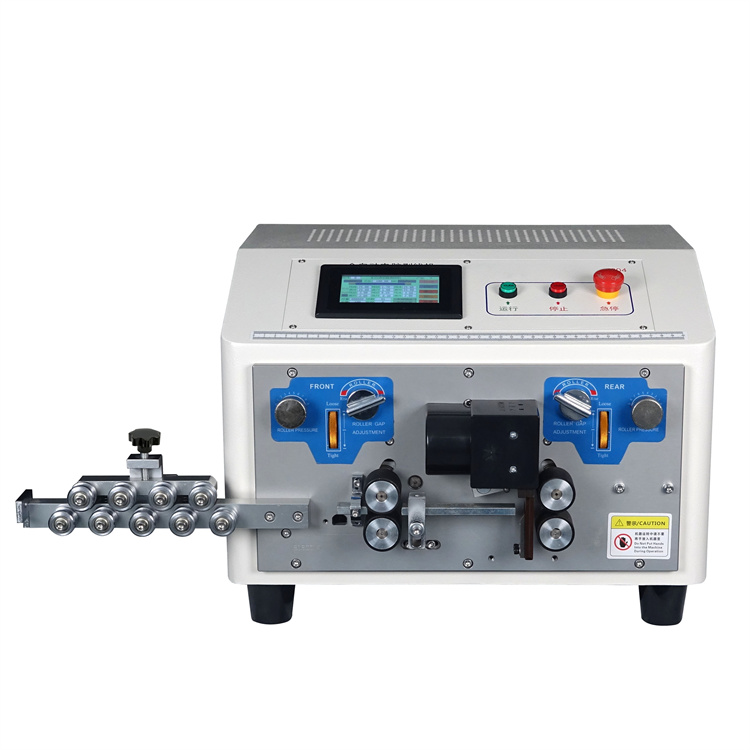

Model | YT-904 | Feature | Cable cutting、Double-end peeling、Midsection skinning |
Power Supply | AC220V50/60HZ | Cutting Line Core | 2*（0.3-2.0mm2） |
Body dimensions | 470mm*450mm*350mm | Cutting Length | 0.1mm-99999.9mm |
Airframe weight | 33kg | ShellLength | 剥头 - Head剥0.1-250mm、De-tail0.1-70mm |
Blade Material | Imported Tungsten Steel/High-speed steel | Core Length | Dehead0.1-30mmDe-tail0.1-30mm |
Power | 680W | Chinese剥段数 | Customizable |
剥线精度: Striping Accuracy | Silent Mixed-Step Stepper Motor0.01mm | Note Feature | Automatic feeding/Out of line、Timer start、Pulse adjustment |
Production Capacity | 50/100/500/1000mm(1900/1870/1550/1300Tube per hour | ||
