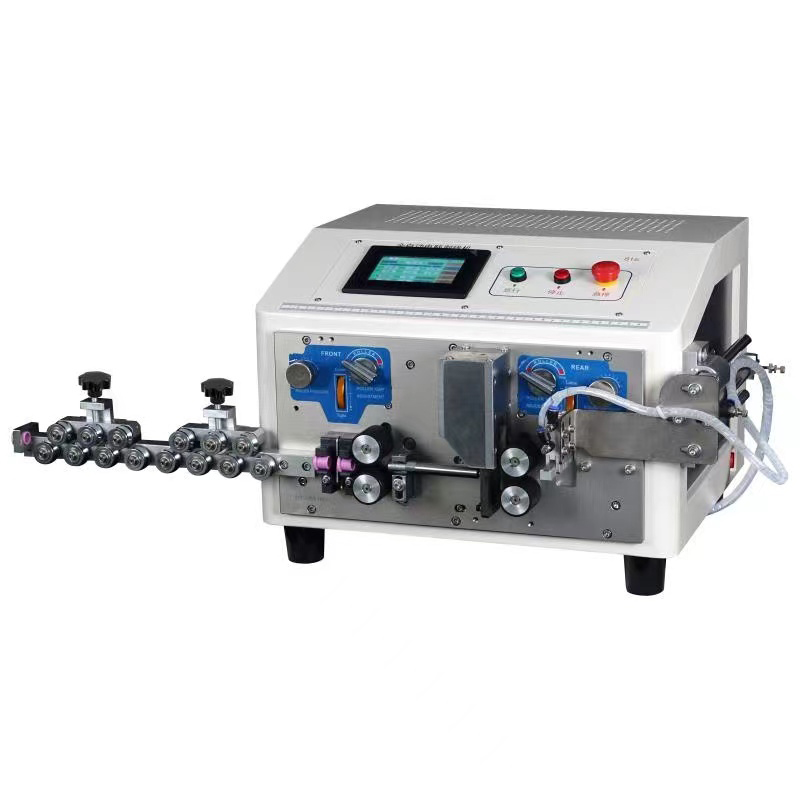

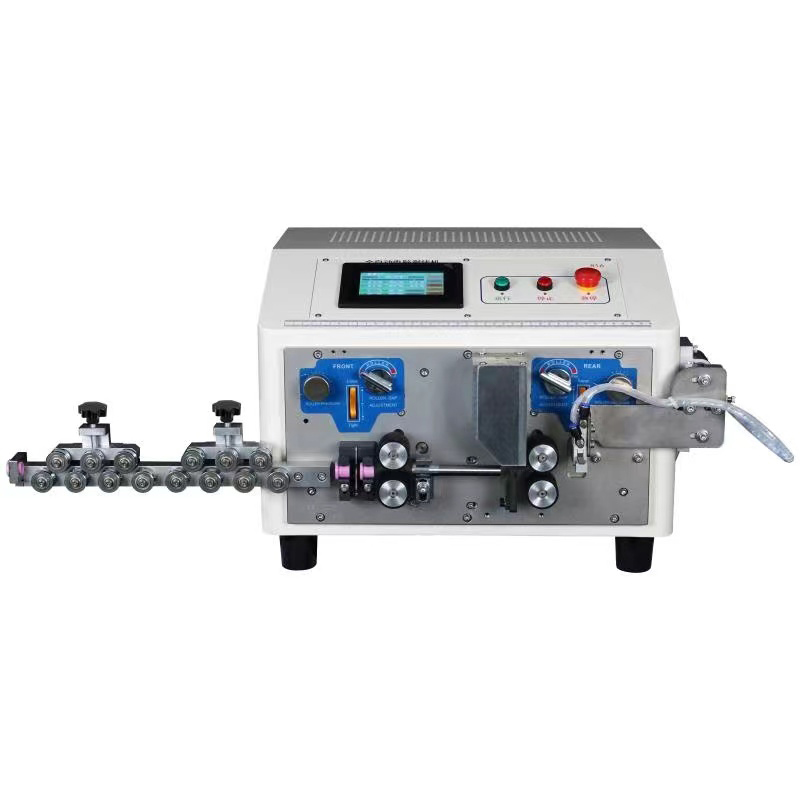

Features Description
Microcontroller-based self-developed motion control board
Full-touch 4.3-inch LCD screen
Low-noise mixed-type segmented motor driver
One-click correction for wire rod length deviation
Unique smooth design
Parameter Description
Model | YT-816 | Feature | Cable cutting、Double-end stripping、Mid-section peeled |
Power Supply | AC220V50/60HZ | Cutting Line Core | 0.1-16mm2AWG30#-8# |
Body Dimensions | 470mm*450mm*350mm | Cutting Length | 0.1mm-99999.9mm |
Airframe Weight | 36.5kg | 剥 (Peel)SkinLength | Deheading0.1-250mm、Dehead0.1-70mm |
Blade Material | Imported Tungsten Steel/High-speed steel | Chinese剥段数 | 16Section ( customizable ) |
Power | 880W | Note Function | Automatic feeding/Out of line、Scheduled Start、Pulse adjustment |
Stripping Precision | Silent Mixed-Step Stepper Motor0.01mm | ||
Capacity | 50/100/500/1000mm(1800/1700/1400/1120Tube per hour | ||
