Model: ZJX-2X1600
ZJX-2X1600Automatic high-speed longitudinal slitting machine, mainlyUsed for cutting metal coils, such as cold and hot rolled steel, stainless steel, copper, aluminum, galvanized, color coated, etc., the production line is mainly used by steel processing factories, rolling steel factories, electrical industries, automotive, stamping parts, etc.Fully Automatic High-Speed Longitudinal Shearing LineComposed of operations such as opening rolls, material positioning, strip cutting, and winding (rewinding), this is a fully automatic, high-speed, high-capacity longitudinal cutting line.
Model and Technical Parameters of the Engine Set
Model | ZJX-3X650 | ZJX-2x1250 | ZJX3X1600 | ZJX-4X1600 | ZJX-6X1600 |
Material | Cold rolled, hot rolled, stainless steel coils, galvanized coils, color coated coils, aluminum coils, pickled coils, copper coils | ||||
Thickness | 0.3-3 mm | 0.2-2 mm | 0.3-3 mm | 0.5-4 mm | 0.5-6mm |
Width | 150-650 | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
Roll Weight | 5T/10T | 10T/15T | 15T/20T | 15T/20T/25T | 20T/25T |
Line speed | 100/120m/min | 120/150m/min | 120/150m/min | 100/120m/min | 60/80/100m/min |
Number of Cut Strips | 6-15Thread | 6-20Stripe | 6-25Thread | 6-30Line | 6-30Line |
Cutting Precision | ±0.05mm | ±0.05mm | ±0.05mm | ±0.1mm | ±0.1mm |

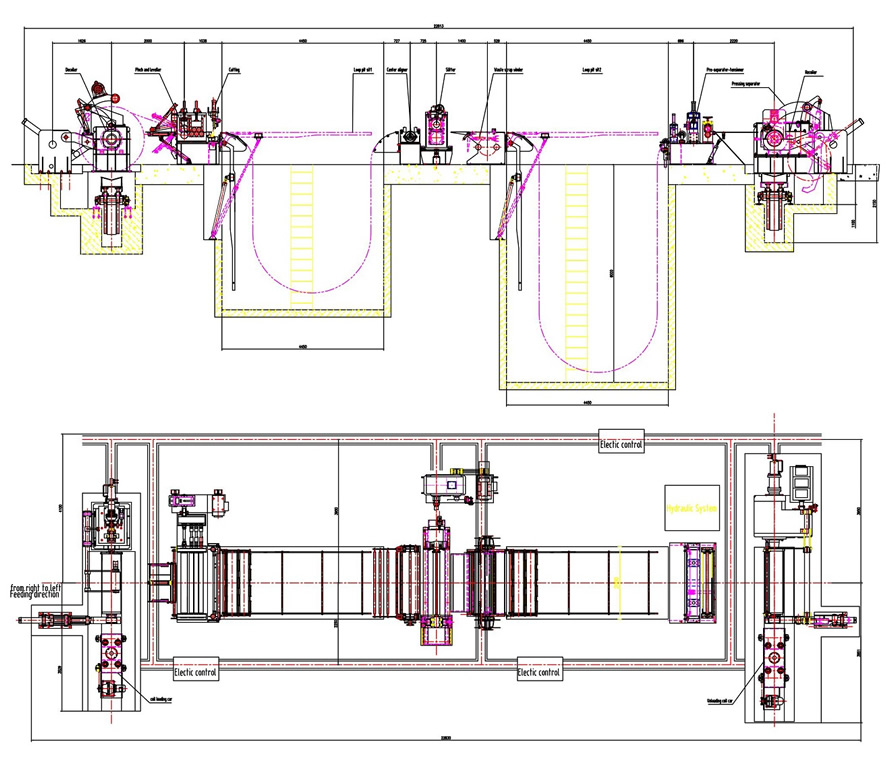

Production line layout reference (left for raw material entry)
Left to right: material feeding trolley + hydraulic uncoiler ------ tension release + head cutting shears ------ Loop 1 ------ left and right guide positions ------ longitudinal cutting machine + edge slitter ------ Loop 2 ------ tension station ------ winding machine + unloading trolley
