OMT-1800AF Autofocus Microscope

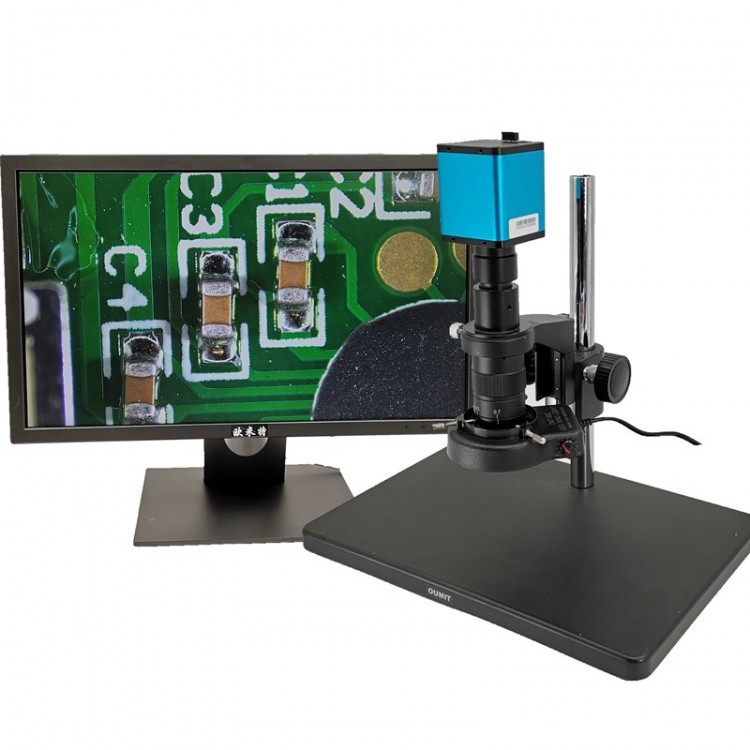

OMT-1800AFOur series of automatic focusing video microscopes is a new type of automatic focusing microscope we have launched, featuring an integrated automatic focusing system.USBThe interface can connect to a mouse for more convenient operation. This product is suitable for industrial testing, medical observation, scientific research, and automated systems.
Telecentric optical lens design, superior optical performance, low distortion, sharp imaging
2. High-definition HDMI digital signal camera, 60 frames per second frequency, adjustable with a mouse, offering high and stable image transmission speed.
3. Auto-focus for clear observation at all times, eliminating unnecessary operational steps.
4. 21-23 inch high-definition HDMI 1920*1080 color monitors
5. Integrated one-piece design, easy to carry, and simpler to operate.
OMT-1800AFSeries Automatic Focusing Microscope Configuration Parameters:
Model: | OMT-1800AF |
Automatic Focus | Region Focus Customization Supported |
Optical Magnification Ratio | 0.7-4.5X |
Standard Magnification Ratio | 30-180X |
Optional magnification range | 15X-360X |
Image Sensor | 1/2.8ColorfulCOMS |
Pixel | 2 million |
OSD | All DigitalUIDesignMouse Operation |
Power Supply | DC5V |
Data Interface | HDMI |
Frame Rate Display | 60FPS |
Scanning method | Line-by-line scanning |
White Balance | Manual/Automatic |
Exposure | Manual/Automatic |
Underlined | Line4 bars, vertical 4 bars, color and position adjustable |
Field of View | 23mm-2.7mm |
Light Source | OMT-60CAdjustableLEDLight Source |
Monitor | 22-inch Dell Monitor |
Configuration as follows:
Serial Number | Name | Quantity | Note | |
1 | Host Configuration | OMT-10A lens | 1 piece | |
OMT-918AF Industrial Camera | 1 piece | |||
5V Power Adapter | 1 piece | |||
2 | High-Definition Multimedia Interface (HDMI) Monitor | WithHDMI port21.5 inchesHigh-definition Monitor | 1 piece | |
Monitor Power SupplyThread | 1 piece | |||
HDMI High-Definition Signal Cable | 1 piece | |||
3 | Light Source | OMT-60C | 1 piece | |
