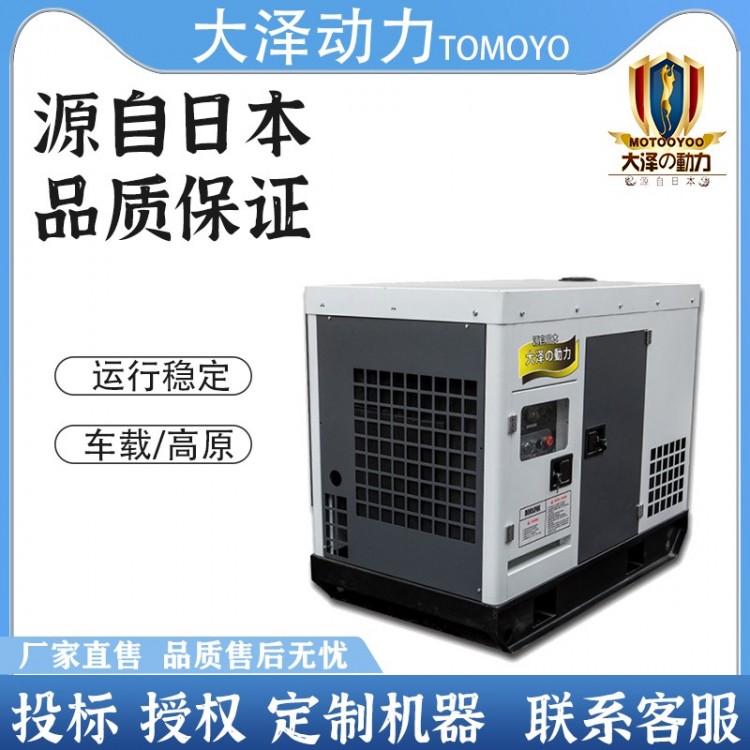

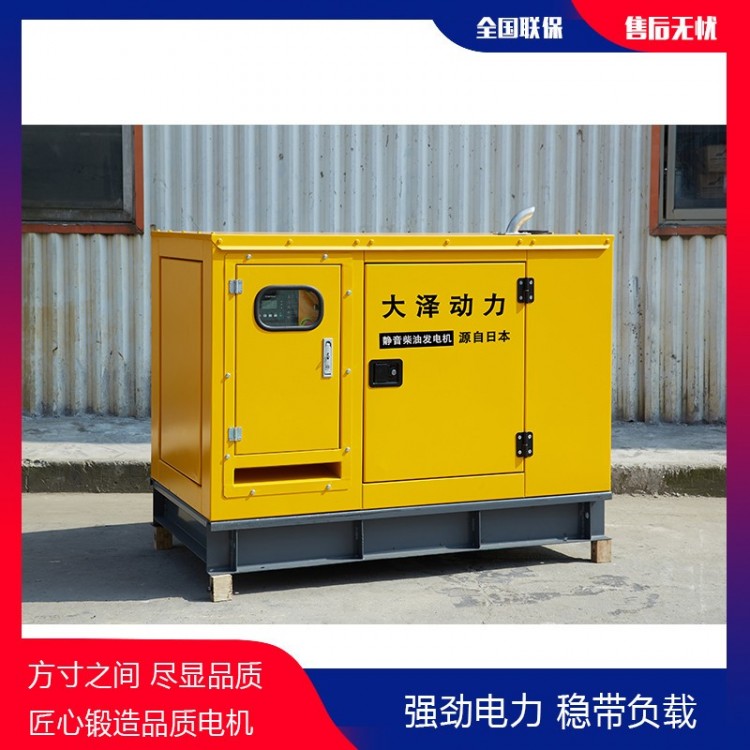

Fully Automatic 150KW Low Noise Diesel Generator

Automatic 150KW Low-Noise Diesel Generator  Engines are highly favored by customers for their powerful horsepower, superior performance, environmental friendliness, and user-friendly safety design. The design, production, and testing processes of Dazai's engine units comply with the regional standards of GB/T2820-97.
Feature Brief: In the event of power failure, the gasoline generator automatically starts to generate and supply electricity; upon power restoration, it automatically switches back to the municipal power supply, the generator shuts down automatically, and enters a pre-start status. The control system automatically detects and monitors signals such as water temperature, oil temperature, oil pressure, and speed of the gasoline generator. In case of a generator fault, an audible and visual alarm is triggered, and a series of protective measures are taken. If the gasoline generator fails to start three times, an audible and visual alarm is emitted.
Excellent starting performance, stable voltage, smooth operation, low emissions, low noise, easy maintenance, good economy, and good high-altitude adaptability. The unit features a compact structure, high power reserve, high reliability, and excellent speed regulation capabilities. The discovery of electricity has also been achieved through the long-term research and discovery of our scientists, bringing electricity to benefit humanity today. Although we have access to municipal electricity, it is often in short supply. In such situations, we opt for gasoline generators to provide a continuous power supply.

TO150000ETDetailed specifications

I. Technical Specifications

Rated Output：  150KVA

BackupPower：  160KVA

Rated Frequency： 50Hz

Rated Voltage： 400V

Rated Speed： 1500

Generator Type:Style

Startup Method:Electric Start

Please provide the Chinese content you would like translated into American English.Quantity: Three-phase

Power Factor： COSΦ = 0.8 (lagging)

Adjustment method:AVR (Automatic Voltage Regulator)

Steady-state voltage regulation:(%):≤±0.5

Voltage Fluctuations：  (%):≤±0.5

Sudden Load Voltage Change%： ≤±2

Steady-state Frequency Adjustment%： ≤±2

Engine Technical Specifications:

Power Model:  TO15000ET

Cylinder arrangement: Inline

Cylinder Quantity:6-cylinder

Cooling Method:Forced closed-loop water cooling system

Fuel Supply Method:Direct喷射燃烧式

Speed regulation method:Mechanical speed regulator

Silencer Device: Industrial Equipment

Inlet method:Turbocharged

Engine Oil Model:  SAE 10W-30 (or CD)

Fuel Model:  0# -10#Diesel

Diesel Fuel Tank  200L

Engine fuel consumption:224g/kw•h

Motor Technical Specifications:

Rated Power:  150KW

Wiring method:Three-phase four-wire, Y connection

Ingress Protection Rating:  IP22

Insulation Grade:H Level

Motor Type: Brushless Motor

Other Configurations:

Dimensions of the assemblyL×B×H）：3100*1200*1570mm
Engineered Weightkg）：1700/1850

DaZe Power's generators are priced lower, with stable performance, based on the same model and power output. We have availability. Please feel free to contact us at any time. DaZe generators are of high quality, with low fuel consumption, low noise, and high output power. Their stability, economy, power, durability, and environmental safety are well-received by users worldwide, and come with a national three-year warranty. DaZe Power's diesel engines are widely used in aviation, vehicles, ships, construction machinery, and generator sets. They are recognized for their compact size, light weight, strong ability to withstand sudden loads, low noise, and cost-effectiveness. Established in 2102, DaZe Power has long adhered to its three core values—quality, ...
