Marine Generator

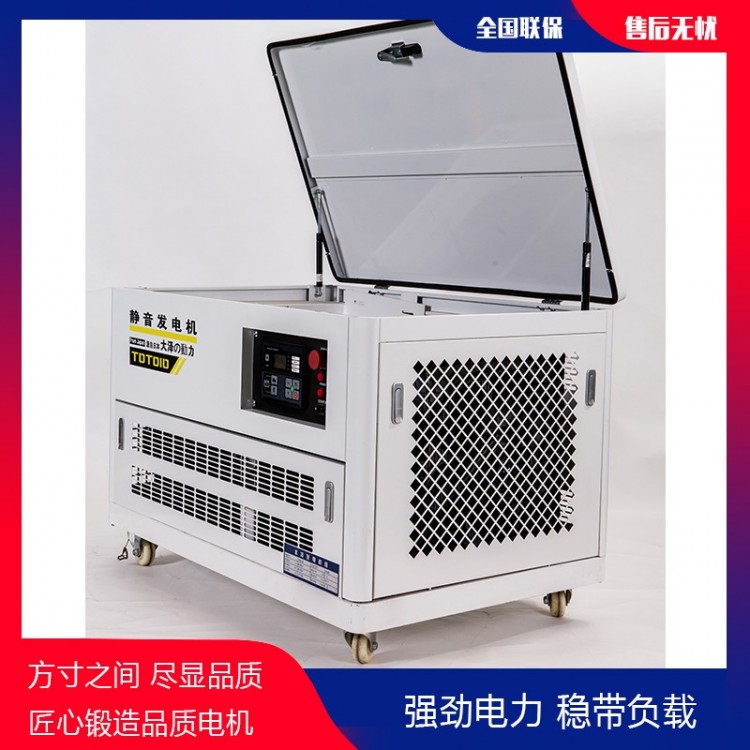

40-kilowatt compact gasoline generator marine generator

Gasoline Generator Set Performance: Excellent intake and combustion efficiency with OHV* type intake and exhaust valve mechanism; easy-starting mechanical automatic pressure reduction device, load change responsive speed regulator; stable transistor magneto ignition system; superior bearing performance, low-vibration aluminum connecting rods; automatic voltage regulator, automatically maintains voltage stability, ensuring a smooth power supply.

Model:TOTO40

Generator specifications

Rated Power:40KW

Standby Power:41KW

Rated Frequency:50HZ

Rated Voltage:220/380V

Power Factor:0.8/0.9/1.0

Please provide the Chinese content to be translated.    Quantity: Single-phase / Three-phase

Generator Type: **

Engine specifications

Engine Model:TO-491Q-ME

Fuel Consumption:395g/kw.h

Fuel Tank Capacity:37L

Lubricant Capacity:4

Engine Displacement:2.23L

Cylinder Quantity: Inline  Four-cylinder Water-cooled8 valves

Power * Load Protection: Provided

Insulation Grade:H

Startup Method: Electric StartOptional Fully Automatic

Fuel Model:90+ Octane Gasoline

Cooling Method: Water Cooling

Rated Speed:3000r/min

Cylinder Structure: 4-Cylinder Water-Cooled Engine

Oil Model:SF grade motor oil, Summer 15w/30, Winter 10w/30

Complete Machine Specifications

Office Hours:8-12H

Noisedb）7M：68-78

Fuel Gauge Available

Complete Unit with Protection: Available

Automatic Overload Protection: Available

Voltage meter: Available

Output Indicator: On

Machine Weight:490/526kg

Dimensions:1480*780*1060mm

40kW Portable Gasoline Generator for Marine Use   Pre-launch Preparation:
Before each start-up of the generator set, place the unit on a level surface to check the oil level.
Insufficient engine oil can damage the engine, whereas too much oil can cause the engine to accelerate suddenly.
3. Our generator sets are equipped with a low oil pressure protection system. This system automatically shuts down the engine when the oil level drops below the lower limit, preventing accidents. It features easy start-up, compact structure, and high-temperature resistance. The loading capacity of the set can reach 50% or more, while the newly improved engine's loading capacity can reach up to 70%. The engine emissions comply with the European Stage 2 standard; the generator employs a low-impedance design, capable of withstanding significant load changes under non-linear load conditions and demonstrating excellent response characteristics; the sets with permanent magnet generators (PMG) excitation can provide triple the excitation for 10 seconds.
