50KW diesel generator for desert use

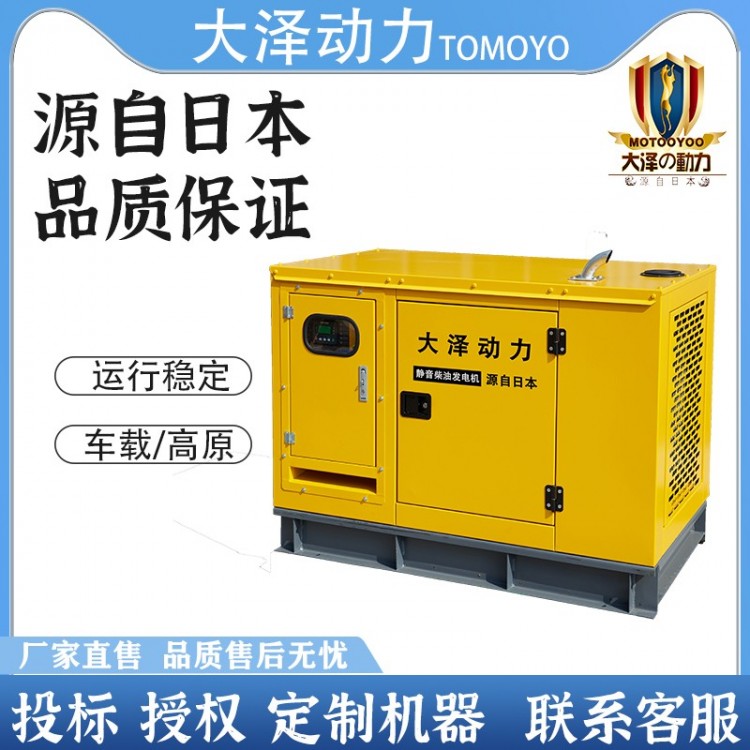

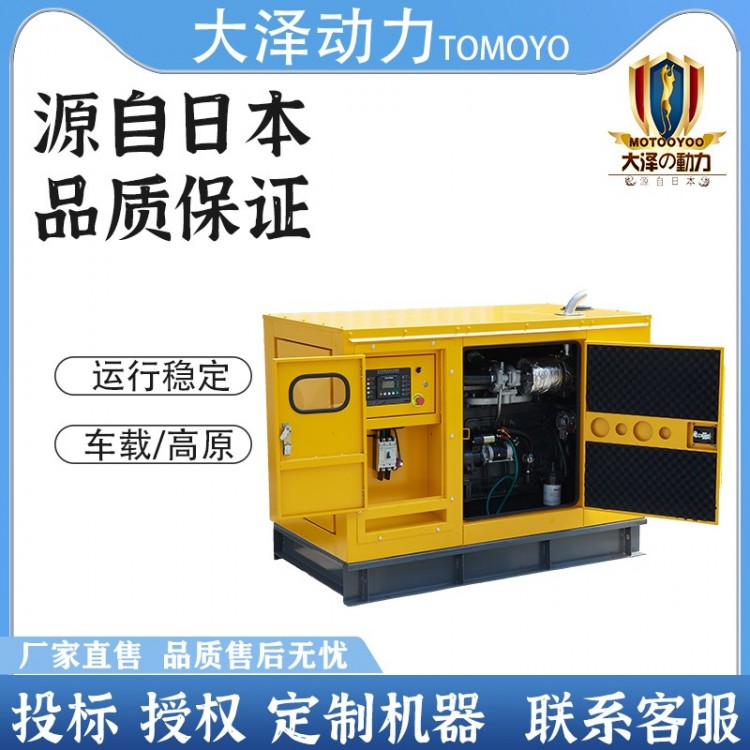

50KW Mobile Diesel Generator TrailerThe Dazai Power complete power unit typically consists of diesel engines, generators, control cabinets, fuel tanks, starting and control batteries, protective devices, and emergency cabinets. The unit can be mounted on a foundation for fixed positioning use or mounted on a trailer for mobility. The diesel generator set is a non-continuous operation power generation equipment; if it runs continuously for more than 12 hours, its output power will drop to approximately 90% of the rated power. Despite the lower power output, the diesel generator set is widely used due to its compact size, flexibility, light weight, complete accessories, ease of operation, and maintenance. It is commonly employed as a backup or temporary power source in mining, railways, construction sites, road traffic maintenance, and various industrial and commercial sectors. For a long time, Chinese diesel generator set products have maintained a favorable export situation, thanks to their cost advantage and the continuous maturation of technology. Especially in regions like the Middle East, Africa, and Australia, the demand for Chinese diesel generator sets has been steadily increasing. Driven by strong market demand, China's import and export values have been steadily growing. Overall, the demand for foreign diesel generator sets in the Chinese market is primarily focused on mid-to-high-end products, which occupy the vast majority of the market share, while demand for low-end products is relatively low. This is mainly because domestic products are mainly mid-to-low-end, leading to lower demand.

Type     Item No.:TO52000ET

Please provide the Chinese content to be translated.:Generator specifications:

1.Rated Power:      50KW

2.Standby Power:      52KW

3.Rated Frequency:      50HZ

4.Rated Voltage:      220/380V

5.Start-up Method: Electric Start

6.Institution Type: Style

7.Power Factor:      0.8/1.0

8.Please provide the Chinese content to be translated. Quantity: Unit/Three-phase

Two.Engine specifications:

1.Engine Model:    TO-N4105ZD

2.Cooling Method: Water Cooling

3.Rated Speed:      1500r/min

4.Cylinder structure: Direct-injection, 4-cylinder, inline, water-cooled

5.Combustion System: Direct喷射式

6.Inlet method: Turbocharged

7.Insulation Grade:      HGrade

8.Speed Control Method: Mechanical Speed Regulator

9.Fuel Tank Capacity:     50L

10.Oil Type:      SAE 10W30OrCD）

11.Fuel Type: 0#、-10#

12.Generator RPM: 1500r/min

13.Oil Type:      SAE 10W30OrCD）

Three:Complete Machine Parameters:

1.Fuel Gauge Available

2.Voltage Meter: Available

3.Power Indicator: Available

4.Machine Fuel Consumption:      200g/kw.h

5.Office Hours:      8-12H

6.Noise Level7MLocation:68-79db

7.Machine Weight:      800/900kg

8.Dimensions:      1700*950*140

Diesel generator sets are widely used as power stations for communication, ships, mobile, and various emergency power needs. With the development of technology and control systems, diesel generator sets are evolving towards enhanced strength, reliability, stability, computerized automatic control, operation automation, low fuel consumption, low emissions, low noise, and versatility. The generator sets operate reliably, with stable performance; the time before major maintenance without failure exceeds several tens of hours, and efforts are made to extend this to major maintenance periods without failure. The complete set can simultaneously provide power at several Hz, 230/400V, 400Hz, and 115/200V to meet various requirements. Computer and microelectronics technology are integrated into the automatic control section of the set, enabling it to achieve automatic start-up, automatic detection of operating status, and adjustment of operating parameters to optimal values, automatic diagnosis and fault handling, as well as automatic coupling and load transfer. It can also perform remote intelligent monitoring.

Diesel generators can also serve as portable power sources: portable power sources are power generation facilities that are not fixed to a specific location and can be moved and used anywhere. Diesel generator sets are the primary choice for portable power due to their lightweight, mobile, and easy-to-operate features. Portable power sources are individually designed for power vehicles, including self-powered vehicles and trailer-mounted power vehicles.
