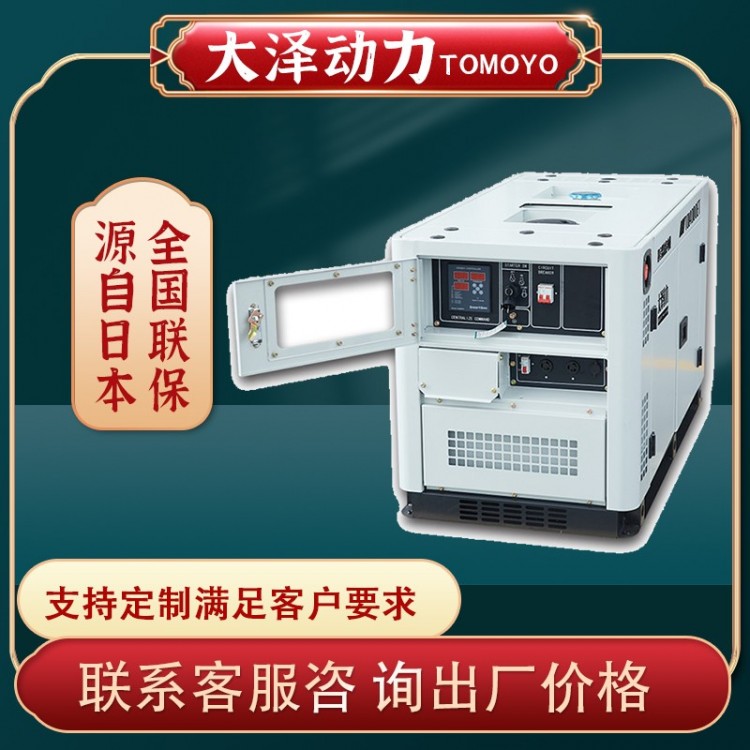

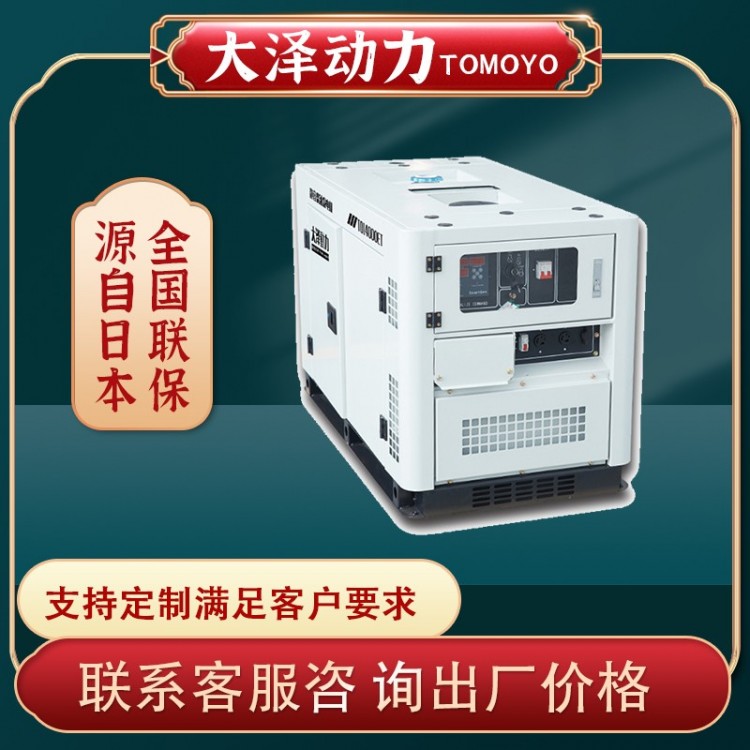

Water-cooled 15KW diesel generator set on-board price, silent power generation unit

Water-cooled 15KW diesel generator on-board priceShanghai Oupao Industrial Co., Ltd.'s low-noise box for type diesel generator sets introduction:
1. Notable low noise performance, with the noise level of the unit limited to 75dB(A) at 1 meter from the unit.
2. The overall design of the unit is compact, with a small footprint and a novel, aesthetically pleasing appearance.
3. Multilayer shielded impedance mismatched acoustic enclosures.
4. Noise-reduction multi-way intake and exhaust, air intake and exhaust channels, *adequate power performance of the unit.
5. Large impedance composite device.
6. High-capacity fuel pump.

7. Special design with an easy-to-open lid for convenient maintenance and care.

Model：TO18000ETX

Generator specifications

Rated Power：15KW

Backup Power:16KW

Rated Frequency:50HZ

Rated Voltage:220/380V

Startup Method：Electric Start

Institution Type：**Style

Power Factor：0.8/1.0

Please provide the Chinese content to be translated.    Numbers：SingleThree-phase

Motor Type：Rare Earth Permanent Magnet Motor

Engine specifications

Engine Model：YOTO2200

Cooling Method：Water Cooling

Rated Speed：1500r/min

Cylinder structure:Direct-injection, 4-cylinder, inline, water-cooled

Inlet method:Turbocharger

Insulation Grade:H Grade

Automatic Pressure Regulation: Featuring

Speed control method:Mechanical speed regulator

Fuel Tank Capacity:50L

Complete Machine Specifications

Fuel Gauge：Available

Voltage gauge：Available

Power indicator light：Available

Machine fuel consumption：206g/kw.h (full load)

Office Hours：8-12H

Noise Level：68-75db（7M）

Machine Weight：550/680KG

外形尺寸: Dimensions：1280*900*1205

High-capacity fuel tank with a special *removable lid for easy maintenance.
Daize Power Low Noise Diesel Generator Set Features
The noise level can also be controlled below 65 dBa, as per the customer's requirements.
2. The low-noise diesel generator set features a compact overall design with a small footprint and a novel, aesthetically pleasing appearance.
3. Multi-layer shielding impedance mismatched soundproofing enclosures.
4. Noise-reduction multi-way intake and exhaust, intake and exhaust air channels, *adequate power performance of the unit.
5. Large impedance composite device.
6. Large-capacity fuel pump
7. Special design for easy lid opening and maintenance.
Noise has a significant impact on humans, and diesel generators produce loud, disruptive sounds during operation, which can be harmful to the body. Low-noise diesel generators can effectively reduce the impact of noise on users.
Da Ze Power Diesel Generator Sets Features:
1. Reasonable Cylinder Head Design: The fire ring significantly enhances the service life of the generator cylinder gasket; the cylinder head bolts greatly extend the service life and improve **ity.
2. Wet-type, replaceable sleeve design with a fire ring and oil-cooled piston, *low operating costs and extended service life.
3. Using a flexible shock absorber is *superior* in performance compared to a rubber shock absorber.
4. The turbocharger utilizes the energy of exhaust gases, thereby improving energy efficiency. This increases output power, reduces fuel consumption, cleans emissions, decreases high-frequency noise, and extends service life.
5. A high-capacity oil pump, along with an oil cooler and a full-flow oil filter set, make up the lubrication system, reducing part wear and extending the engine's lifespan.
The Dazai Power diesel generator sets feature an integrated structure with an attractive appearance, easy installation, low vibration, and high operational safety. The control panel is equipped with anti-vibration measures and placed above the generator set. The engine and generator are connected rigidly, reducing their inherent vibration to a reasonable level, with the shock-absorbing device absorbing the majority of the set's vibrations. The base oil tank, made of high-strength steel, also serves as a vibration-absorbing component.
