Features of Fully Automatic Gas Boiler:
★ Low Nitrogen Condensing Gas Boiler, NOx emissions ≤ 30mg/m³, and meets the relevant requirements and standards of GB13271-2014 "Emission Standards of Air Pollutants from Boilers" and GB3096-2022 "Environmental Noise Standard for Urban Areas".
★ Equipped with a smoke condensation cooler, the furnace structure is rational, saving fuel.
★ Featuring a new condensation design concept, technologically advanced, aesthetically pleasing, economically durable, with low exhaust temperatures and meets environmental protection requirements.
★ Jet-internal combustion E-type flue gas recirculation three-pass counterflow structure, high heat exchange coupling of water pipes and fire tubes, ultra-low NOx emission design ≤30mg/m³, double radiation large heat exchange area, and threaded flue pipes for the convective tube bundle.
Air and gas are proportionally mixed through a control valve and pre-mixing technology, ensuring uniform combustion on the surface of the metal burner. This guarantees stable combustion and heat exchange, further reducing nitrogen oxide emissions.
★ This type of heat exchange system integrates the combustion chamber, flue, and waterway into a single design, featuring excellent all-around heat conduction without dead spots. Based on fluid dynamics, the conservation laws of mass, momentum, and energy, the technology applies the wind tunnel fluid mechanics rationally in a graded heat exchange technique for gas boilers. The upper-side-mounted burner allows flue gases to flow from top to bottom, while the water in the boiler's heat exchange system flows in the opposite direction from bottom to top, facilitating heat exchange. This effectively absorbs the sensible heat in the flue gases and the latent heat released during condensation, resulting in low exhaust gas temperatures and achieving energy-saving and environmental protection goals.
Short-circuit protection, overload protection, leakage protection, abnormal temperature sensor protection, abnormal water level sensor protection, secondary overheating protection, high water temperature protection, low water level dry burning shutdown alarm, burner shutdown alarm, and water scale excess alarm function.
7-inch color touch screen, featuring an industrial-grade CPU module as the core controller. Full Chinese text and graphic simulation with true-color dynamic animation, high-brightness LCD text and graphic interface, indicator for simulated operation of burners and pumps, real-time display of current working temperature, internal water level, and current date, month, day, and weekday time. Fault display in Chinese and control parameters. Automatically saves fault records and provides Chinese prompts for fault information. Data analysis and easy access to historical operating data with standard RS232/485 interfaces, enabling connection to building automation or DCS systems. Implements group control functionality for multiple boilers.
Our company draws on the numerous advantages of similar well-known brand boilers, and introduces a low-nitrogen atmospheric pressure hot water boiler that is self-regulating, environmentally friendly, convenient, and aesthetically pleasing, in line with China's boiler industry manufacturing standards. This boiler suits the needs of hotels, schools, hospitals, swimming pools, residential communities, and other institutions, providing 24-hour heating and hot water. When paired with a refrigeration unit, it can form a heating and cooling air conditioning system.
Horizontal E-type loop three-pass full wet-back structure, flanged butt-welded design:
1). Jet-injected internal combustion E-type three-pass wet-back flue gas structure:Fully Automatic Low-Nitrogen Condensing Gas Boiler, this product's design complies with the relevant provisions of NB/T 10941-2022 "Technical Conditions for Small Boilers and Atmospheric Pressure Hot Water Boilers", TSG 91-2021 "Boiler Energy Conservation and Environmental Protection Technical Code", and TSG 11-2020 "Boiler Safety Technical Code". The boiler's dust emissions meet ultra-low NOx emissions of ≤30mg/m³. It employs an E-type shell structure and a full-wet back structure. Fuel passes through an upper-side mounted burner, causing flue gas to flow from top to bottom. Meanwhile, the water flow in the boiler's heat exchange system moves in an opposite direction from bottom to top. Due to the action of high-speed flames creating回流 and entrainment in the boiler drum, the flue gas undergoes cross-exchange after turning 180° into the boiler body, the flue gas condensation energy saver, and the multi-functional heat exchange area coupled with the water pipes. After turning 180° again into the flue gas condensation energy saver, it effectively absorbs the sensible heat in the flue gas and the latent heat released during condensation, resulting in low exhaust gas temperatures. The exhaust gases are then discharged into the air through the chimney, achieving the goals of energy conservation and environmental protection.
The boiler is composed of the boiler body, base, insulation, steel frame, accessories, instruments layout, flue gas condenser, and computer control system. The overall structure of the boiler body features an upper-mounted furnace pot with evenly and symmetrically arranged flue tubes below. The drum is made up of the cylinder and front and rear tube plates. The boiler body is焊接 from the cylinder and upper and lower tube plates. The furnace pot is焊接 from a large furnace pot, pot top, and inner tube plate. The large furnace pot structure increases the heat transfer area, enhances the rigidity of the furnace pot, and accommodates the free expansion after the furnace pot is heated. The convective tube bundle is焊接 from threaded flue tubes, which significantly enhance heat transfer, increasing the heated area, making the boiler structure compact, and reducing the occupied space. A manway is set at the upper part of the boiler body for easy internal inspection and regular maintenance cleaning. The down draft chamber is assembled in an integrated manner, offering good overall design, aesthetics, and elegance, without any potential for smoke leakage.
The smoke condensation energy saver is assembled from front and rear side panels, left and right side panels, and upper and lower tube plates. The convective tube bundle is焊接 from threaded smoke pipes and is integrated with the boiler main body, resulting in low exhaust gas temperature. It effectively increases thermal efficiency, saves fuel consumption, and reduces nitrogen oxide emissions.
This furnace-type heat exchange system integrates the combustion chamber, flue, and water channel into a single design, offering excellent heat conductivity without dead zones. By combining fluid dynamics with the principles of mass conservation, momentum conservation, and energy conservation, a rational application of wind tunnel fluid mechanics is employed in a staged heat exchange technology for gas boilers.
2). Extra-large capacity counter-current furnace tubeThis boiler features a volumetric large furnace tube, with a spacious combustion chamber that enhances the rigidity of the tube while effectively reducing its expansion stress. It strengthens the disturbance of flue gas and increases the radiant heat transfer area. By effectively utilizing radiant heat exchange, it boosts heat transfer efficiency and promotes combustion of the fuel within the furnace. Coupled with a high-quality and reliable burner, it ensures complete combustion of the fuel, improves thermal efficiency, and reduces the emission of harmful components in flue gas, meeting environmental protection standards.
3). Threaded Tobacco PipeA threaded pipe is a helical heat-conducting tube with an inner convex and outer concave structure. It is processed from a plain tube to a threaded tube by using a cold rolling method on the equipment. After heat exchange and flow resistance optimization, the heat transfer capacity of a single threaded pipe is equivalent to 1.7-1.8 times that of a standard pipe of the same size, enhancing the heat exchange efficiency and thermal efficiency. This design effectively reduces the smoke resistance of the body. It enables high-speed turbulent flow of smoke, prevents the occurrence of pipe blockage, and strengthens heat transfer, reduces back pressure, and improves heat exchange efficiency.
4). Sufficient heating area:Based on the principle that the heat and temperature of the furnace radiant ring are proportional to the fourth power, this furnace has a large furnace tube space and a large effective radiant heating surface, with a high proportion of radiant heat absorption to total heat absorption. Due to the entrainment effect of the high-temperature flame on recirculation, the temperature field inside the furnace is uniform, effectively inhibiting the formation of NOx. It is a combustion method that is environmentally friendly, and due to the turbulent action of recirculation, it increases the convective heat transfer between the airflow and the heat exchange surface.
5). Large-capacity hot water storage room features a unique structure:This hot water storage room provides clients with a high-quality heat source, capable of promptly handling load fluctuations, instability, and peak changes. It also features a curved outlet device to maintain a consistent hot water output, delivering a high-quality outlet curve, preventing hot water accumulation in blind spots inside the boiler, and effectively inhibiting scale formation.
6). Temperature-equalized water circulation systemThe furnace body is entirely arc-shaped, ensuring no dead corners for even heat and cold exchange, achieving the set pressure more rapidly. An internal backwater regulator is incorporated to disperse flushing of the heated surface during the backwater process, guaranteeing stable and reliable operation.
7). Robust and durable boiler inner shell, clean and hygienic water quality:Boiler inner shells can be treated with anti-corrosion and rust prevention as per the contract, offering excellent resistance to atmospheric corrosion. The surface forms a protective film against corrosion, safeguarding the internal steel substrate. Additionally, this protective layer provides cathodic protection to the steel, effectively extending the stable operation of the boiler shell. Moreover, it prevents rust, corrosion, and scaling, protecting both the welds of the boiler shell and ensuring clean and hygienic water quality.
8). Rational furnace structure, easy for maintenance and repair:Boasting an advanced and unique design, our boilers ensure reliability, economy, and stability. The main pressure components are joined by flanged butt welding, guaranteeing high-quality welds; we employ the innovative balanced flue design, utilizing flue heating with the flue pipes evenly placed within the furnace. Surrounded by furnace water, this structure features a spacious furnace interior and a large effective radiant heating surface, optimizing the heating area and enhancing heat transfer and heat exchange efficiency. Inspection ports are designed on both sides of the boiler for easy inspection and cleaning, simplifying maintenance and making repairs and maintenance extremely convenient, meeting users' requirements for equipment operation and maintenance.
9). Advanced heat transfer technology, rapid heat transfer rate, and high thermal efficiency:Utilizing heat transfer and flow resistance technology from "Harbin Institute of Technology's Light Research Institute," the boiler employs threaded heat transfer flue pipes and an optimized flue gas velocity design. This ensures that the boiler's output and thermal efficiency do not decline over extended operation times, allowing for stable heating. The thermal efficiency remains stable under various load levels, and the furnace design balances the flame volume of the burner and the heat exchange surface area, achieving a balanced exhaust gas temperature at the outlet of the flue pipe. The thickened insulation layer ensures the boiler's outer surface area meets energy-saving requirements. Equipped with a flue gas condensation energy-saving device at the tail, it recovers the waste heat from high-temperature flue gas, resulting in low exhaust gas temperatures and fuel savings for the customer. It also completely eliminates the drawback of other gas hot water boilers, where the flue pipes accumulate soot, leading to increased fuel consumption over time.
10). Stable and reliable control system:Protective measures for the control system, outlet and inlet water temperature control, and outlet water temperature display. Temperature can be freely adjusted within the specified range, featuring intelligent control functions such as over-temperature protection, leakage protection, overcurrent protection, water shortage protection, phase loss protection, and fault alarms to ensure the boiler operates normally. The control system employs multiple interlock protection and alarm designs, with a comprehensive range of automatic protection measures. Thicker boiler heat-resistant steel pipes ensure stable boiler operation. The boiler is designed at atmospheric pressure, with the body water pressure test conducted at 0.2MPa. The dry burn prevention function uses a water level sensor to protect against water shortage, utilizing the conductivity of water to measure the water level in the drum for high precision level control. If the boiler scale exceeds the standard, the boiler controller will automatically alarm to prompt, ensuring the boiler's longevity and durability, fundamentally preventing accidents, and facilitating maintenance.
11). Durable and low failure rate:A rational boiler structure, consistent flow rates of the medium and high-temperature flue gas, ensures that the tubes will not burst due to scaling. This guarantees the stability of the boiler while also ensuring the combustion efficiency of the burner. By reducing the number of operating cycles and load fluctuations, the equipment operates consistently at full load, enhancing efficiency and energy savings, and reducing the failure rate; and by reducing load fluctuations, the equipment operates consistently at full load, further enhancing efficiency and energy savings. It features automatic protection against overtemperature, leakage, and low water level, ensuring stability and reliability.
12). Integrated combustion configuration system:The design of the hot water boiler and burner as a whole, tailored to the ultra-low nitrogen atmospheric pressure hot water boiler features, is a long-standing tradition of our factory. This design ensures a reasonable combustion ratio for the boiler, combining energy-saving and environmental protection technologies effectively.
13). Excellent thermal insulation, minimal heat lossInsulation materials use high-density aluminum silicate wool + high-quality aluminum foil spun glass fiber wool for excellent thermal insulation properties.
14). Computer Design and Drafting:CAD-optimized design ensures efficient water circulation with minimal flow resistance. Effectively optimizes the heat exchange coefficient of the furnace heating surface, enhancing thermal efficiency.
15). Compliant with environmental standards:During the condensation process of water vapor in flue gas, harmful gases such as NOX and SOX are absorbed, resulting in significantly lower levels of harmful emissions than the discharge standards. This can reduce harmful substances in the flue gas emissions. The air is purified, benefiting environmental protection. This technology meets the requirements of social environmental protection and energy policies, adhering to the relevant requirements and standards of GB13271-2014 "Emission Standards of Air Pollutants from Boilers" and GB3096-2022 "Environmental Noise Standards for Urban Areas."
16). Aesthetically pleasing:The housing is packaged in industrial-grade white polyester paint color board flat packaging, which is aesthetically pleasing, sturdy, durable, and resists corrosion over long-term use.
17).Easy installation:Boiler unit is factory-assembled, featuring a compact structure and easy installation. All electrical and control lines are pre-connected, making the installation straightforward. Simply connect the water, power, and gas sources, along with the corresponding in and out pipes, and it's ready for operation. Quick and convenient installation.

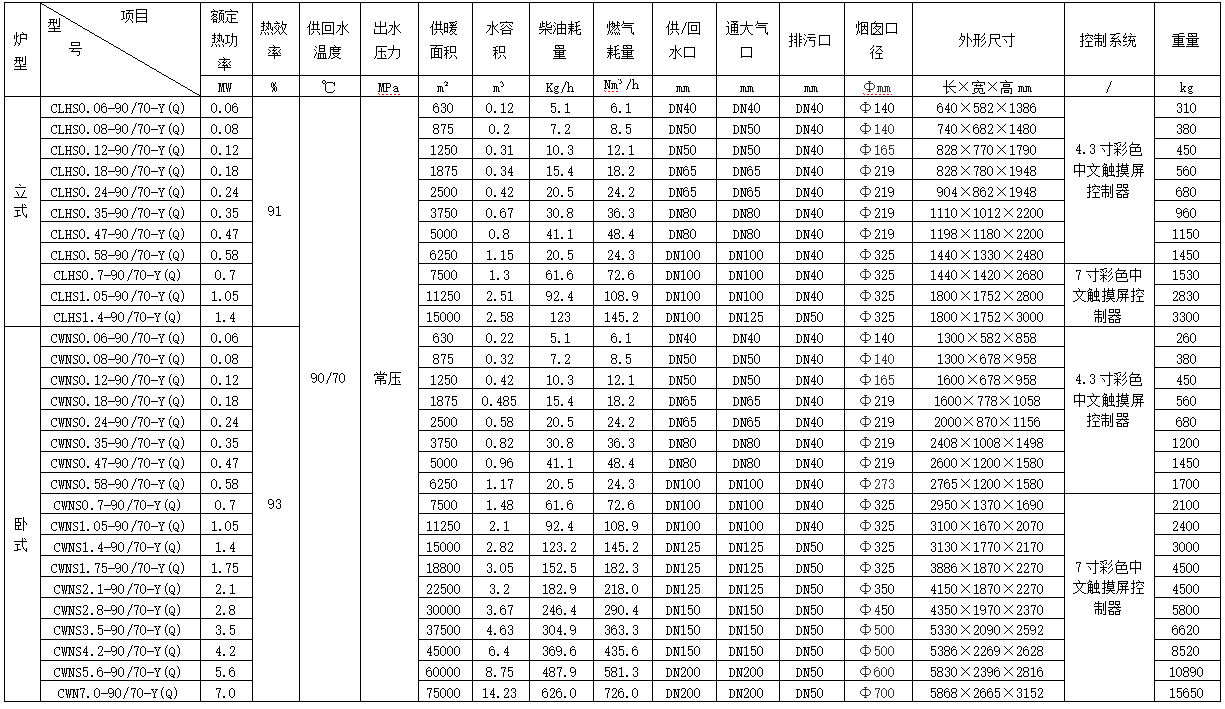

1. Full-Automatic Fuel (Gas) Atmospheric Pressure Hot Water Boiler Technical Specifications

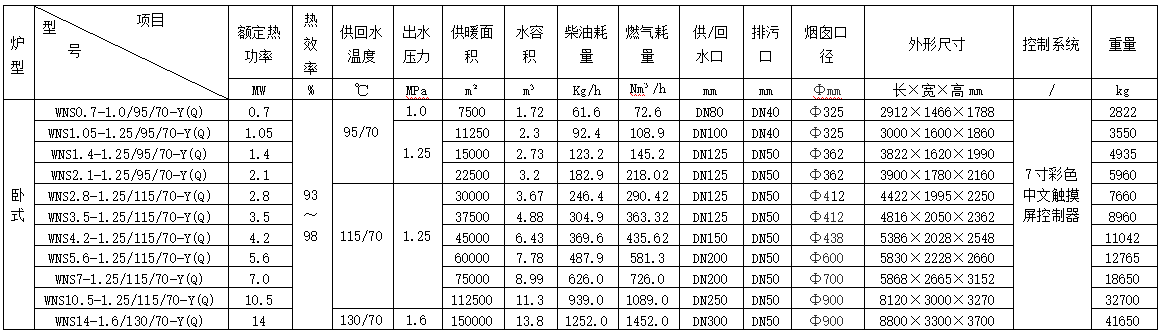

Section II: Technical Parameters of Fully Automatic Fuel (Gas) Pressure Hot Water Boilers

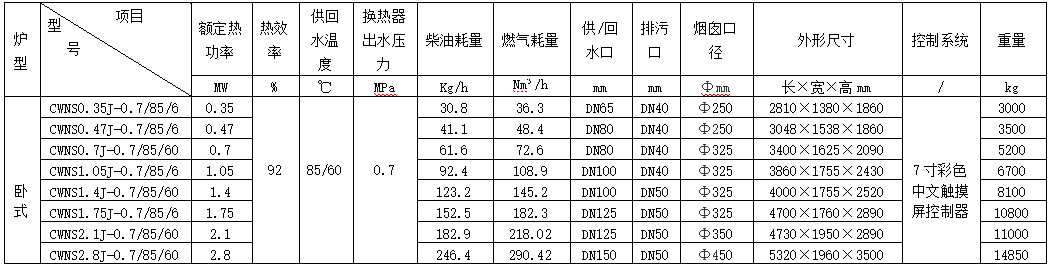

3. Technical Specifications of Fully Automatic Fuel (Gas) Integrated Heat Exchanger Hot Water Boiler
1. Combustion heat values are calculated according to the following standards: diesel fuel value 42,900 KJ/kg (equivalent to 10,248 kcal/kg), gas fuel value 3,600 KJ/Nm³ (equivalent to 8,600 kcal/Nm³), and city gas 16,000 KJ/Nm³ (equivalent to 3,800 kcal/Nm³).
2. If the gas source is natural gas, please provide the calorific value, gas pressure range, and altitude when placing an order.
3. Fuel consumption figures are based on the maximum load of the boiler. Actual consumption may vary depending on the operating conditions.
4. Retain the right to redefine or alter product information without prior notice (including appearance, dimensions, control methods, internal structure, etc.)
