Key features of the anti-personnel door-specific vibration platform:

The vibration motor serves as the excitation source, featuring low noise, low power consumption, and simple maintenance.

2. Simple structure, reliable operation, lightweight, compact size, easy installation.

3. High power, large surface area; maximum power 2.2kW x (4-5), vibration force 120KN, capable of bearing the weight of anti-personnel doors up to 12T, maximum load capacity can be designed and manufactured up to 15T.

4. The countertop height is adjustable, suitable for use on assembly lines.

5. Adjusting the position of the vibration motor allows for three-dimensional vibration, suitable for complex cavity castings.

6. Continuous variable speed, during the shaping process, can achieve a firm texture without damaging the model.

7. By adding a positioning device, accurate location within the production line is ensured.

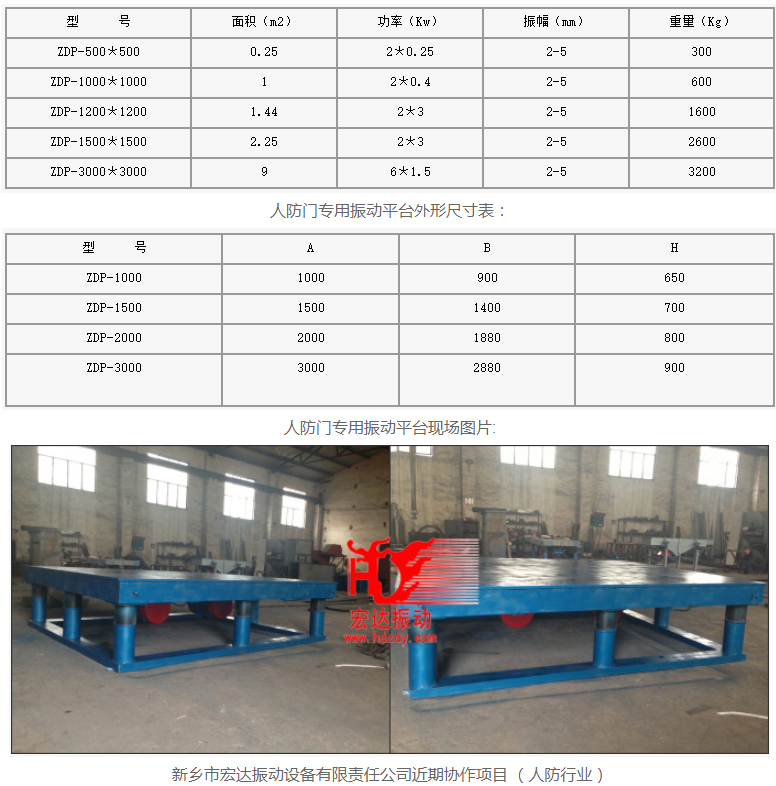

Technical specifications for the anti-personnel door vibration platform:

Key Points for Choosing Vibration Platforms:

1. Industries using vibration platforms: lost foam casting, concrete filling, material packaging filling, production of decorative panels in the construction industry, and vibration compaction in the refractory material industry.

2. Select highly based on the customer's industry requirements: up-down vibration, horizontal vibration, or a combination of both.

3. Select the vibration platform's power source based on the weight of the material or sand box it carries (vibration motor drive, ordinary motor with exciter drive, electromagnetic drive).

4. Select whether to use variable frequency or frequency tuning control based on the required vibration frequency of the vibration platform.

5. Vibration platform shock absorbers generally include: steel spring damping, rubber spring damping, air spring damping, and Rossta spring damping. Select according to the actual working conditions used.

6. Prior to powering off the vibration platform, it's common to experience severe shaking (often driven by the vibration motor), which is a normal occurrence. If the customer requests an immediate shutdown, the reverse-connection braking method is typically used.

Note: The anti-personnel door special vibration platform is a non-standard product, which can be customized according to customer requirements. Select the appropriate vibration motor based on the requirements of maximum excitation force, vibration amplitude, vibration frequency, vibration type, and the size of the vibration platform surface.
