Hongda 3D Vibration Platform (ZP Casting Vibration Platform):

The ZP 3D Vibration Platform is a type of vibration platform primarily used in the lost foam casting industry, essential for continuous production lines. The vibration platform can achieve free lifting and lowering by inflating and deflating the air in the air bags, ensuring uninterrupted operation of the production line!

During operation, the vibration platform can adjust the excitation force of the vibration motor to achieve an ideal form of materials on the platform. This machine is mainly used for resin sand and lost foam molding, where the vibration motor drives the body to vibrate, ensuring the sand is fully compacted and filled into the mold. It can be integrated with conveyor belts to form a continuous production line. The vibration platform is used in the production process to transform granular and powdered materials from loose to block or shaped forms. The platform surface and base are connected by air springs, resulting in low noise and effective vibration reduction during operation. It boasts good processability and environmental friendliness. The vibration platform is widely used in industries such as metallurgy, mold making, food, chemicals, and building materials.

The ZP 3D Vibration Platform is a custom product, designed to meet customer specifications. Select the appropriate vibration motor based on the weight-bearing capacity of the vibration platform's surface.

ZP 3D Vibration Platform (Molding Vibration Platform) Features:

1. High power, large surface; maximum power 2.2 kW x (4-5), vibration force 120 KN, capable of carrying sand box weight up to 12T, maximum load capacity can be designed and manufactured up to 15T.

2. The countertop height is adjustable, suitable for use on assembly lines.

3. Three-dimensional vibration, independently controllable, suitable for complex mold casting parts.

4. Infinite variable speed during the shaping process allows for a tight, firm effect without damaging the model.

5. Self-locking feature ensures precise positioning on the production line.

The composition of the ZP 3D Vibration Platform (Foundry Vibration Platform):

1. The three-dimensional vibration platform (3D vibration compaction platform) is mainly composed of four parts: the support frame, the platform surface, the vibration mechanism, and the shock-absorbing mechanism. Driven by the vibration mechanism, it performs horizontal, vertical, and up-down three-dimensional vibrations, hence its name.

2. The vibration mechanism of a 3D vibration platform (3D compaction platform) primarily consists of several vibration motors and transmission plates. The number of vibration motors is generally an even number, such as 4, 6, 8, 10, etc., with the model of the vibration motor determining the main technical parameters of the 3D vibration platform.

3. The vibration reduction mechanism of a 3D vibration platform (3D compaction platform) is mainly composed of vibration reduction springs, which are categorized into rubber springs, composite springs, air cushion springs, and others.

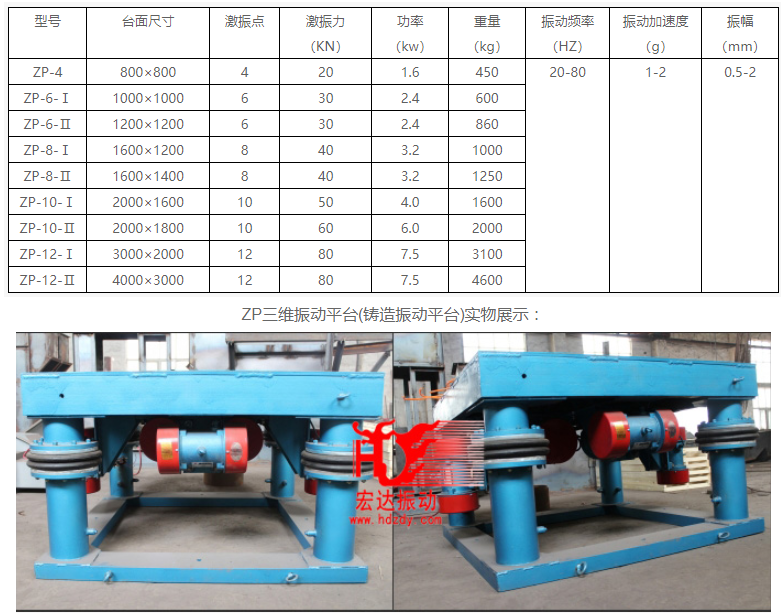

ZP 3D Vibration Platform (Foundry Vibration Platform) Technical Specifications:

Key Selection Criteria for Dynamic Platforms:
