The YZU vibration motor is an excitation source that combines the power source and vibration source into one. It is equipped with adjustable eccentric blocks at both ends of the rotor shaft, utilizing the centrifugal force generated by the high-speed rotation of the shaft and eccentric blocks to produce excitation force. Its structure is simple, compact, and easy to install, allowing it to participate in vibration without the need for transmission devices, among other advantages, making it widely applicable in various industries. The vibration motor has high excitation force utilization, low energy consumption, low noise, and a long service life. The excitation force of the vibration motor can be infinitely adjusted, easy to use, and models like JZO, YZU, YZO, YZS, YZD, TZDC, etc., are general-purpose vibration motors. Vibration motors can be used in various vibration equipment, such as vibration crushers, vibration separators, vibration packers, vibration sand fallers, vibration molders, vibration pile drivers, vibration hoists, vibration fillers, and vibration de-arch devices for material storage, etc. They are widely used in industrial sectors such as hydropower construction, thermal power generation, construction, building materials, chemicals, mining, coal, metallurgy, and light industry.

The YZU series vibration motors are a new model, characterized by their compact size, attractive appearance, and high cost-performance ratio. Unlike other vibration motors, their housing and base are cast as a single unit, improving the process, reducing costs, and enhancing dust resistance.

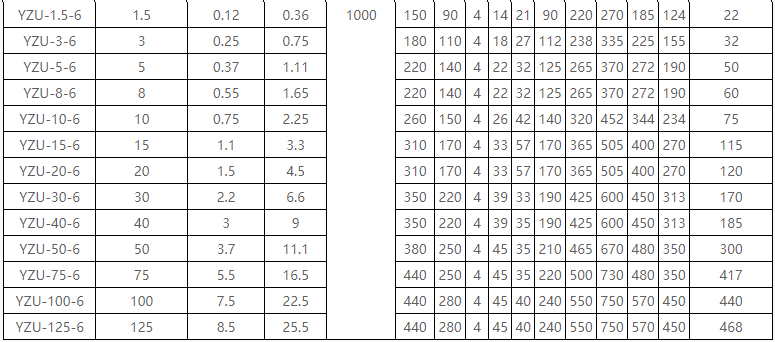

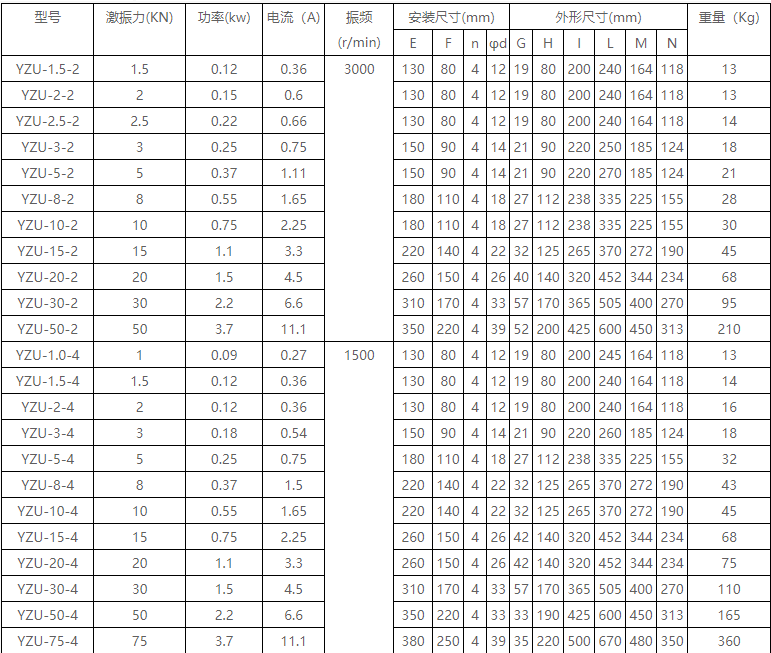

YZU series vibration motor technical specifications:

Rated Voltage: 380V

2. Rated Frequency: 50Hz

3. Protection Level: IP55

4. Allowable ambient temperature: -20°C to 40°C

5. Operating System: Continuous

Special parameter vibration motors can also be customized, such as special voltage, special installation dimensions, etc.

Vibration Motor Order Instructions:

Please specify the specifications, power, vibration force, pole number, and quantity of the required product.

(2) Any special requirements for the face paint?

(3) Any special requirements for motor leads?

(4) Customizable vibration motors with special parameters, such as special voltage, special installation dimensions, etc.
