Product Overview

The 1652AM Arbitrary Waveform Generator is a multi-channel, multifunctional arbitrary waveform generator. It achieves high channel density while maintaining high-quality output signals. It can be integrated with other general or specialized modular test instruments to form comprehensive test systems or platforms, supporting a variety of solutions, including advanced computer-controlled signal generation, large-scale MIMO signal generation, and multi-channel coherent signal generation, etc.

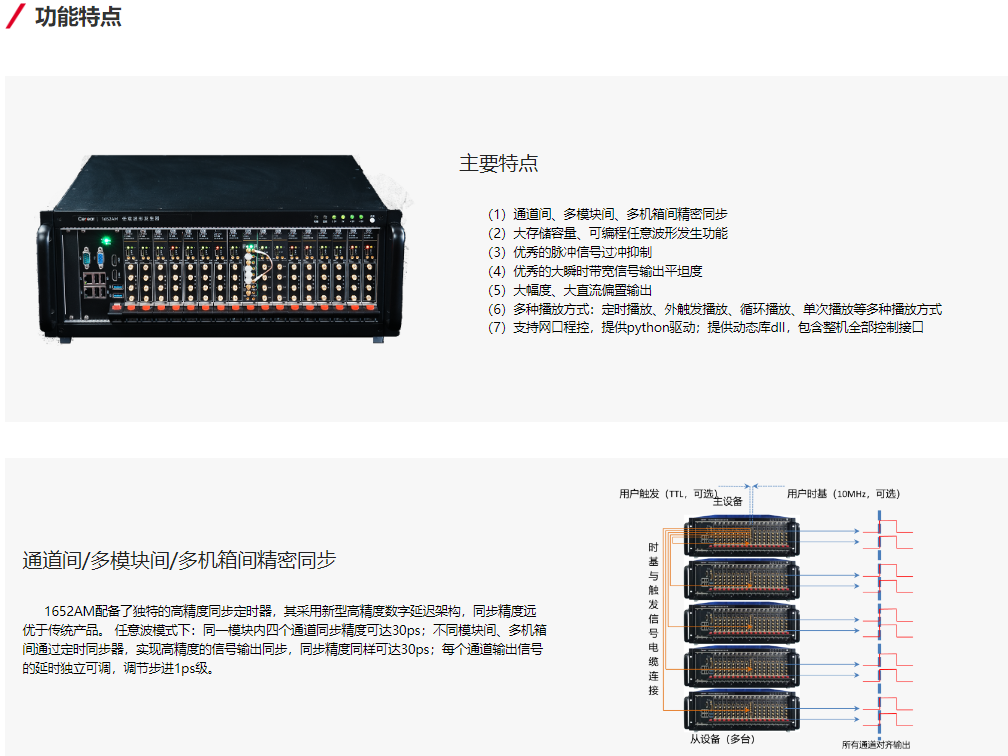

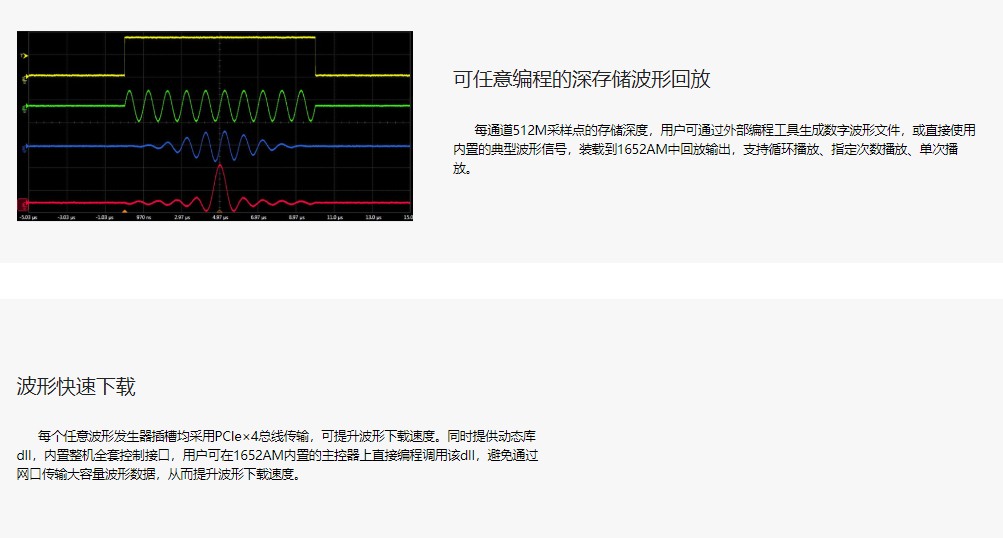

The 1652AM standard configuration includes 4 channels, with a maximum of 64 channels available per unit based on customer requirements. All channels can be precisely synchronized for output, and the signal output delay can be accurately adjusted. Multiple units also feature a synchronization mechanism that maintains precision. Each channel has a 512M sample point storage depth, is programmable independently, and can perform functions such as generating conventional function waveforms and editing arbitrary waveforms. The arbitrary waveform playback supports timed playback, external trigger playback, and loop playback, with the number of playback times definable.
