Product Overview

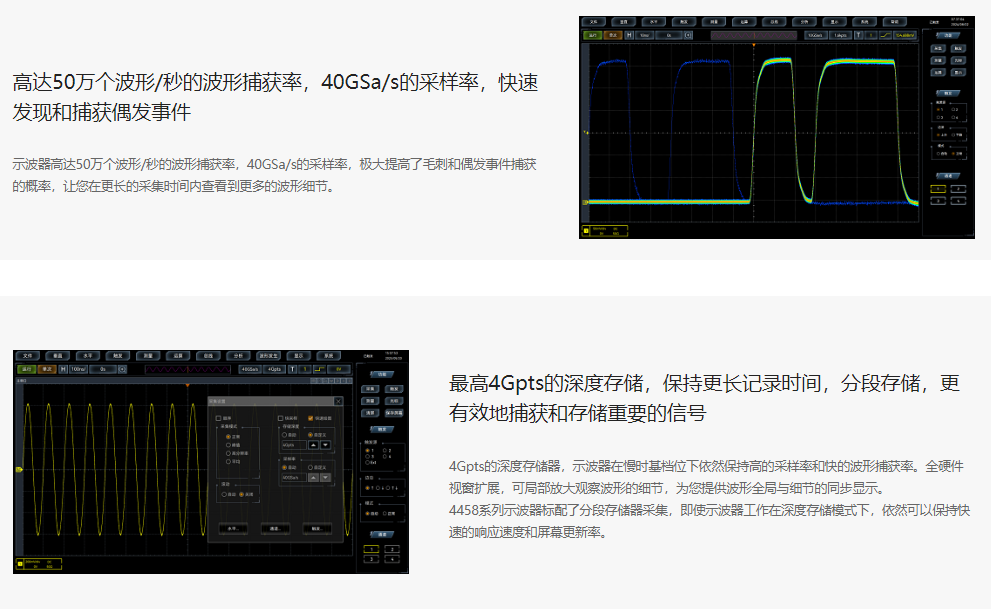

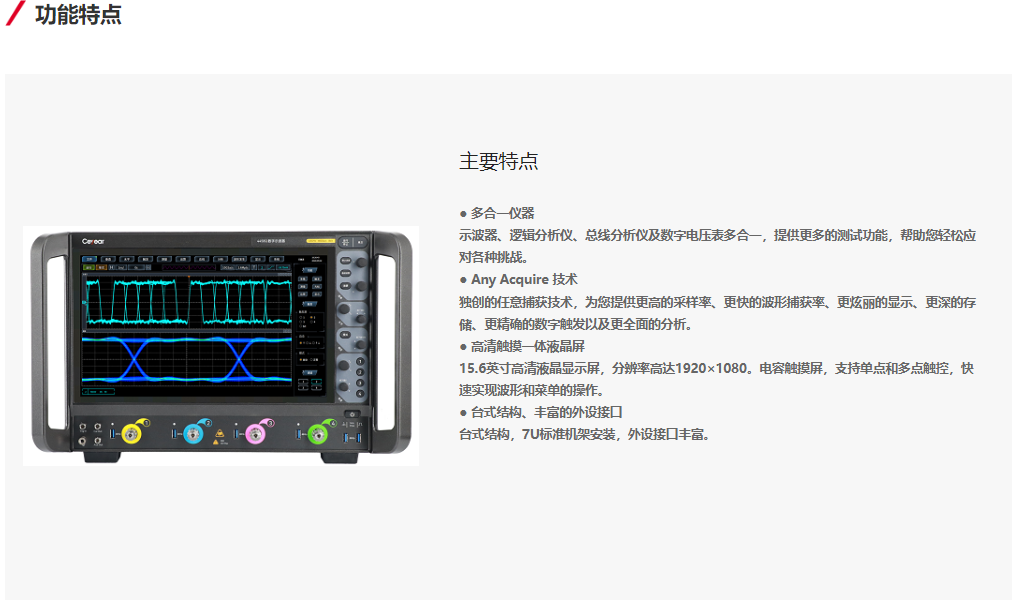

The 4458 series digital oscilloscopes come in three models: 4458N/P/Q. They offer bandwidths of 8GHz, 10GHz, and 13GHz, a sampling rate of 40GSa/s, vertical resolution of 8bit, storage depth of 4Gpts, and the fastest waveform capture rate of 500,000 waveforms per second. The innovative Any Acquire technology provides users with a new oscilloscope experience.

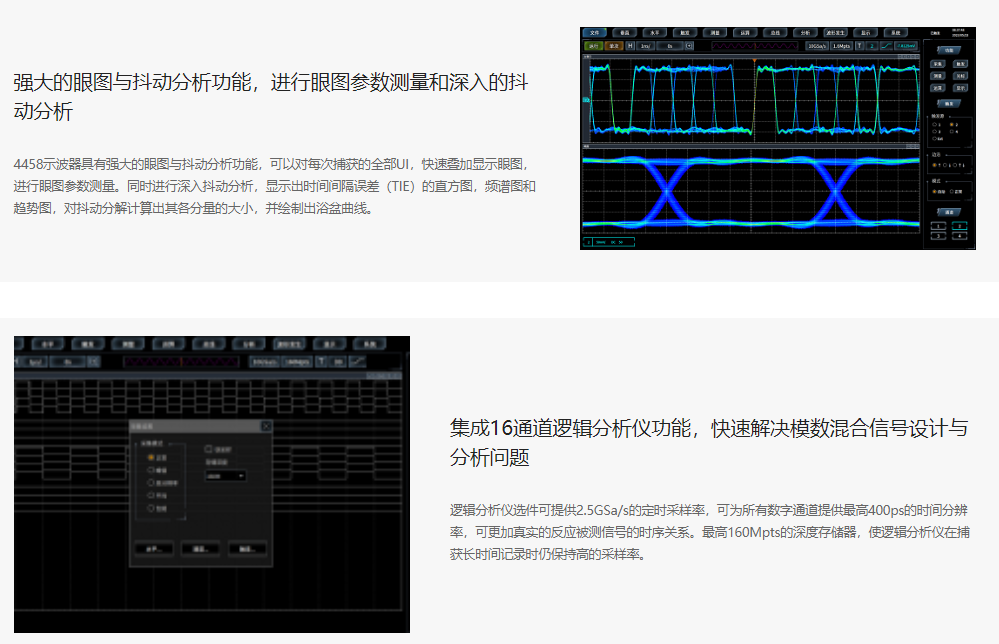

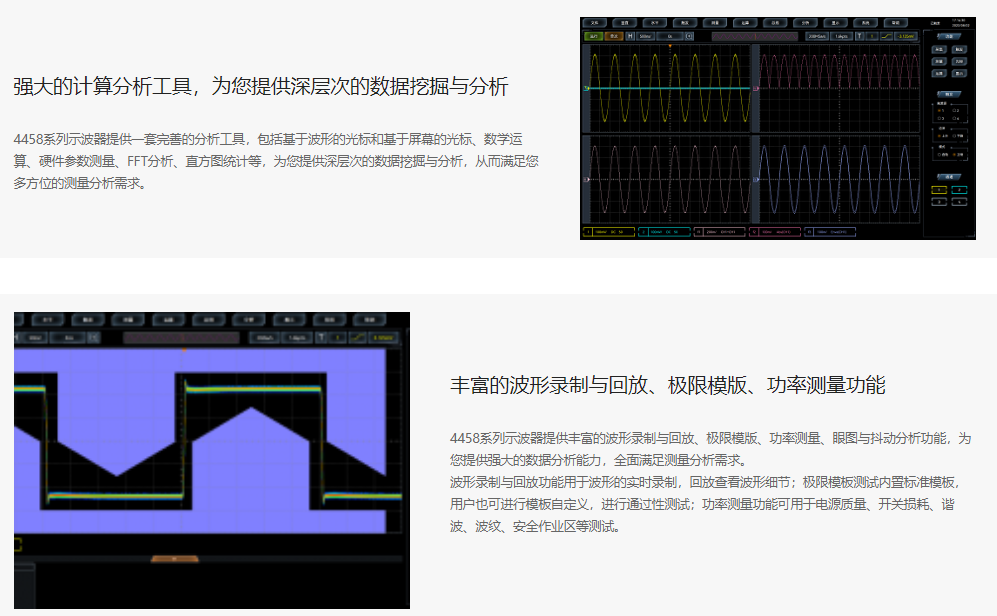

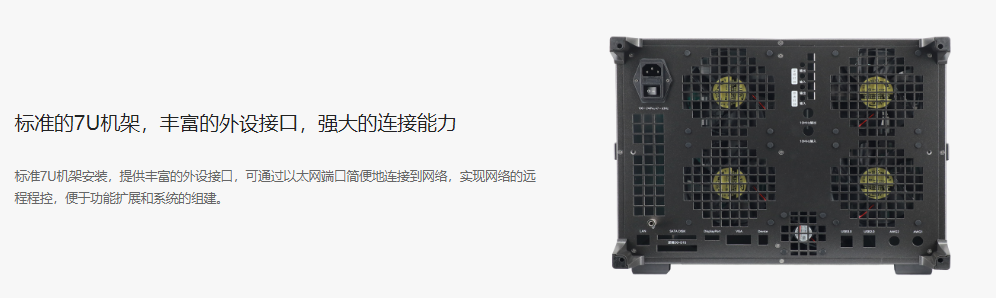

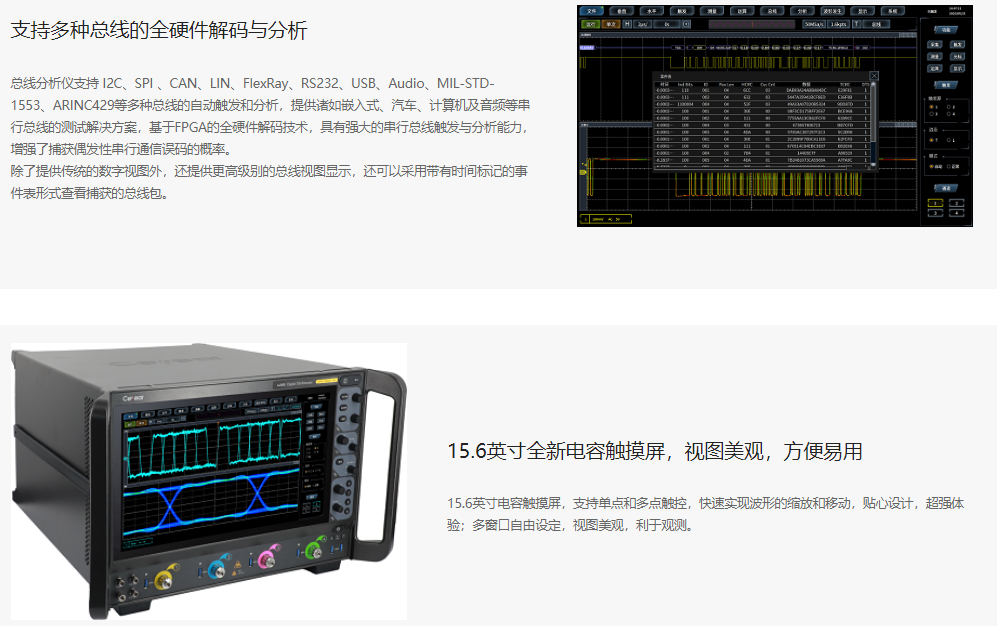

The 4458 series digital oscilloscope integrates multiple instruments into one, including an oscilloscope, logic analyzer, function generator, bus analyzer, real-time spectrum analyzer, and digital voltmeter. It features automatic waveform setup, parameter automatic measurement and statistics, cursor measurement, mathematical operations, FFT spectrum analysis, window expansion, optional serial bus analysis, and optional eye diagram and jitter analysis. It supports Ethernet programmability, making it convenient for integration and development.
