Product Overview

The Ceyear1653 series arbitrary waveform generator is an economical testing product from the Siwei Kaiyangxing series. It effectively addresses the issue of generating complex waveform signals with high cost-performance in educational research, industrial testing, and medical electronics, thanks to its multi-channel, deep storage, and high-quality design.Meet diverse signal incentive application requirements.

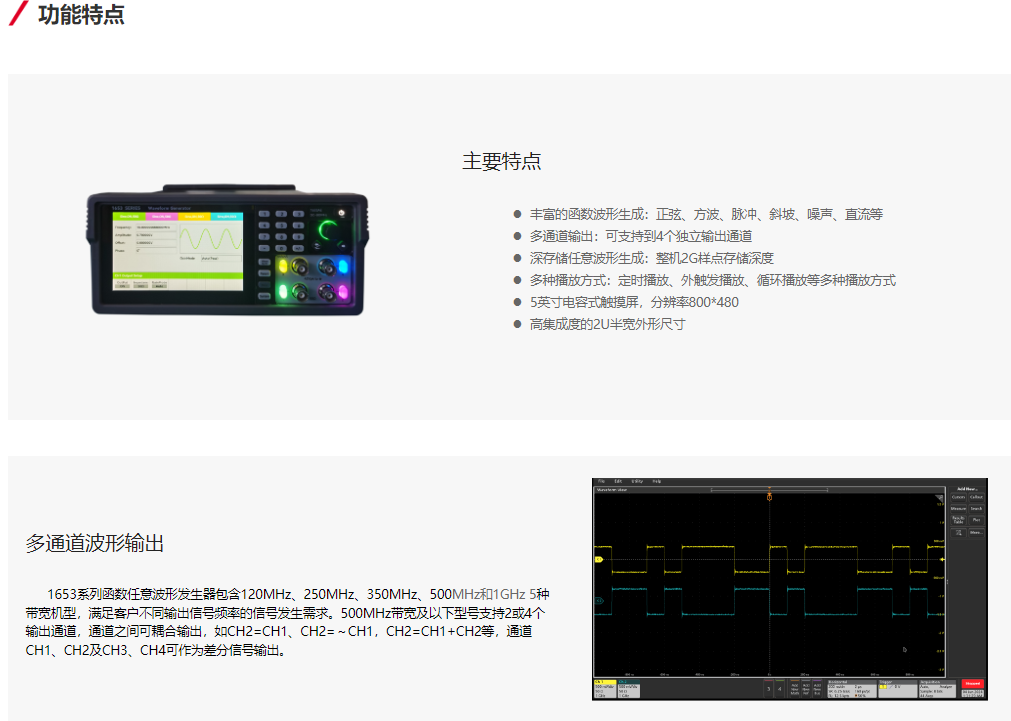

The 1653 series arbitrary waveform generator is a dual-channel (up to 4 channels with 500MHz support), multifunctional arbitrary waveform generator with a digital-to-analog sampling rate of 2.4GSa/s and vertical resolution of 16bits (1653AB-AE) / 2.5GSa/s and 14bits (1653AF). The output bandwidth includes configurations of 120MHz, 250MHz, 350MHz, 500MHz, and 1GHz. The maximum waveform storage depth of the entire unit is 2G samples. It can perform conventional function waveform generation, pulse waveform generation, arbitrary waveform generation, noise, modulated signal generation, I/Q vector baseband signals, and more. It supports various signal modulation methods, timing playback, external trigger playback, loop playback, customizable number of playback times, and channel synchronization functions. It also supports hardware frequency counter capabilities.
