I. Usage:

This product is widely used and suitable for transportation joints of conveyor belts in various fields such as metallurgy, chemical industry, metal mines, power plants, ports, and docks. After carefully reading the provided

After the technical specifications and manual, following the correct vulcanization bonding process, the bonded joint strength can reach over 90% of the new belt, ensuring a smooth joint that is nearly indistinguishable from the original belt.

And it can reduce wear on the drums and extend the service life of the conveyor and rubber conveyor belt.

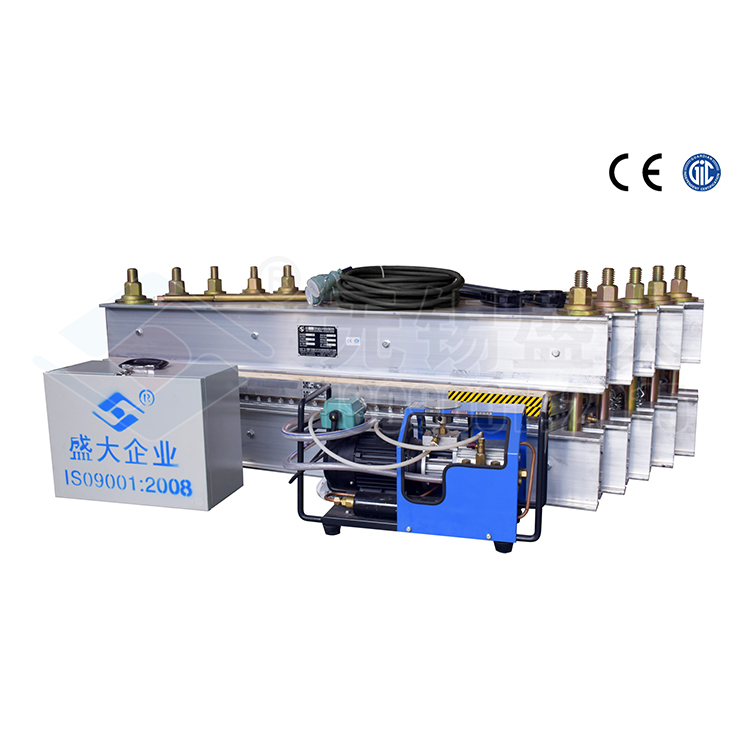

Section II: Technical Specifications of Electrically Heated Tape Vulcanizing Machine

Sulfur pressure: 1.5 MPa

2. Sulfurization Temperature: 145℃

3. Sulfur plate surface temperature difference: ±3℃

4. Heating time (from room temperature to 145℃) not exceeding 25 minutes.

5. Power Voltage: 380V, 660V, 50Hz

6. Control box output power: 36 kW

7. Temperature control range: Room temperature to 200℃

8. Timing Adjustment Range: 0-59 min.

9. Top and bottom heating plates pressure: After 0.8mpa, the gap is not greater than 0.5min.
