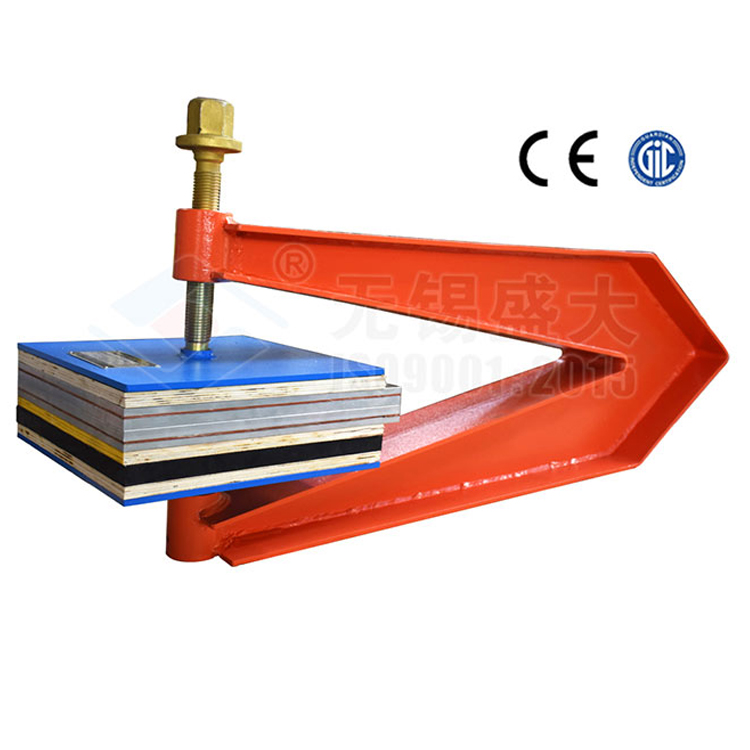

During operation, tape conveyors may suffer damage to both sides due to misalignment or inherent quality issues with the conveyor itself, affecting normal use. The DJQ-type electric heating tape edge repair tool,

Can perform effective vulcanization repairs to the damaged edge without removing the roller within a relatively short downtime (typically 3 hours) after shutdown.

It is a versatile all-purpose repair equipment, with the same performance and operation as vulcanizing machines.

Technical Specifications:

1. Vulcanization Temperature: 145℃

2. Sulfur pressure: 0.8 Mpa

3. Heating Plate Dimensions: 700×350 (mm)

4. Rated Power: 3.5 kW

Installation Instructions:

① Conduct rubber filling treatment for damaged areas requiring repair (refer to the filling section in the vulcanization process of tape joints, or have the factory's service personnel demonstrate during equipment debugging).

② Place the lower shelf beneath the repair area (evenly), on the shelf, position the water pressure plate below the tape, and the lower heating plate (directly above the repair area).

③ Place a heating plate, an insulating plate, and then the upper frame below the repaired area, aligning it with the lower frame.

④ Install the handle, washer, and nut, then tighten securely.

⑤ Connect the control box to the power source with a single wire, and connect the heating plate to the control box with a separate wire. Ensure the connections match the labels on the control box.

⑥ Connect the pump to the pressure plate with a high-pressure hose, turn on the electric control box, and fill the pressure plate with water to the vulcanization pressure.
