Medical Insulation Tester：
Product Model: YC10KJ-D
Product Introduction:
Portable insulation testers are primarily used for testing the insulation performance of endoscopes and other electrosurgical instruments. In the electrical equipment used in hospitals, 50% may cause leakage, of which 75% is invisible to the naked eye. Leakage in electric surgical instruments during surgery could lead to intra-abdominal hemorrhage, gastrointestinal perforation, vascular rupture and infection, postoperative complications, and even death during the procedure.
Our company's medical insulation tester is a multipurpose instrument developed and manufactured based on the latest clinical requirements and supply room management specifications. This medical insulation tester features a wide working voltage range (0-6000V), safe and convenient operation; intelligent fault detection information, long standby time; simultaneous sound, light, and visual alarms; and Chinese printout of detection parameters. After testing, it can print a variety of parameters including the detection situation, department, personnel, equipment, voltage, equipment number, and notes. This insulation tester can effectively reduce medical accidents caused by the insulation layer damage of electrical equipment.
YC10KJ-D Type Medical Insulation TesterProduct Application RangeSuitable for hospital supply rooms and operating theaters, capable of testing the insulation and conductivity of electrical surgical devices, conductive wires, endoscopes, and other electrical equipment.
Key Features of YC10KJ-D Type Medical Insulation Tester：
1. Safety:
Flow Control: Utilizes advanced flow control technology to keep the discharge current below 0.1mA.
b. Limited Time: Equipment automatically stops high-voltage output after continuous discharge for 2 seconds.
C. Pressure Resistance: Handles and cables designed for high pressure resistance, capable of blocking 10kV high voltage.
d. Self-inspection: The equipment can intelligently detect its own status and display fault information when a malfunction occurs.
2. Convenience:
a. Voltage Stabilization: Utilizes standard 220V power supply to prevent voltage deficiency caused by battery discharge, which can lead to false negatives and excessive consumption of battery consumables.
b. Low Voltage: Conductance detection utilizes a low-voltage circuit to avoid false negative results from high-voltage detection circuits.
c. Multi-level: 12 functional levels, quickly set the function you need.
d. Multi-functional: Insulation and continuity testing, multi-functional;
e. Multi-information: Large screen display, comprehensive and intuitive information.
Medical Insulation Tester Main Functions and Applications：
Inspection of insulation performance for electrosurgical instruments such as endoscopes.
2. Single-pole electrosurgical cable line conductivity testing
3. Unipolar Scalpel Cable Insulation Performance Testing
4. Bipolar electrosurgical cable line conductivity testing
5. External insulation performance testing for bipolar electrosurgical cable.
6. Bipolar electrosurgical cable line internal insulation performance testing
7. Bipolar electrosurgical cable line short-circuit detection.
Product Advantages of Insulation Test Meters：
High safety: with flow control, time limit, pressure resistance, and intelligent self-check.
2. 3.5-inch color touch screen display, with a safe and reliable operation process;
3. Wide range of outputs, versatile applications, and numerous functional uses.
4. High-quality 10000mAh lithium battery, charging time 3 hours, continuous operation time over 48 hours, standby time 360 hours, with overcharge and over-discharge protection
5. Features parameter printing and traceable detection parameter function: Allows for setting and printing various parameters such as test conditions, departments, personnel, equipment, voltage, equipment serial number, and remarks.
6. High-pressure-resistant handles and high-pressure conductors, capable of blocking 6KV high voltage.
7. Power Supply: Dual-mode power supply: High-quality lithium battery or AC 220V, with overcharge protection, can be charged and used simultaneously.
8. Auto-Sleep Function: The screen automatically enters sleep mode after a period of inactivity.
9. Battery charge detection, graphical charge indication
10. Loop Current: 30 mA (average); Terminal Output Current: 0.3 mA; Short Circuit Terminal Output Current: 0 mA.
11. Features sensitivity adjustment capability.
12. Optional Bluetooth printer available.
Core Advantages of YC10KJ-D Medical Insulation Tester:
Elegant design, solid materials, with non-slip foot pads.
2. Utilizes medical-grade voltage regulation technology to ensure stable and linear high-voltage output
3. Ultra-low current output ensures the absolute safety of operators in the event of equipment failure, preventing secondary damage to the equipment.

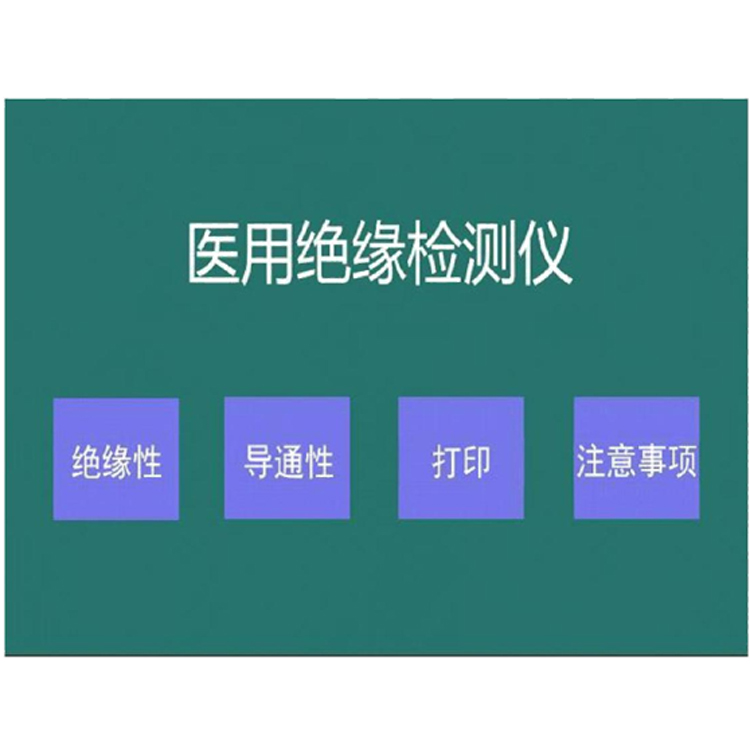

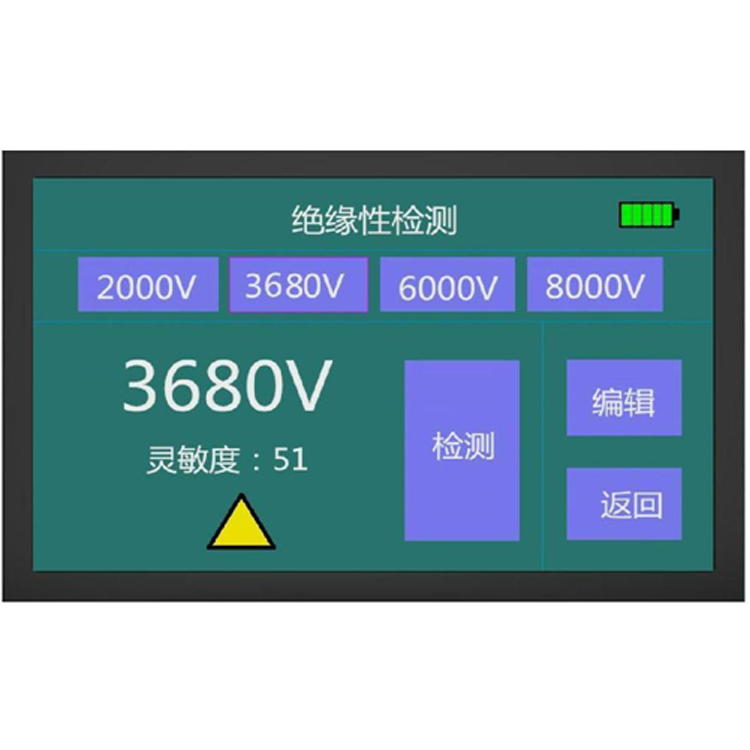

4. Medical-grade true-color LCD display, offering intuitive, eye-catching, and easy-to-understand visuals; touch screen input method for adjusting parameters, with straightforward and accurate operation.
5. Leading-edge low-power processing technology paired with high-quality lithium batteries, achieving a 360-hour standby time in such a compact size.
6. Core components are all imported from overseas, ensuring the high quality, safety, and low failure rate of the entire unit.
7. Ensures an exceptionally high detection rate, along with absolute safety for personnel and equipment.
YC10KJ-D Medical Insulation Tester Product Technical Parameters:
1. Test Voltage DC: Linear stable output of 0-6KV
2. Power: 1W
3. Weight: 0.8 kg
4. Short-circuit output current at the end: Less than 0.1mA
5. Operating/Storage Environment Operating Temperature: 0℃～50℃ Operating Humidity: ≤75% RH
Storage Environment: Temperature: 0℃ to 50℃; Humidity: ≤75%RH
6. Standard Accessories: Probe Handle, Ground Wire (2 male/female ends), Probe Brush, Alligator Clips (2 sizes), Probe Hook, Probe U-Bolt, Three-Pin Probe, Power Adapter, Foot Switch, Operating Manual, Aluminum Carrying Case.
