Medical Insulation Tester
Product Description:
Portable insulation testers are primarily used for testing the insulation performance of electro-surgical instruments like endoscopes. In medical equipment used in hospitals, 50% can cause leakage, with 75% being invisible to the naked eye. Leaking electric surgical instruments during operations may lead to intra-abdominal hemorrhage, gastrointestinal perforation, vascular rupture infection, postoperative complications, and even inoperative deaths. Therefore, using insulation testers for insulation performance testing has become the preferred choice.
Key Features of Medical Insulation Testers：
Safety:
Flow Control: Utilizing advanced flow control technology, the leakage current is kept below 0.1mA.
b. Time-limited: Automatic shutdown of high-voltage output after continuous discharge for 2 seconds.
C. Pressure Resistance: Handles and wires designed for high pressure resistance, capable of blocking 10kV high voltage.
d. Self-inspection: The equipment can intelligently detect its own status and display fault information when a malfunction occurs.
2. Convenience:
a. Voltage Stabilization: Utilizes standard 220V power supply to prevent voltage drop due to battery discharge, which can lead to false negatives and excessive consumption of battery consumables.
b. Low Voltage: Conductance detection uses a low-voltage circuit to avoid "false negatives" caused by high-voltage detection circuits.
c. Multi-level: 12 functional levels, quickly set the function you need.
d. Multi-functional: Insulation and continuity testing capabilities
e. Multi-Information: Large-screen display, comprehensive and intuitive information.
Medical Insulation Testing Instrument: Key Functions and Applications：
Electrosurgical instrument insulation performance testing
2. Unipolar electrosurgical cable line conductivity performance testing
3. Insulation performance testing of monopolar electrosurgical cable wires
4. Bipolar electrosurgical cable line conductivity testing
5. Bipolar Scalpel Cable Short Circuit Detection
6. Bipolar electrosurgical cable insulation performance testing
7. Bipolar electrosurgical cable internal insulation performance testing.
Product Advantages of Insulation Testers：
High safety: Equipped with flow control, time limit, pressure resistance, and intelligent self-check.
2. More user-friendly and faster testing methods. Unlike other manufacturers' foot switches, our product features a high-voltage output button,
3. Wide range of outputs, versatile applications, and numerous functions.
Electrosurgical instrument insulation performance testing
2. Single-pole electrosurgical cable line conductivity test
3. Monopolar Electrosurgical Cable Insulation Performance Testing
4. Bipolar electrosurgical cable line conductivity performance testing
5. Bipolar electrosurgical cable line short circuit detection
6. Bipolar electrosurgical cable insulation performance testing
7. Bipolar electrosurgical cable internal insulation performance testing.
4. Comprehensive Inspection: The insulation tester from Yangchuan Yongchuang utilizes high-voltage pulse testing methods, ensuring that even pinpoint holes, cracks, and other damages inaccessible to regular testing pens and brush heads are detected without any omissions. The device comes standard with two brush heads and offers uniquely designed professional brush heads to meet customer needs, guaranteeing thorough, unobstructed, and error-free inspection.
5. Protection for Surgical Instruments: Most insulation testers on the market use industrial-grade pulse high-voltage detection, which poses a potential danger to expensive instruments with mirrors and light sources when the current passing through the instruments is too high. Yongchuang Medical's medical insulation tester employs a patented ultra-low pulse current detection technology, exerting a very low power on the instruments, ensuring their safety.
3. Equipment Dimensions: The machine's external dimensions are 225*200*105mm, featuring a portable design that saves labor and time, as well as occupying relatively less space during use.
4. Battery Capacity & Type: This model is equipped with a polymer lithium-ion battery pack from a well-known domestic brand, which is characterized by its small size, light weight, high capacity, and long lifespan. A single charge provides over 160 hours of continuous use. The battery pack features a professional charging and discharging circuit board instead of traditional fuses, allowing for self-recovery from short circuit protection and minimizing maintenance and repairs during later use.
5. Appearance and Material: The machine's shell is made of ABS alloy injection molding, which boasts excellent performance. The surface is hard and wear-resistant, making it easier to clean off dirt. Tests have shown that the shell can easily support the weight of an adult male, ensuring the safety of the equipment.

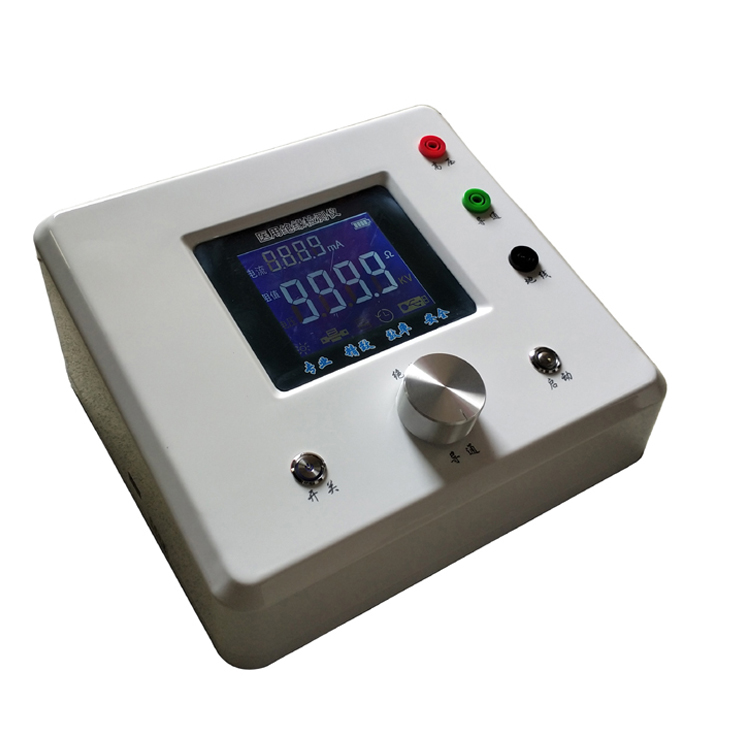

6. LCD Type: This unit features a high-end VA LCD screen (LCD VT+TN) currently available in the market, with a 3.8-inch large font display that is clear, prominent, and easy to understand. Remaining battery power is displayed simultaneously with graphics and percentage numbers for added intuitiveness.
7. Half-hour Auto-Shutdown: During operation, if the operator is busy, the equipment will automatically shut down after half an hour of inactivity. This feature is highly intelligent, protecting battery performance while reducing the need for frequent on/off operations during work.
Medical Insulation Tester Product Technical Parameters:
1. Test Voltage DC: Linear stable output of 0-10KV
2. Power: 1W
3. Weight: 0.8 kg
4. End-of-line short-circuit output current: Less than 0.1mA
5. Equipment Dimensions: 203*100*42
Output Voltage: Stepless voltage regulation, adjustment range: 0~10kV (satisfies peak voltage conditions for electrical equipment detection) linearly stable output
Output Voltage Accuracy: ±2%; 0.01kV
3. Discharge Current: < 0.1mA (End of Tester) - Ensures Operator Safety
4. Conductance resistance range: 0~999.9Ω
5. Conductance resistance accuracy: ±2%; ±1.0Ω
6. Display Content: Capable of displaying output voltage, on-state resistance, and set current.
7. Testing Method: Handheld handle testing, different probes are required to test various equipment.
8. Power Source: Portable 12V high-capacity battery, power-on runtime ≥ 48 hours.
9. Alarm Methods: Sound and light alarms.
10. Power Supply Battery: Polymer Lithium-ion Battery, 13000mAh.
11. Display Type: LCD VT+TN.
12. Operating Mode: Constant Current, High Impedance, Forming Conductive Loop.
13. Discharge Protection: Automatic shutdown of high-voltage output after continuous high-voltage discharge for 2 seconds.
14. Main Unit Dimensions: 225*200*105mm
15. Main Unit Weight: 2.56 kg.

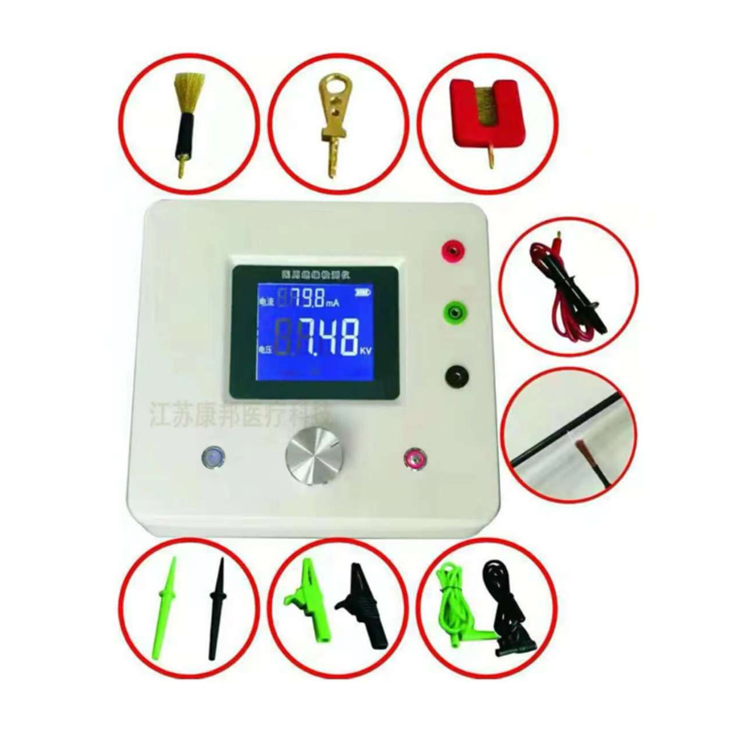

16. Standard Accessories: Brush probe, Ring probe, Needle probe, Standard electrode connector, Pointed jaw alligator clip connector.
