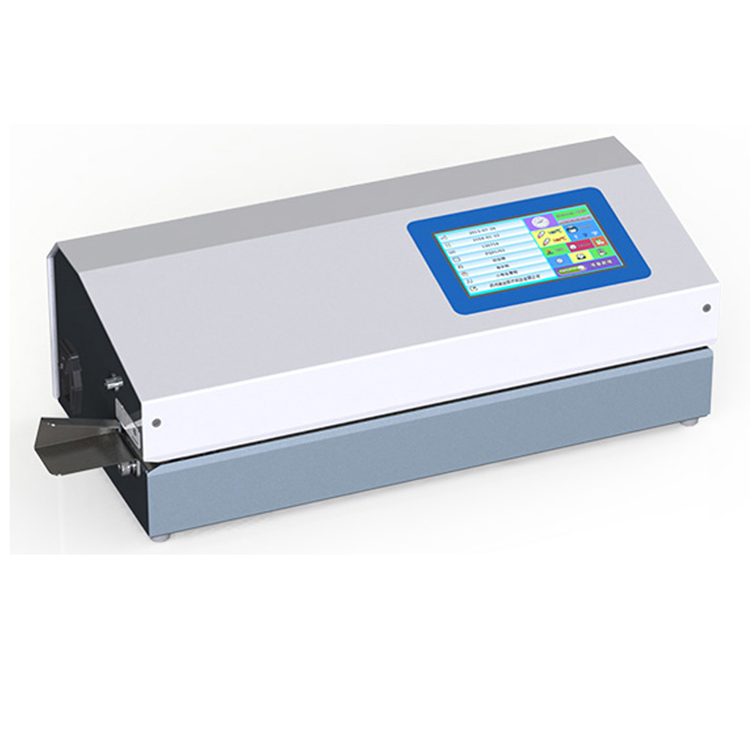

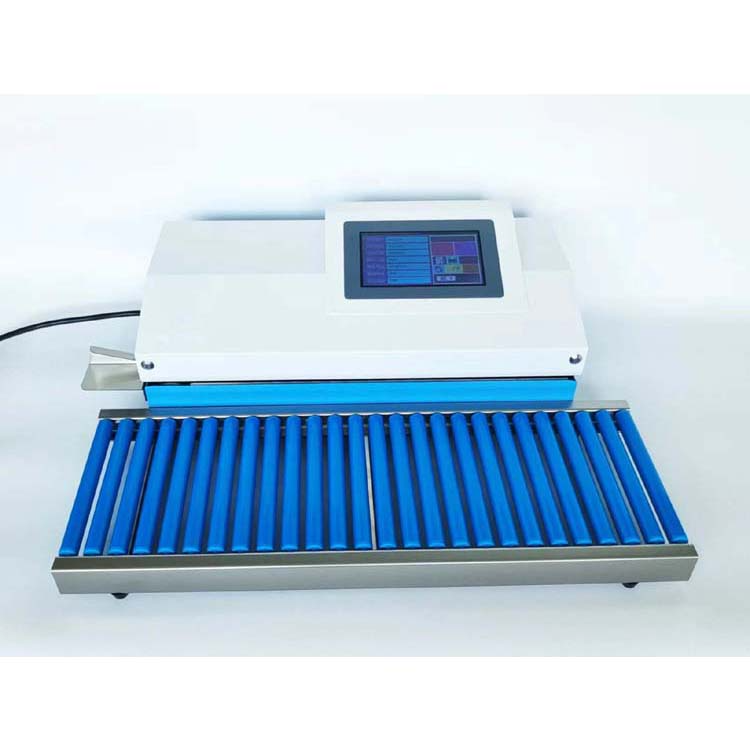

Product Name: Traceable Printing Medical Sealing Machine (Touch Screen)
Model: YC-200D
Price: 1000.00 RMB
Key Features of Traceable Printing Medical Sealing Machine:
7" color LCD touch screen, graphical operating interface, bilingual (English and Chinese) operating system, one-touch switch. Features include English/Chinese print switching, keyboard input control, built-in clock and adjustable parameters with auto-saving function.
The unit can be operated using the built-in color touch control panel, allowing for various input methods without the need for an external computer. It enables setting or modifying operating parameters, operator, department, item names, and custom content for printing. Simultaneously, the sealing machine prints the corresponding settings.
Self-contained print parameter database, accessible via the sealing machine Interface for recording and reading sealing parameters, enabling storage of sealing and printing information up to five million times for easy traceability and inquiry.
View historical records online via the operational interface.
Self-contained sequential (descending) seal counter, capable of counting seals from 0 to 9999; features special functions such as print margin, print interval symbol, print interval length, etc.
Quick heating and cooling design: Equipped with microcomputer-controlled heating and cooling mechanisms, reducing the waiting time for the sealing temperature to quickly rise or drop from low to high or from high to low, highly energy-efficient, meeting the needs of rapid temperature transitions in a fast-paced work environment.
Computer intelligent temperature control design, operating temperature range 60~220°C, with arbitrary heating settings. Temperature control accuracy less than ±1%; pre-set four common temperatures of 60°C, 120°C, 180°C, and 220°C, allowing for quick switching according to daily user needs, facilitating rapid selection of sealing temperature.
When the sealing temperature exceeds the working temperature setting range by ±4℃, the machine will automatically stop operation, effectively ensuring the quality of the seal and the safe operation of the equipment.
Utilizes an advanced floating constant pressure sealing structure design, accommodating sealing requirements for both three-dimensional bags and bags of various thicknesses.
Fault automatic alarm indicator, capable of automatically detecting the working process, with various faults automatically alarming or prompting.
Battery life and standby temperature are adjustable, featuring intelligent standby recovery, allowing for rapid return to working temperature, reducing waiting time.
Advanced flat ceramic heating elements with quick heating, even heat distribution, high-temperature resistance, long lifespan, and high thermal efficiency.
Under operational certification status, it is possible to print the test time, sealing temperature, pressure, speed, sealing time, operator, and equipment number in both English and symbols.
YC-200D Traceable Printing Medical Sealing Machine (Touch Screen) Technical Specifications
Sealing Speed: 10 m/min Seaming Width: 12 mm
Seal Flange: adjustable from 0 to 35 mm Maximum Current: 3.2A
Operating Temperature: adjustable from 60 to 220℃ Fuses: 5A x 2
Temperature Control Accuracy: ≤ 1% Power: 500 W
AC Power: 220V 50Hz | Dimensions: 560×260×220mm
Printing System Features
The device features a dual operating system in both Chinese and English, allowing for easy switching. In Chinese mode, it supports printing of Chinese characters and symbols, while in English mode, it enables printing of English characters and symbols.
Multilingual printing capabilities in Chinese, English, numbers, and special characters compliant with the "YY0466-2003 Symbols for Medical Device Labels, Marks, and Information Provided," catering to the Ministry of Health's requirements for sterilization date, expiration date, sterilization batch, sterilizer number, operator code and name in Chinese characters, packaged items, department names, and various other printing functions.
Achievable: Printing of icons for destruction, non-reusability, sterilization, etc.
The sterilization date and expiration date can be automatically adjusted according to the settings, with leap months and different-sized months automatically adjusted.
Equipped with a sealing machine and a bilingual printing system, featuring two 24-pin printers. In case one printer encounters an issue, it automatically switches to the backup printer.Prints clearly, easy and quick to set print items, adjustable print font width, convenient for printing more content on relatively narrow bags, print function can be turned off with one click or closed for specific items as needed, flexible, convenient, and quick.
The system will provide the printing width value based on the selected print content, automatically calculate the minimum print bandwidth, and assist the operator in determining the number of items before printing to choose the appropriate paper-plastic bag. It also reminds the operator if the paper-plastic bag width is insufficient before sealing.
