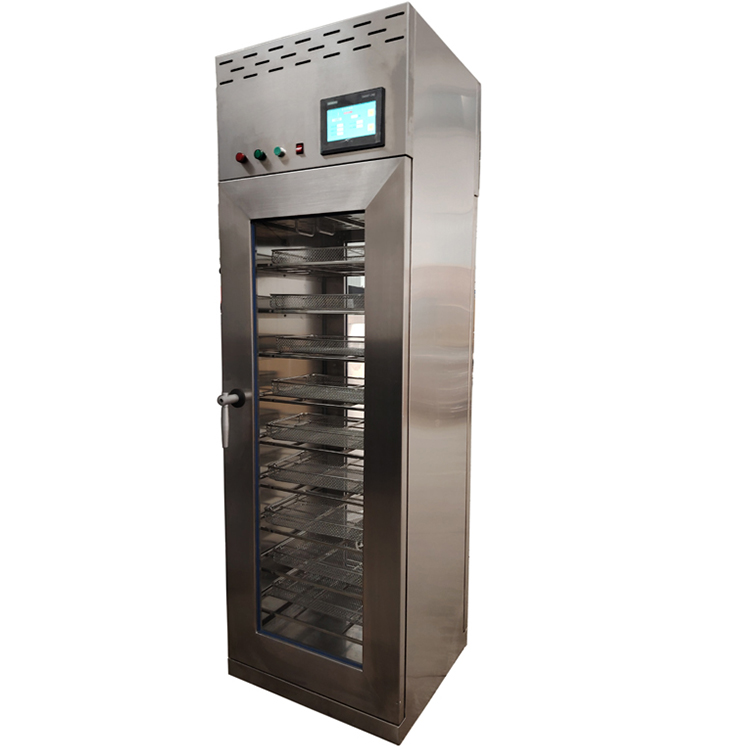

Rapid Medical Dry Storage Cabinet

Product Brand: Yangyang Yongchuang Medical

Manufacturer of the product: Yangyang Yongchuang Medical

Product Price: $1000.00

Model: YC2011-400/600

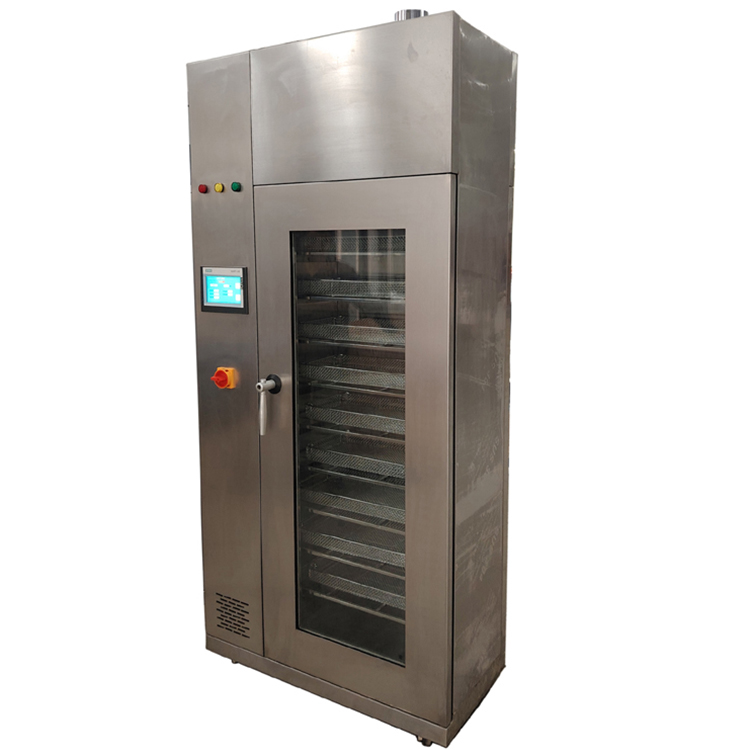

Product Introduction: This is a large-capacity comprehensive medical drying equipment developed by our company in response to market demand. It is used for drying surgical instruments and glassware, featuring an aesthetically pleasing design and simple, flexible operation. The drying temperature can be set between 40°C and 90°C. The drying time can be set from 0 to 9999 seconds, allowing users to freely adjust according to their needs. The equipment comes in both single and double door specifications.

This product's drying cabinet has altered the air intake system structure, completely resolving the issue of slow and incomplete drying at the bottom of the drying trays in similar products, which mainly rely on drying conduits. The equipment utilizes independent open programs, truly enabling it to serve as both a specialized drying cabinet for drying conduits and a universal drying cabinet for both conduits and instruments. It is a highly cost-effective device.

Key Product Features:

1. Application Scope and Significance of Medical Drying Cabinets

Hospital central supply rooms, operating rooms, and other departments requiring item dryness. Suitable for hospitals or health departments to dry surgical instruments, also for use in research units and laboratories; it is the ideal equipment for drying medical devices such as glassware, stainless steel instruments, and piping.

2. Processing Capacity

Equipment handling 44 endoscope tubes/44 humidification bottles breathing tubes, or 9 DIN standard instrument trays at a time.

3. Control System

Utilizing Siemens series main chip control, specific configuration changes will not be notified routinely. Equipped with a 7.2-inch touch screen display, it operates reliably and stably. It comes with 10 built-in programs, with adjustable operating parameters for flexible and convenient operation!

4. Hull Structure: The hull is made using a splicing molding method, resulting in minimal overall deformation. The hull height is 1620mm, meeting the length requirements of various conduits and preventing contact with the bottom during the drying process. An additional circulating air duct is added between the inner and outer hulls to create a recirculating heating drying method, significantly enhancing the drying efficiency.

5. Wind Pressure Switch: Equipped with a wind pressure switch for control. Minimum startup pressure: standard 20Pa, adjustable set point and gap, minimum startup gap 10Pa, range 20-300Pa. In case of fan failure or the opening of the sealing door during operation, the wind pressure switch activates, the program stops running, an audible and visual alarm is triggered, and normal operation can only resume after the fault is resolved.

6. Overheat Protection: The equipment features fault detection, protection, and alarm functions for its heating system, utilizing a well-known brand's overheat protector. During the protection phase, the program stops running, and normal operation can only resume after the fault is resolved.

7. Equipped with 3 fans, 6 heating tubes, and a total power of 10kw, it dries an equivalent amount of goods faster, more efficiently, and more thoroughly.Product Description:

1. The cabinet of the drying cabinet is made of high-quality 304 stainless steel, featuring an insulating layer to effectively prevent heat loss. The door is equipped with a glass window, allowing for real-time observation of the internal operation.

2. Technical Specifications:

Dimensions (W*H*D): 973*2150*480mm

Cabin dimensions (W*H*D): 603*1602*373mm

3. Weight (empty): 300 Kg

4. Structure: Vertical.

5. Power Supply: 380VAC, 50Hz

6. Environmental Temperature: 5-4°C

7. Relative Humidity: Not greater than 90% at 20°C.

8. Air heating tube power consumption: 9 kW

9. Dryer Fan Power Consumption: 900W

10. Maximum Power: 10KW Medical Dryer Configuration List: This product consists of a water collection pan, cabinet door, door glass, shelves, door handle, storage basket for the dryer (optional with DIN instrument cleaning tray), display operation panel, air switch, exhaust pipe, and casters.
