Polytetrafluoroethylene (PTFE)Fluorinated Ethylene(Poly tetra fluoroethylene, abbreviated as PTFE), commonly known as the "Plastic King," is a material derived from tetrafluoroethylene.Fluorinated EthyleneHigh molecular polymer obtained through monomer aggregation. White, waxy, semi-transparent, with excellent heat and cold resistance, can be used for long periods at temperatures ranging from -180 to 260°C. This material features resistance to acids and alkalis, as well as to various organic solvents, and is almost insoluble in all solvents. At the same time, polytetra...Fluorinated EthyleneCharacterized by high-temperature resistance and an extremely low friction coefficient, it serves as an ideal coating for water pipes, not only providing lubrication but also being easy to clean.

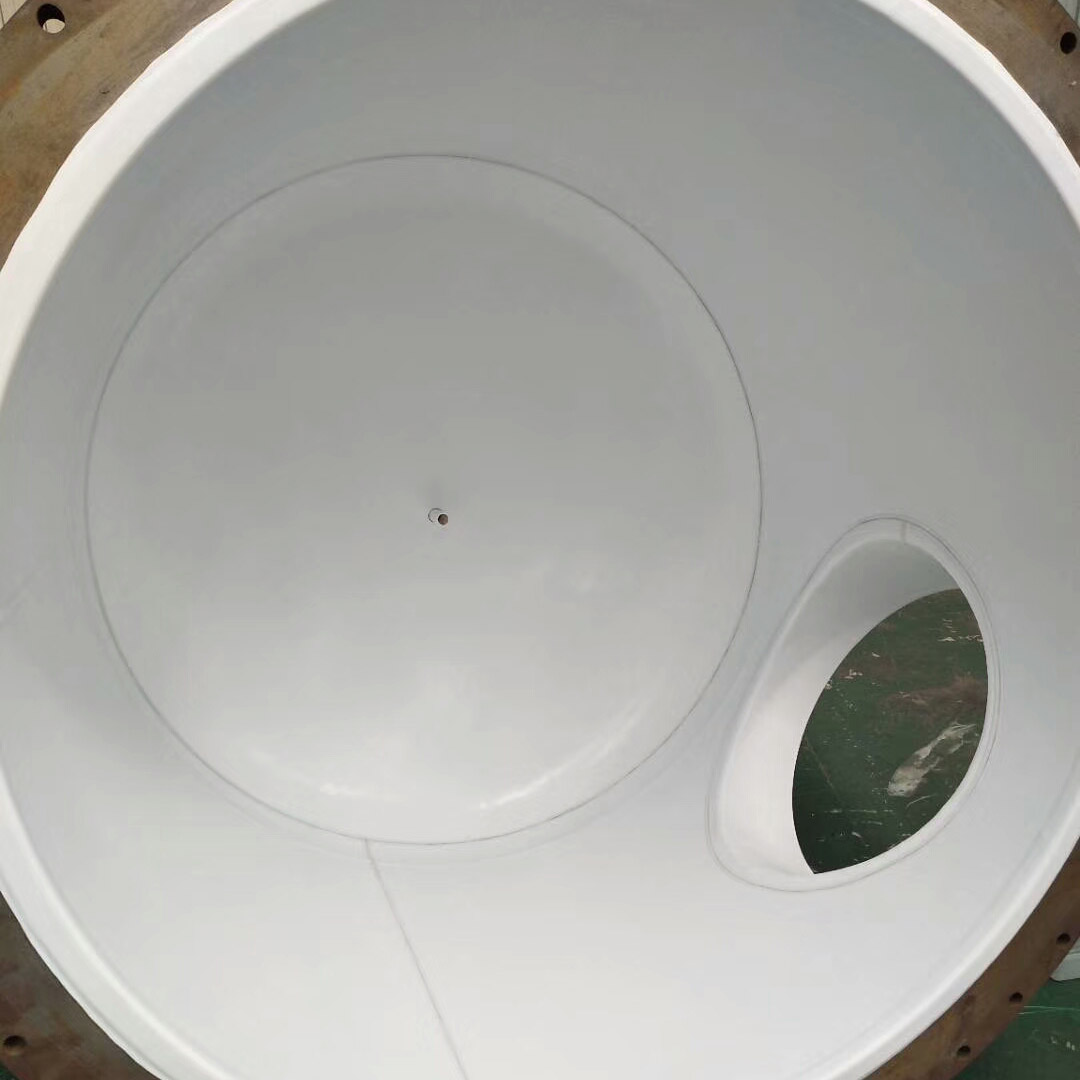

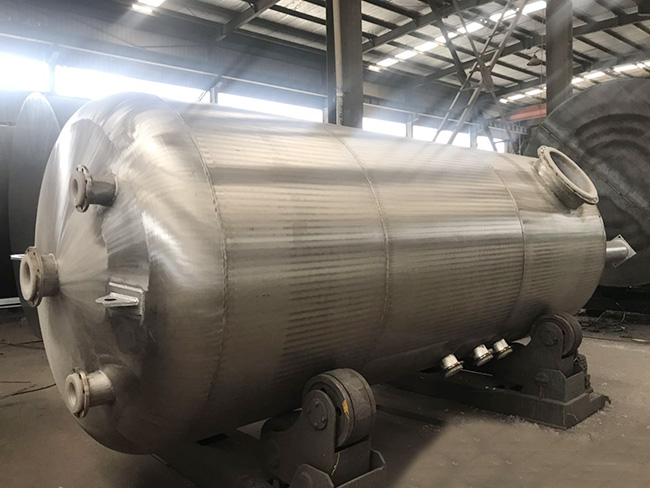

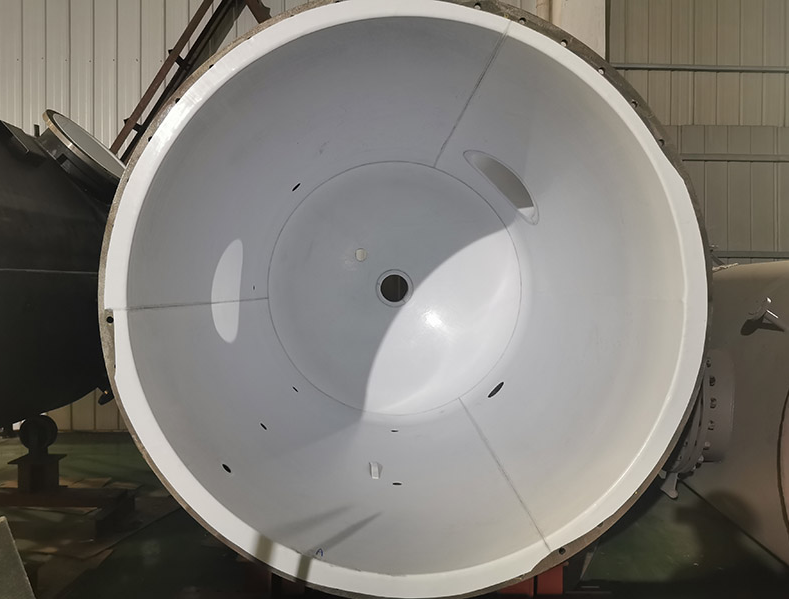

Steel-lined PTFE (Teflon) tanks are made with a metallic substrate (carbon steel, stainless steel) and can be manufactured into composite storage tanks with steel-lined PTFE under advanced technology, including the internal structure of the PTFE composite tank, connections, manholes, and level gauges. This process completely isolates the material from the metallic tank, providing corrosion resistance, insulation, and more. Steel-lined PTFE composite tanks can be categorized by process into plate-lined PTFE composite tanks, roll-coated F4 composite tanks, and spray-coated F4 composite tanks. PTFE is a special material in engineering plastics, known for its excellent comprehensive properties, high rigidity, low creep, high mechanical strength, good heat resistance, and excellent electrical insulation, making it suitable for long-term use in harsh chemical and material environments. The performance of PTFE mainly depends on the chemical composition of the high polymer compound. With a relative molecular mass, molecular structure, and physical state, PTFE exhibits the following properties: low density, high strength, good electrical insulation, good chemical stability, and excellent wear and lubricity. Steel-lined PTFE storage tanks meet both corrosion resistance and equipment strength requirements, have been widely recognized by enterprises, and offer good performance, long service life, and effective solutions to many challenges encountered in the production process.
PolytetrafluoroethyleneFluorinated EthyleneNature and Stability
Stable at room temperature and pressure, avoid moisture, heat, and high temperatures. No true melting point; decomposes slowly into gas above 450°C. At 327°C, mechanical strength suddenly disappears. Insoluble in any solvent. In addition to reacting with molten alkali metals, it is not attacked by any substance, and remains unchanged even when boiled in hydrofluoric acid, aqua regia, or fuming sulfuric acid, or sodium hydroxide.
2. White, odorless, tasteless, and non-toxic powder, commonly known as the "King of Plastics." It boasts excellent chemical stability, corrosion resistance, sealing properties, high lubricity and non-stickiness, electrical insulation, and good resistance to aging. Withstanding high temperatures, the operating temperature can reach up to 250°C. Resilient in low temperatures, it maintains good mechanical toughness even at -196°C, retaining a 5% elongation rate. Corrosion-resistant, it shows inertness to most chemicals and solvents, withstanding strong acids and alkalis, water, and various organic solvents. Excellent weather resistance, with the best aging life among plastics. High lubricity, it has the lowest coefficient of friction among solid materials. Non-adhesive, it has the smallest surface tension among solid materials, not adhering to any substance. Non-toxic, it has physiological inertness and can be safely implanted into the body as artificial blood vessels and organs without adverse reactions.
Process for manufacturing steel-lined PTFE storage tanks
1. Extra-large equipment does not require segmentation. Construction can be carried out with a D500mm manhole. The lining thickness is 3mm to 5mm, with a temperature resistance of 190 degrees and wear resistance.
2. Surface grinding (remove sharp corners, inspect for any missing welds or weld seams)
3. High-Temperature Degreasing (completely removes potential impurities and oil from the metal to ensure the adhesive's bonding strength)
4. Sandblasting roughening (using air pressure of not less than 10 Mpa for metal surface sandblasting to achieve optimal adhesion)
5. Apply imported adhesive (evenly, the last step before lining with PTFE board)
6. Fluorine board waxing treatment (apply glue within 10 hours of waxing the fluorine board)
7. Lining Sheets (The lining process must be carried out under high temperatures and is a crucial step for the four-fluorine storage tanks, requiring the expertise of professional personnel.)
8. Four-fluorine plate weld seams welding (The seams are welded together using special tools, with an adhesion level of 99% or higher.)
The steel-lined PTFE storage tank can store highly corrosive liquids such as strong acids, strong bases, mixed acids, organic acids, inorganic acids, etc., and has a higher temperature resistance.
Steel-lined PTFE storage tanks, also known as steel-lined polytetrafluoroethylene (PTFE) tanks, steel-lined F4 tanks, steel-lined PTFE tanks, steel-lined plastic PTFE tanks, steel-lined plastic polytetrafluoroethylene tanks, and steel-lined plastic tanks.
