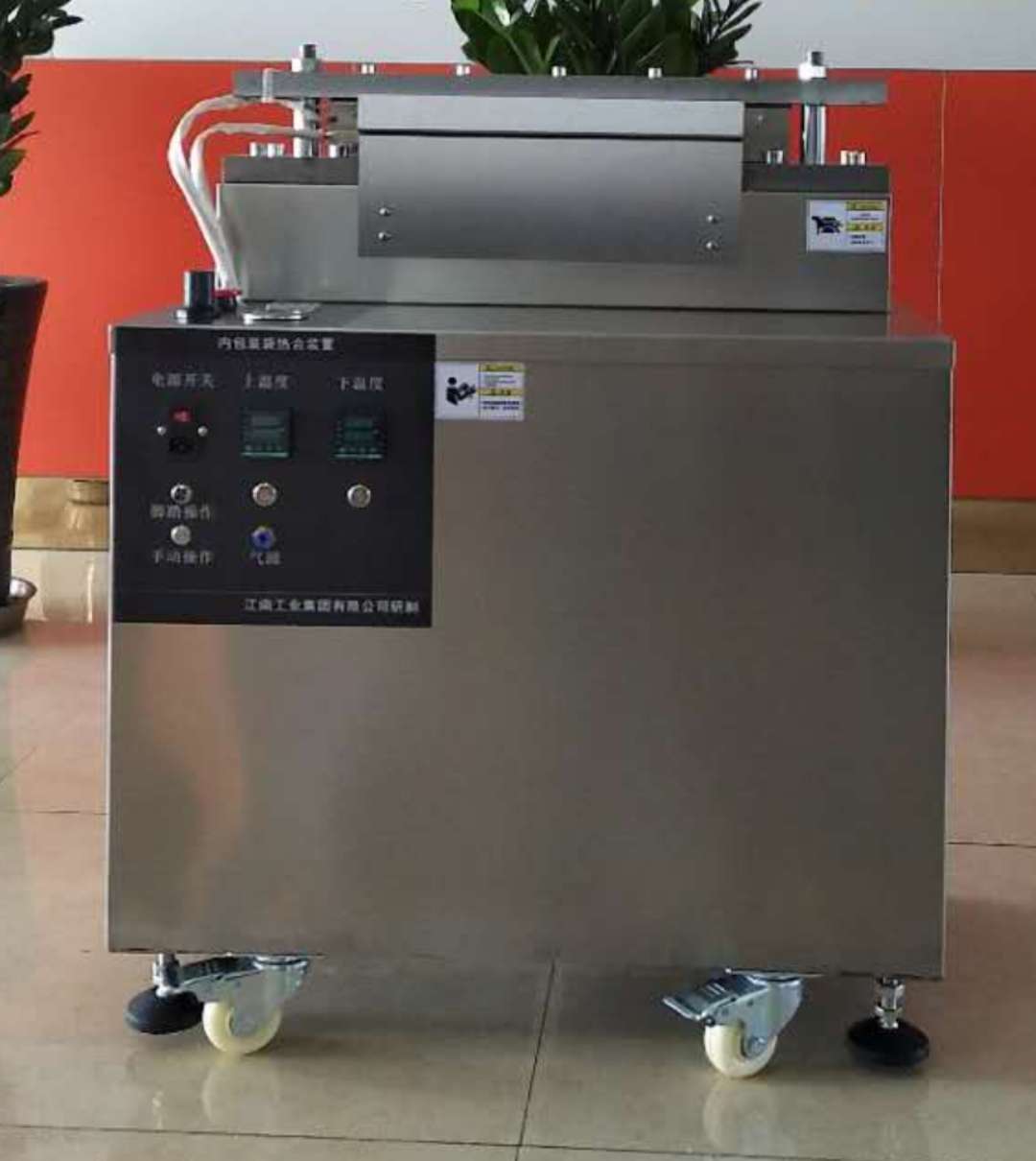

GX-YF-500 Packaging Bag Sealing Machine Heat-sealing packaging bag machine

     Product Application:

This product utilizes hot melt sealing technology for bonding various packaging materials and other heat-sealable materials. Particularly suitable for thick materials, coated fabrics, coated fibers, and the sealing of cosmetic ends. The equipment features adjustable hot melt sealing temperature, time, and pressure settings. Its sealing process is widely used in packaging factories, food, pharmaceuticals, quality inspection institutions, research institutions, and other enterprises and organizations for production and laboratory applications.Product Features:

New design, crafted from premium stainless steel, durable and long-lasting.

2. Microcomputer control, LCD display.

3. Menu-driven interface, PVC operational panel.

4. Digital PID temperature control, with high temperature control accuracy.

5. Manual and pedal two-starting modes

6. Independent temperature control for top-bottom heat-sealed head

7. Quick disconnect heating tube power connector

Technical Specifications:

Bonding Temperature: Room temperature ~ 220℃/±2℃ + 1%

2. Heat-sealing Time: 0.1s - 999.9s

3. Heat sealing pressure: 0.05MPa to 0.7MPa (adjustable)

4. Heat-seal Area: 500mm x 10mm (other sizes available upon request)

5. Heat Sealing Heating Type: Dual Heating (can heat individually from top and bottom)

6. Gas Source Pressure: ≤0.7 MPa

Power: AC 220V 50Hz

8. Weight: Approximately 52 kg

9. Configuration: Main unit, foot switch.
