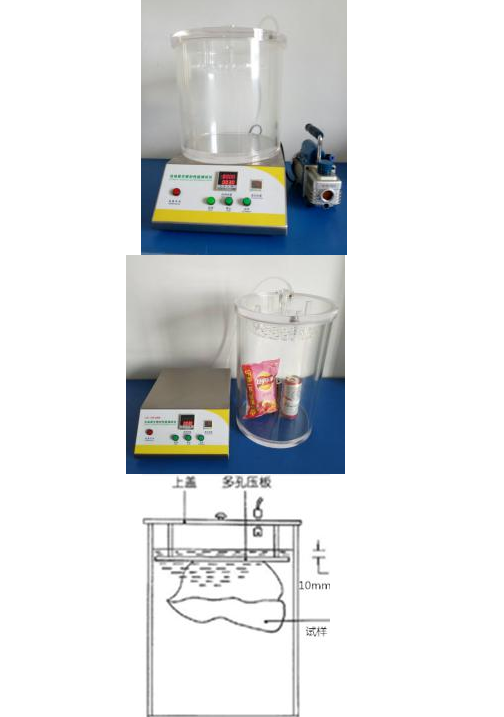

GX-MF1000 Full-Automatic Vacuum Sealing Performance Tester
The GX-MF Vacuum Sealing Performance Tester is a highly superior and cost-effective sealing performance tester with an elegant整机 design. The shell is made of high-quality stainless steel, and all air-sealing components are imported from Germany. The automatic control components are sourced from Japan. It boasts superior sealing performance compared to similar domestic models, featuring automatic disconnection of vacuum extraction, automatic pressure compensation, automatic prompts for test setup time, and long-term maintenance of the set vacuum value. The vacuum indicator control gauge is an original Japanese product, and the timer controller is a brand from an imported joint venture. It offers high vacuum and timing accuracy, and superior performance. It complies with GB/T 15171 "Testing Methods for Sealing Performance of Flexible Packaging" and ISO standards.
High-quality products must have: transparent drum body, reinforced drum cap, no photo editing, reliable viewing with video! Fully automatic machine
System Parameters: (See video instructions, welcome to request the video)
Fully automatic digital pressure seal gauge, arrives at set pressure, auto-stop, no operation required, auto-purge, auto-timing, auto-backflush.
Devotedly inspecting for any leaks in the product, it's the most cost-effective choice available!
Vacuum Drum Indication Range: 0～-100 kPa, Display Resolution: 0.1 kPa. Accuracy: 1%.
Vacuum extraction with automatic disconnection, automatic pressure compensation, and automatic prompt for test setting time.
Timer control range: 0-9999 seconds, adjustable at will, with a resolution of 1 second.
Test Setup: Any setting, default at 30 seconds upon machine factory shipment.
Power: 220V/50Hz
Exhaust pipe: Φ8mm high-quality imported from Taiwan TPU pipe
Power Safety Protection: Equipped with power safety protection measures.
Sealing Performance Standards: Compliant with national and international standards: ISO, GB/T 15171, ASTM D3078
Effective Vacuum Chamber Size: 300mm x 300mm (H) (Standard) | 300mm x 350mm (H) (Standard)
300mm x 360mm (H) (standard) | 300mm x 400mm (H) (optional)
400mm x 300mm (H) (optional) 500mm x 400mm (H) (optional)
600mm x 300mm (H) (Optional) 600mm x 500mm (H) (Optional)
Main unit dimensions: 490*300*250
Note: Φ600mm vacuum chamber with other heights and other special shapes, as well as special sizes, can be customized according to customer requirements.
Net Weight: 19 kg
Configuration: Host unit, Waterproof sticker, Sealing drum, Sealing ring, Sealing lid, Wire, Adhesive cup, Instruction manual, Certificate of conformity, Warranty card. Each item included in the set.
Tubes, 2 pieces.
