SJD - Lift Platform

A hydraulic goods elevator is a device powered by a hydraulic system, driven by hydraulic cylinders to achieve vertical transport of goods, widely used in factories, warehouses, shopping malls, hotels, airports, and other places for rapid, safe, and efficient transportation of goods between floors.

I. Features of the hydraulic freight elevator

1. Compact structure, high space utilization

• Hydraulic freight elevators require no counterweight system, offering high shaft utilization and are suitable for spaces with limited dimensions.
• The data center can be flexibly located near the shaft, occupying minimal space and reducing construction costs.

1. High load capacity, stable operation

• The hydraulic system delivers robust power, capable of supporting heavy loads (typically 1-50 tons), meeting industrial and commercial requirements.
• The lifting process is smooth with no shocks, suitable for transporting precision goods or fragile items.

1. High safety performance

• Equipped with multiple safety devices such as an overflow valve, emergency manual valve, pipeline burst valve, and oil temperature protection, ensuring safe operation.
• The electrical system is equipped with functions such as phase loss protection, phase mismatch protection, and overload protection to prevent accidents.

1. Low noise, energy-saving and environmentally friendly

• The hydraulic system operates with low noise, making it suitable for environments with high environmental requirements.
• Operates solely by gravity during descent, requiring no additional energy consumption, thus demonstrating significant energy-saving effects.

1. Easy installation and maintenance

• Low requirement for well shaft structural strength allows for brick-and-concrete well shafts, reducing civil construction costs.
• The hydraulic system is simple in structure, easy to maintain, and has a low failure rate.

Section II: Applicable Scenarios for Hydraulic Freight Elevators

• Industrial Sector: Factory workshops, warehouses, and logistics centers for vertical transportation of raw materials, finished products, and equipment.
• Commercial Sector: Shopping malls, supermarkets, hotels, for goods supply and equipment maintenance.
• Public Facilities: Airports, stations, and hospitals, used for the handling of luggage and supplies.
• Special locations: underground parking garages, mines, and docks, suitable for cargo transportation in complex environments.

Section 3: Technical Parameters of the Hydraulic Goods Elevator

Parameters: Load range from 1 ton to 50 tons, customizable to meet requirements. Lifting height usually not exceeding 50 meters, subject to shaft conditions. Speed range 0.1-0.5 meters/second, adjustable based on usage frequency. Carriage size customized design to accommodate various cargo dimensions. Power supply requirements: three-phase 380V, 50Hz, power configured based on load and speed. Safety features include: relief valve, emergency manual valve, pipeline rupture valve, overload protection, speed limiter, safety brake, etc.

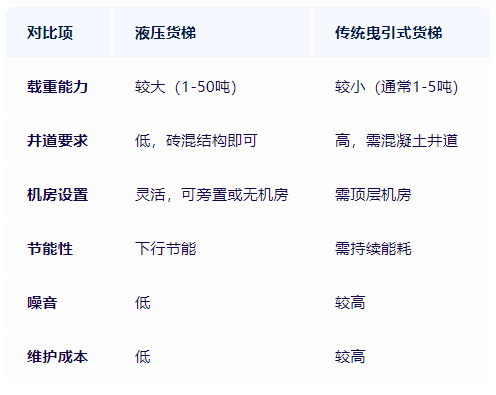

IV. Comparison of Advantages of Hydraulic Goods Elevators

V. Purchase and Usage Recommendations

1. Be Specific: Select the appropriate model based on parameters such as load capacity, lifting height, and usage frequency.
2. Brand & After-Sales: Choose well-known brands to ensure product quality and after-sales service.
3. Installation and Acceptance: Installed by a professional team and strictly inspected according to national standards.
4. Regular Maintenance: Schedule regular inspections of the hydraulic and electrical systems to ensure safe operation of the equipment.
