The ZSL-Ⅲ series vacuum feeding machine is our company's latest developed third-generation advanced vacuum feeding machine. It features fast feeding speed, long service life, easy operation, and clean hygiene, meeting the "GMP" requirements.
Product Features
Quick material loading.
Long continuous operating time.
No leakage, clean and hygienic, suitable for clean rooms.
Compact structure, easy to move, and simple to operate.
Equipped with quick-release clamps for easy assembly and cleaning, meeting the required specifications.
Product Overview
The ZSL-Ⅲ series vacuum feeding machine is our company's newly developed third-generation advanced vacuum feeding machine. It features fast feeding speed, long service life, ease of operation, and cleanliness, meeting GMP requirements.
Application Scope
*For powdery, granular (φ<5mm), and spherical materials.
*Used for feeding materials into various sealed containers and equipment such as 2D, 3D, bi-conical, V-type, etc.
Specs & Parameters
| Model/Parameters | ZSL-Ⅲ-2.2 | ZSL-Ⅲ-3.0 | ZSL-Ⅲ-4.0 | ZSL-Ⅲ-5.5 | ZSL-Ⅲ-7.5 |
| Working Pressure (KPa) | ＜18 | ＜20 | ＜22 | ＜28 | ＜31 |
| Airflow (m³/h) | 210 | 300 | 330 | 370 | 480 |
| Power (kw) | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
| Transportation Capacity (Kg/h) | 900-1200 | 1200-1500 | 1500-1800 | 1800-2100 | 2100-2400 |

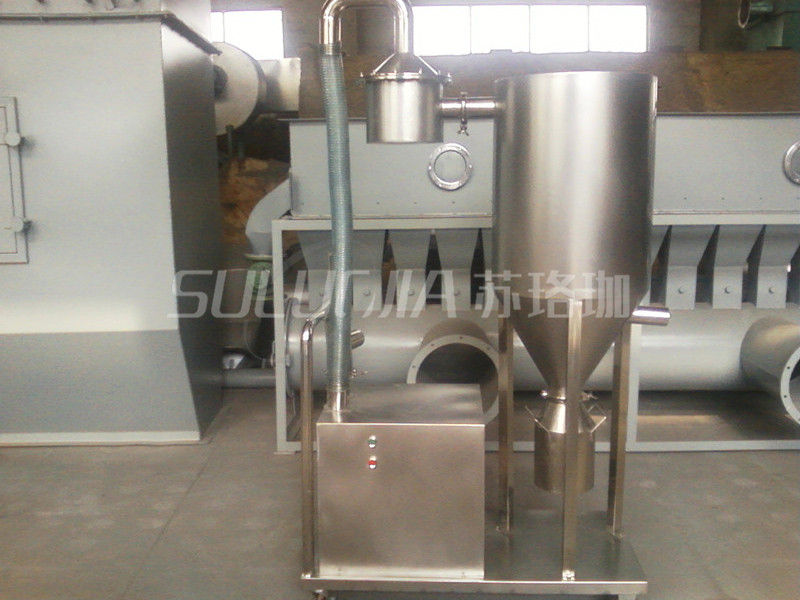

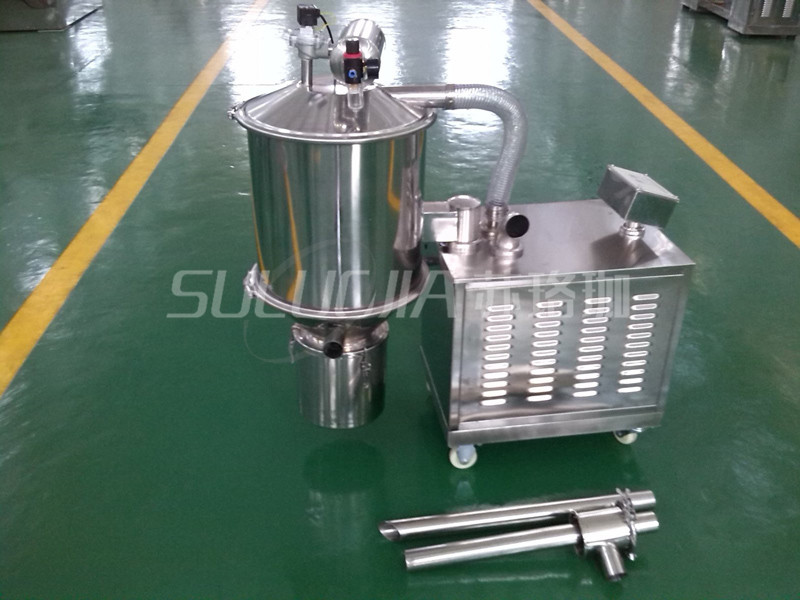

Image Gallery
