Working Principle
This unit is a novel horizontal intermittent vacuum drying equipment. Wet material is evaporated by conduction, and the scraper mixer continuously clears the material from the hot surface, promoting a recirculating flow within the container. After moisture evaporation, it is extracted by the vacuum pump.
Performance Features
The machine utilizes a large-area interlayer heating method, featuring a large heat transfer surface and high thermal efficiency.
The machine is set for mixing, which creates a continuous circulating state inside the drum, further enhancing the uniformity of material heating.
The machine is set for mixing, enabling smooth drying of paste-like, cream-like, and paste materials.
Suitable material
Materials for drying in industries such as pharmaceuticals, food, and chemicals:
Applicable to paste, paste-like, and powdered materials.
Required: Heat-sensitive materials for low-temperature drying.
Flammable, explosive, highly irritant, and highly toxic materials.
Materials requiring the recovery of organic solvents.
Specification Parameters
| Project | Model Type | ||||||
| Name | Unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| Work Volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating Area | m² | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| Agitator speed | rpm | 6-30 Variable Speed Range | |||||
| Power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Insulated Design Pressure (Hot Water) | MPa | ≤0.3 | |||||
| Tubular vacuum level | MPa | -0.09～0.096 | |||||
Note: Evaporation rate is related to the characteristics of the material and the hot inlet and outlet temperatures. Parameters may change with product updates; no prior notice will be given.

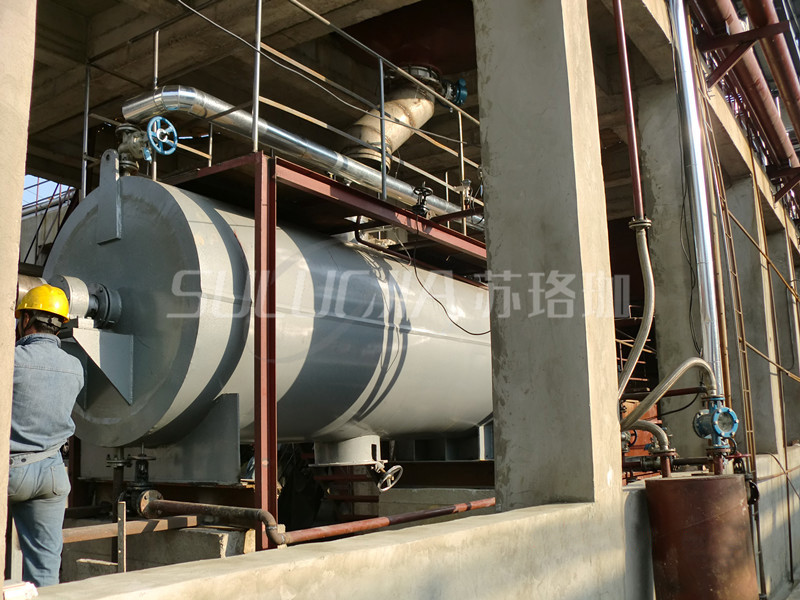

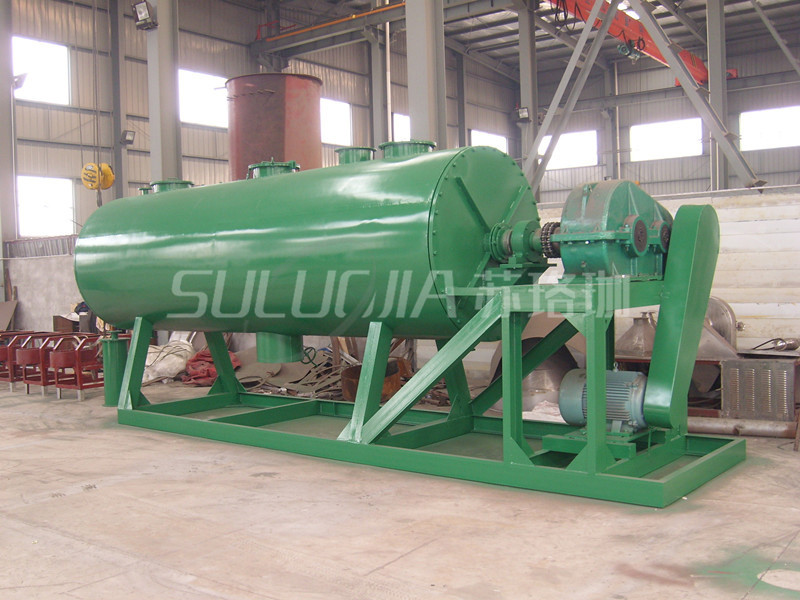

Image Gallery
