Product Introduction
This machine features a fully enclosed design, with all components made of stainless steel. It is equipped with a three-stage purification system, ensuring the filtered air meets a ten-thousand-level requirement. The cylinder and top are fitted with a cold wall device, keeping the wall temperature below 80°C. The drying tower is equipped with an air brush cleaning system. The traditional Chinese medicine extract powder dried by this machine will not exhibit coking or deterioration, significantly increasing the yield to over 95%. Additionally, it prevents mixing of drugs and sticking to the walls.
Working Principle
The High-speed Centrifugal Spray Dryer for Chinese Herbal Extracts is an application of centrifugal spray drying technology in the drying of specific materials. It utilizes a high-speed centrifugal atomizer to disperse the material into a mist, allowing for ample contact with hot air, achieving instant drying, and forming a powdered finished product.
Performance Features
The tower features a cold air jacket.
The tower is equipped with an automatic tamping device.
The tower and pipeline are equipped with quick-opening cleaning holes and drain holes.
Available with an automatic control constant-temperature feeding tank.
Available with manual high-pressure tower accessories.
The parts in contact with materials are made of stainless steel; (or fully stainless steel construction).
Materials are collected using a two-stage cyclone dust removal unit, or a single-stage one.
◎ Cyclone dust collectors and wet dust collectors;
Automated control and continuous device for inlet air temperature.
Available with air sweep device.
Specification parameters
| Model | ZLPG-15 | ZLPG-20 | ZLPG-25 | ZLPG-32 | ZLPG-38 | ZLPG-40 | ZLPG-47 | ZLPG-52 | ZLPG-58 | |
| Evaporation Rate | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Liquid Handling Capacity | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| Finished Product Output | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
| Moist material solid content | 18-25 | |||||||||
| Finished product moisture content | 3-5 | |||||||||
| Electrical Power | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
| Heating source | Steam + Electric | |||||||||
| Product Collection Method And once collection efficiency | A few or two points collection: One collection of small tricycle ≥ 95% | |||||||||
| Self-contained instrument | Automatic temperature and pressure control, regulation, and interlock alarm | |||||||||
| Inlet air temperature | 150-200 | |||||||||
| Air Discharge Temperature | 80-100 | |||||||||
| Dimensions | Long | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| Wide | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| (mm) | High | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 |
Note:
★Actual physical dimensions can be determined based on the customer's specific situation; the above dimensions are for reference only.
★The above evaporation rate is the maximum evaporation rate.

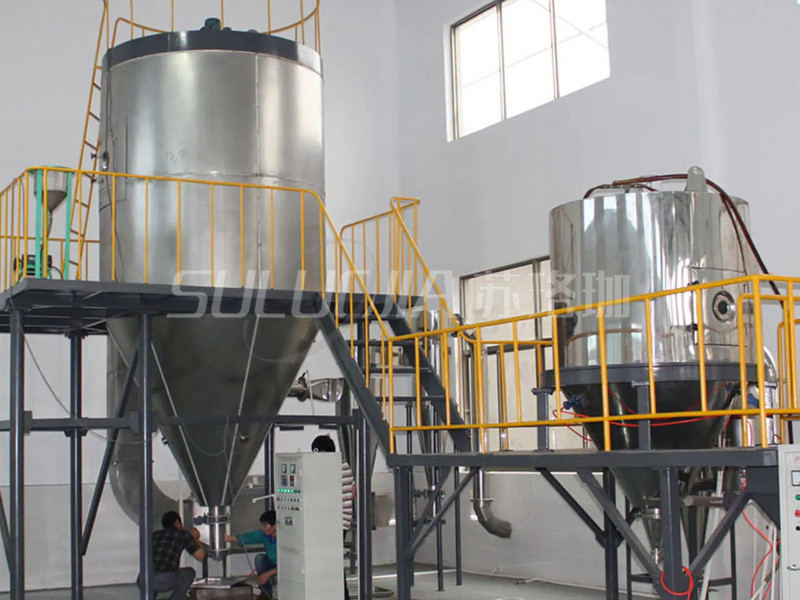

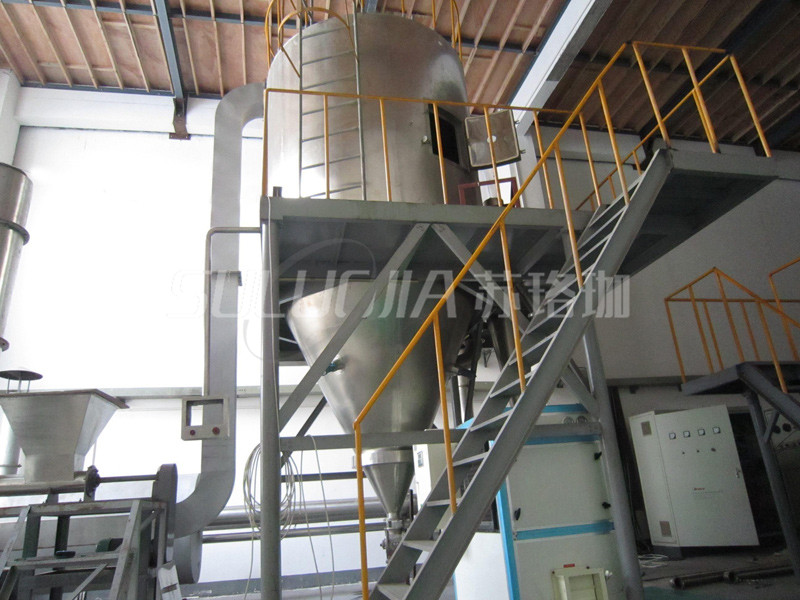

Image Gallery
