Working Principle
Vacuum drying involves drying the material under vacuum conditions and then heating it. If a vacuum pump is used to extract moisture, the drying process is accelerated.
Note: If a condenser is used, the solvent in the material can be recovered through the condenser. If the solvent is water, a condenser is not necessary, saving on energy investment.
Performance Features
The boiling point of the material solution is reduced under vacuum, which increases the heat transfer driving force of the evaporator, thereby allowing for a reduction in the heat transfer area of the evaporator for a given heat transfer quantity.
The heat source for the evaporation process can be low-pressure steam or waste heat steam.
◎ Evaporator heat loss is minimal.
Can be sterilized before drying, ensuring no impurities enter during the drying process, in compliance with GMP standards.
◎Static vacuum dryer; thus, the physical shape of the dried material will not be damaged.
Material compatible
Low-temperature drying suitable for thermosensitive materials that are prone to decomposition, aggregation, and deterioration at high temperatures; widely used in industries such as pharmaceuticals, chemicals, food, and electronics.
Note: Water-ring vacuum pumps are used in conjunction with mechanical boosters to enhance vacuum levels.
Order Instructions
Please select an appropriate vacuum dryer based on factors such as the initial and final moisture content of the dry material, temperature, vacuum level, drying amount, and drying time when placing an order. Within the same model of vacuum dryer, there are four heating methods available: steam, hot water, thermal oil, and electric heating. For example, to increase the drying amount, you can appropriately add more layers of drying racks. Please promptly inform our factory of this request.
Our factory can provide and install accessories for the vacuum drying system mentioned in the instruction manual. Please specify when placing your order.
Our company can provide design, manufacturing, and installation services for special requirements in vacuum drying systems proposed by customers.
Our equipment guarantees quality to users with three promises, all accessories are provided long-term, please rest assured, users.
Structural diagram
Specs and Parameters
| Specs Name | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 |
| Interior dimensions of the drying chamber | Ф600×976 | Ф800×1247 | Ф1000×1527 | Ф1400×2054 | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
| External dimensions of the drying cabinet | 1135×810×1024 | 1700×1045×1335 | 1693×1190×150 | 2386×1675×1920 | 1513×1924×1720 | 1513×1924×2060 | 1513×1924×2500 |
| Rack Layer Count | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
| Interfloor spacing | 82 | 82 | 102 | 102 | 122 | 122 | 122 |
| Baking tray size | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 |
| Number of baking trays | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
| Internal pressure applied in the baking rack tube | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| Drying Rack Operating Temperature | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
| Inside box empty vacuum degree | -0.09～0.096 | ||||||
| At -0.1 MPa, heating temperature 110oAt C, the rate of water vaporization | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| When using a condenser, vacuum pump model, power | 2X-15A 2KW | 2X-30A 3KW | 2X-30A 3KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-90A 2KW |
| Without a condenser, vacuum pump model, power | SK-0.8 2.2KW | SK-2.7 4KW | SK-3 5.5KW | SK-6 11KW | SK-3 5.5KW | SK-6 11KW | SK-6 11KW |
| Drying cabinet weight | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
Note: Water ring vacuum pumps are used in conjunction with mechanical boosters to enhance vacuum levels.

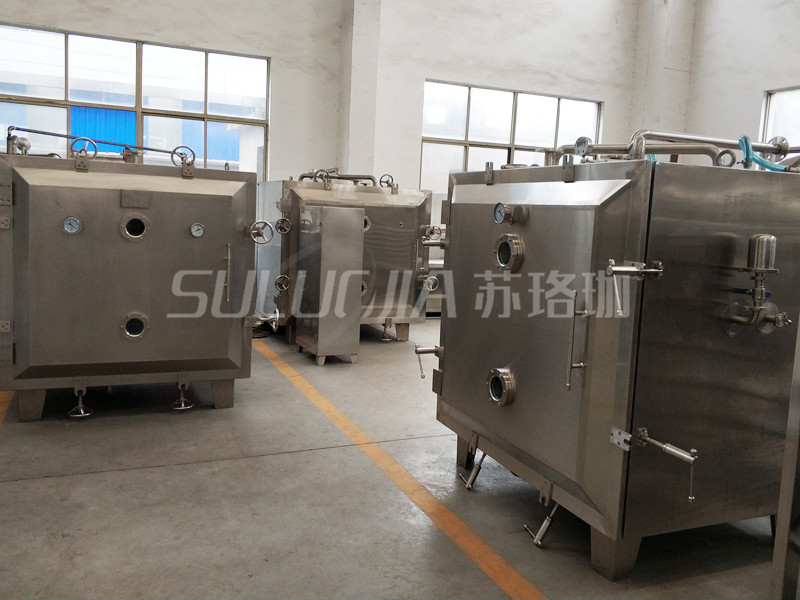

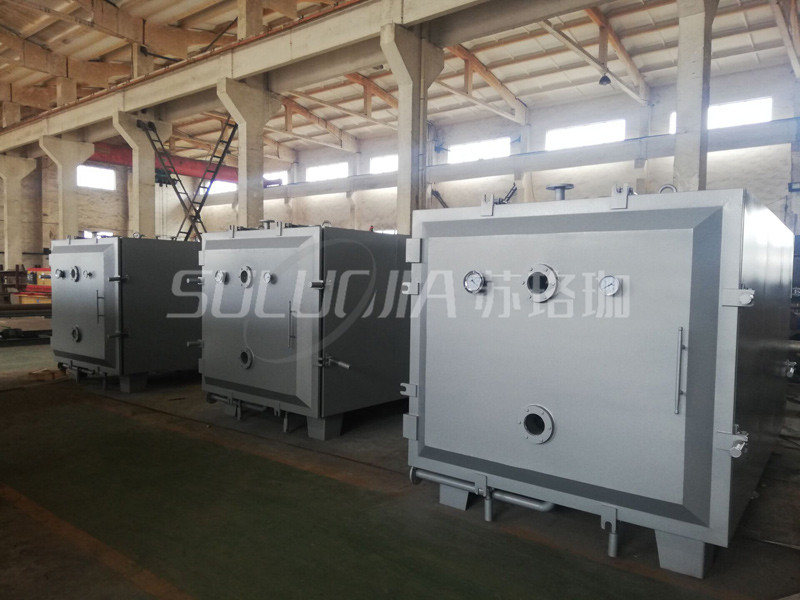

Image Gallery
