Layout drawing

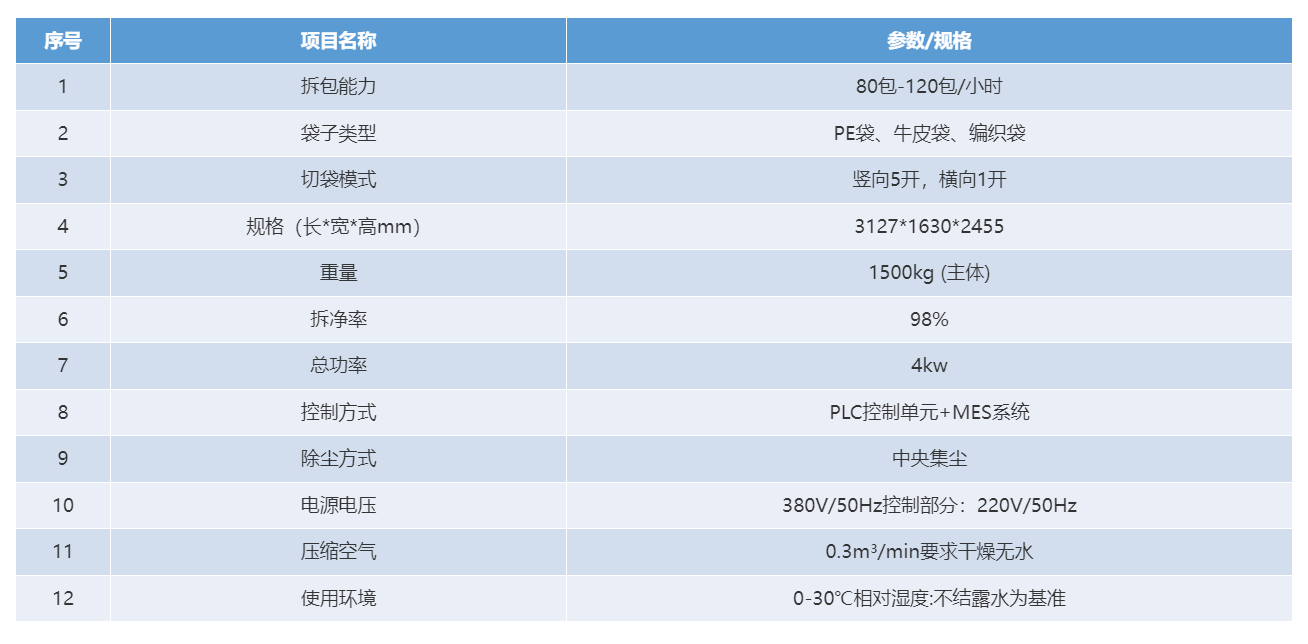

Technical Specifications

Overview:

The Smart Bag Unpacking System is an intelligent system under the automated, digital, precise, dust-free, and efficient framework management, based on AI and MES data analysis technology.

Features:

★ Safety & Environmental Protection: Sealed unpacking, centralized dust treatment

High unpacking efficiency: Unpacking speed up to 80-120 packs/h

★ Fully Automatic Operation: Small footprint, unmanned continuous production

★ Wide Application Range: Capable of handling various basic materials, suitable for bags of all sizes and materials, and meets requirements for environments where exposure to toxic, flammable, highly corrosive, and high-dust conditions is not advisable for personnel.

★ Easy to Maintain: Modular assembly, simple mechanical structure, and design with no blind spots

Operating Principle:

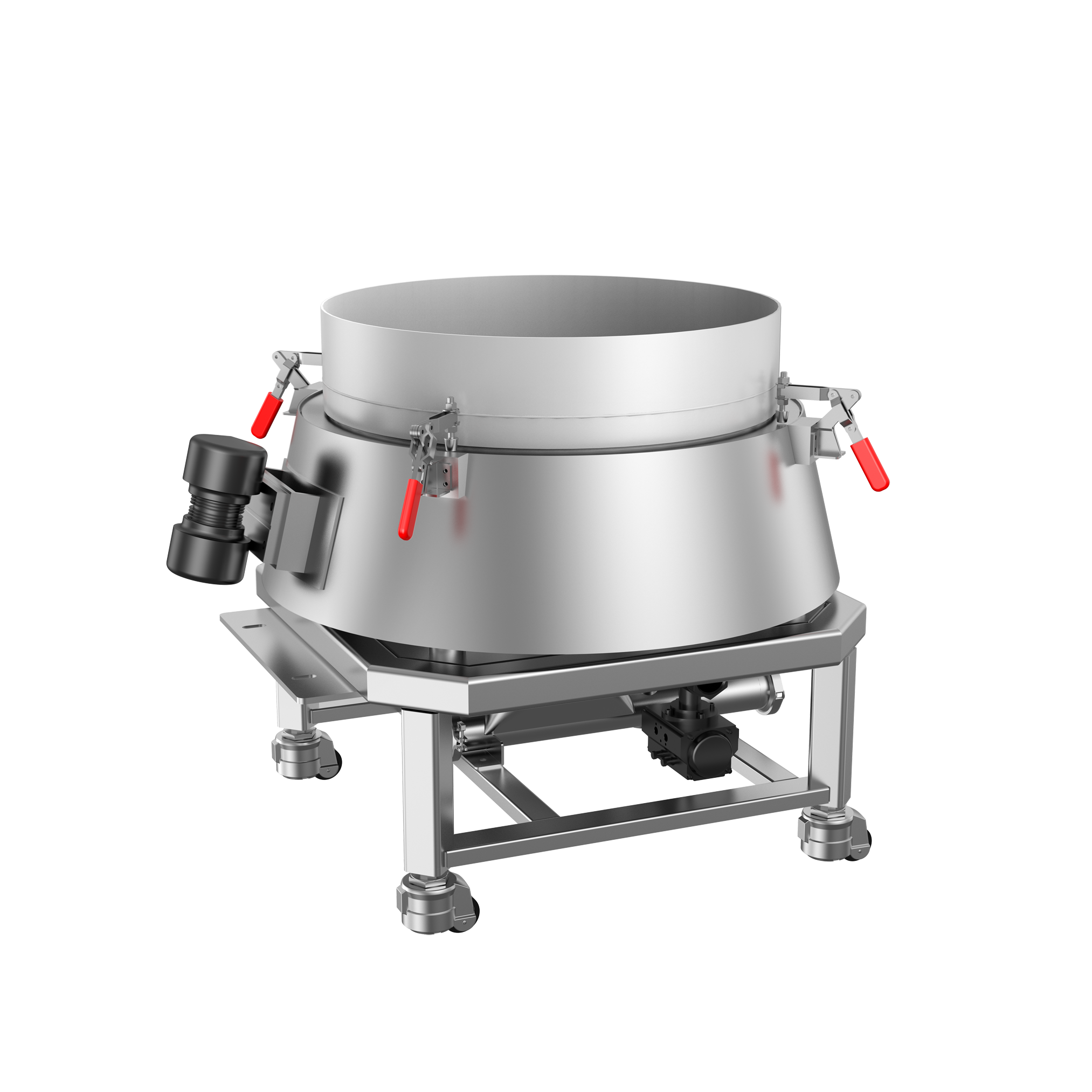

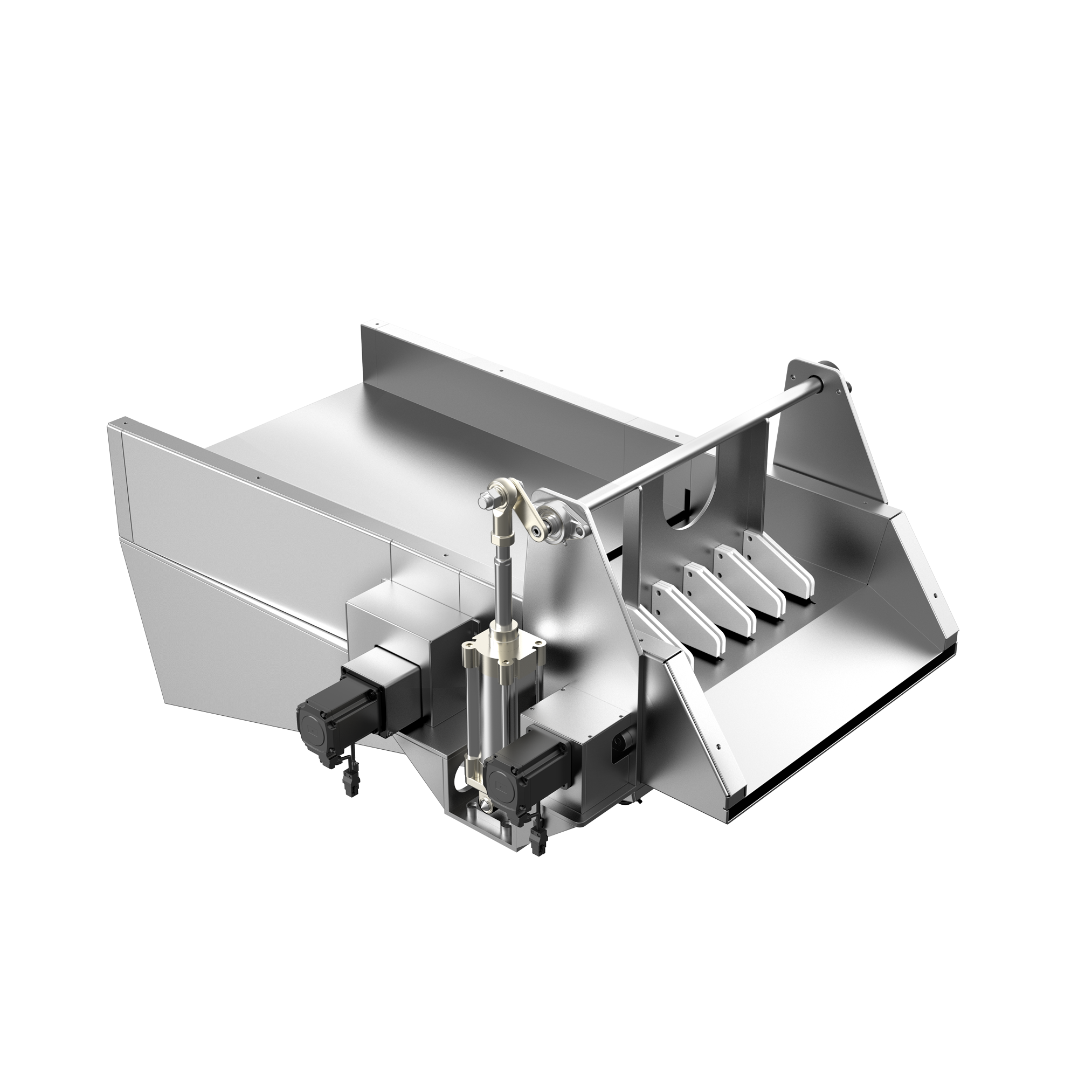

The packet-grabbing robot picks up materials from the tray and feeds them onto a leveling conveyor for bag flattening. It then elevates the materials to the entry of the unpacking machine. As the material bags fall under gravity, an in-built cutting device on the equipment opens them. Subsequently, an automatic shake bag device ensures the materials are fully unloaded. The materials are then sifted through a vibration sieve and transported to the next process. The discarded bags are flipped by the automatic shake bag device into the waste bag collection area, pushed into the waste bag collector by an air-powered pusher, completing the entire intelligent feeding process.
