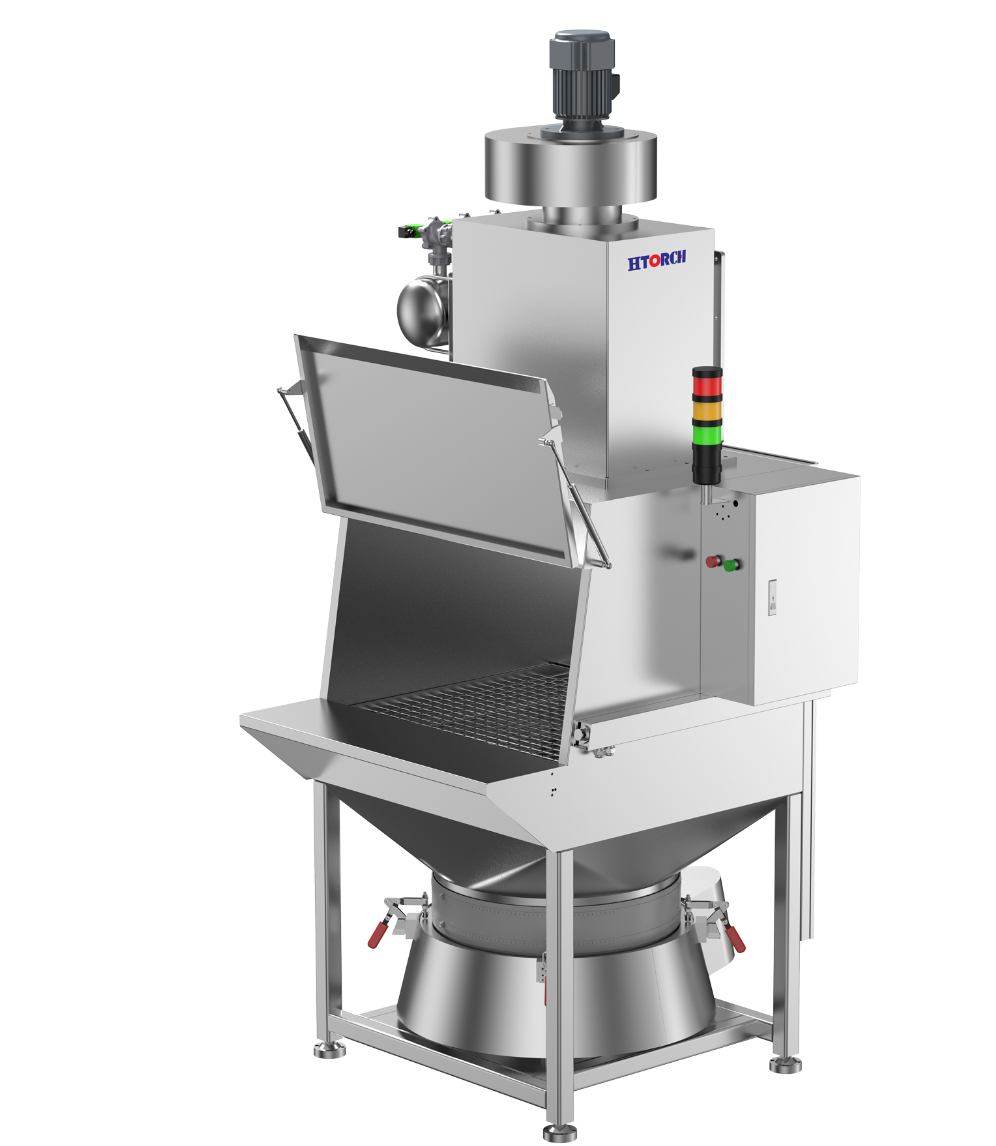

Adsorption-type unloading station

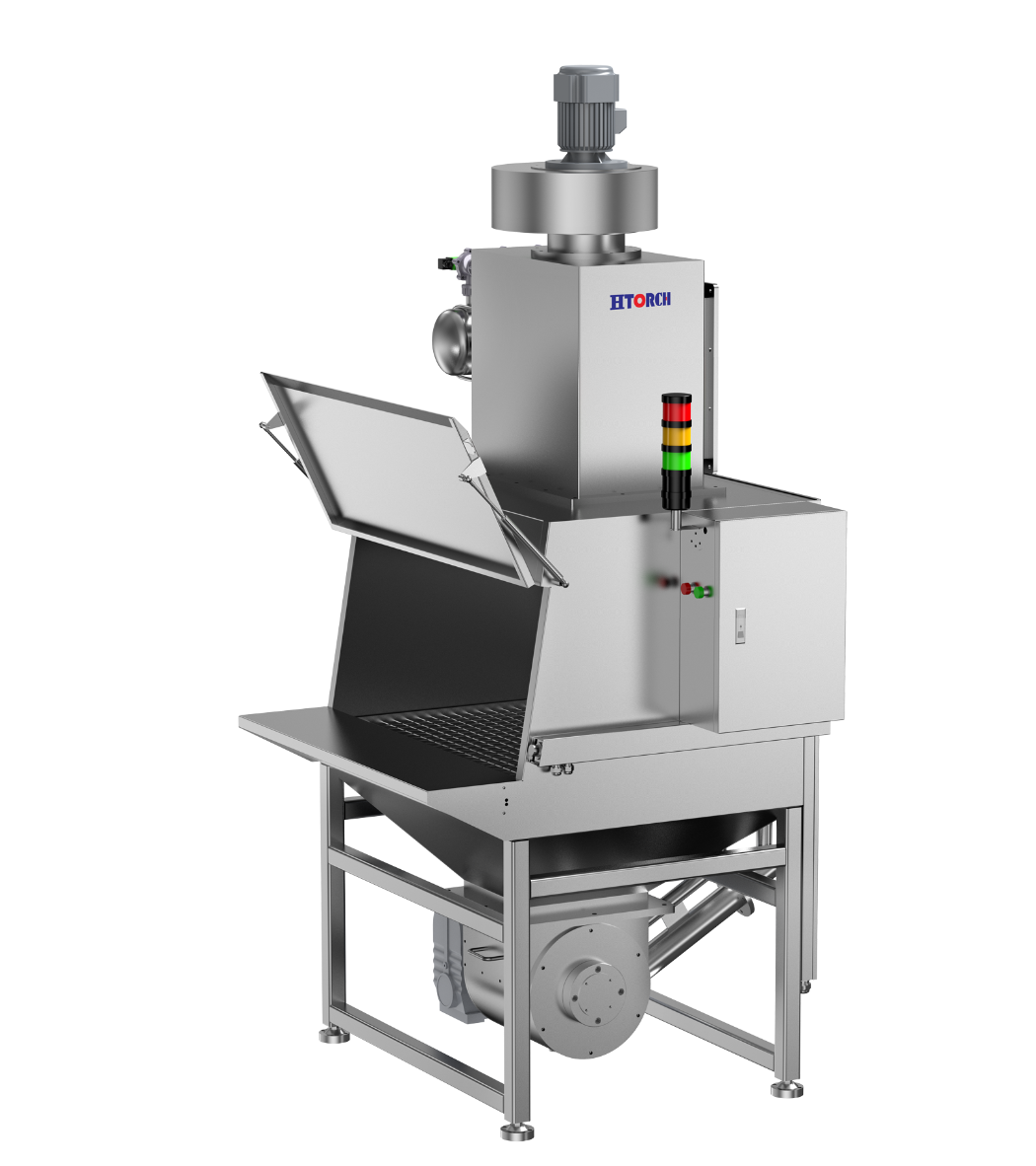

Vibrating screen de-packing station
Overview
Manual dust-free unpacking stations are designed for unpacking and unloading powdery and granular materials, suitable for industries such as food, pharmaceuticals, fine chemicals, and new materials, including flour, milk powder, food additives, white sugar, salt, and pharmaceutical raw materials.
Features
★ Quick-release structure for easy cleaning and maintenance
Screening mesh, silicone hoses, vibration sieve, mixing silo, dust removal bags are individually removable for easy cleaning.
★Integrated high-efficiency filter bag reverse air device
A gas storage tank sequentially reverses the compressed air to jet against the pleated filter bags, preventing dust from being blown out during backflushing, thereby protecting the operator and the work environment.
★ Ergonomically designed
The equipment features a compact structure and rational design. The feeding platform height is 800mm.
★ All equipment is made with food-grade materials.
All materials are food-grade, material certificates are available, and meet the requirements of the food industry.
Operating Principle
When powdered or granular materials need to be unpacked and poured into the next process, it only requires manual unpacking and pouring into the system. During pouring, the materials pass through a safety sieve to intercept large pieces and foreign objects, in conjunction with the screening structure, ensuring that only qualified powdered or granular materials are smoothly poured in. The dust generated during the feeding process is collected by the dust collection system and then blown back into the feeding port by the reverse blowing system, effectively preventing dust overflow.
Optional Configurations
