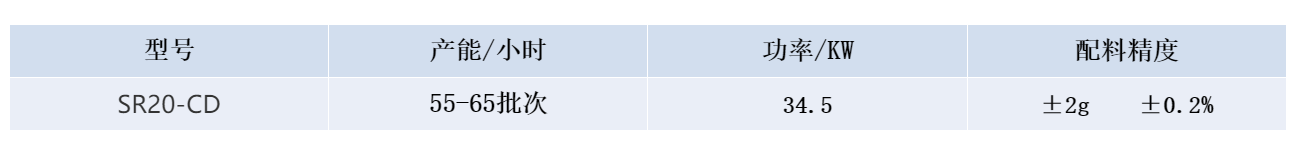

Technical Specifications

Scope of Function

The SR20-CD Micro Scale is designed for measurement and batching, capable of simultaneously weighing and proportioning dozens of small-scale ingredients. It offers a service solution for batching multiple small materials at once, meeting the complex batching and mixing requirements of intricate formulas. Primarily used in the food and pharmaceutical industries.

Structure and Principle

  SR20-CDF includes material hoists, feeding bins, HT28-38 feeders, modular weighing scales, rejectors, manual blending scales, heat-sealing machines, dust removal systems, industrial control computers, and MES software integration, forming a complete intelligent small material batching system.

Materials are manually loaded into the storage bin, equipped with a scanning and opening function to prevent errors. The intelligent controller drives the BVS89-50 feeder, processes weight handling modules at high speed, compares the weighing values with the calibrated values, and provides real-time feedback and correction for the feeder output to ensure each batch of formula material has an accuracy of ±0.2% error. Modular design, flexible configuration, adaptable to different scene requirements.

Operating Principle

Multiple feeding machines on this equipment can operate simultaneously. The feeding conveyor will automatically transfer the completed weighing buckets from the previous weighing station to the next. Operators simply place empty weighing buckets on the conveyor at the machine entrance and retrieve the fully weighed formula ingredients (buckets) at the exit end. Below the conveyor, there is a fixed base for the weighing platforms, with all platforms securely mounted on the base. The base is equipped with an automatic lifting mechanism. When the weighing buckets are transported to the platform, the platform rises to lift the buckets for measurement. After the measurement at this station is complete, the platform descends and moves away from the bucket, and the bucket is then sent to the next station.

Features

★ Intelligent ingredient mixing, enhancing production efficiency and reducing labor costs

★ Quick-release structure for easy cleaning and maintenance

Low dust pollution, equipped with an internal high-efficiency filter device

★ User-friendly operation, ergonomic design

★ High precision ingredients, modular high precision sensor

★ Auto-reweighing, automatic rejection

★ Dumbproof System, Scan to Unlock and Feed

★ Prevent cross-contamination by setting up an independent valve for raw material intake

★Responsive system, MES control
