MES System

Control Interface

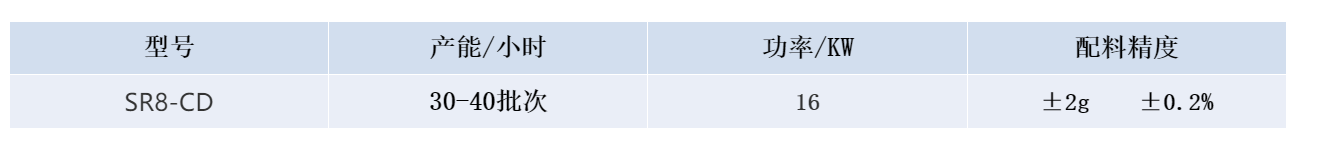

Technical Specifications

Scope of Functions

The SR8-CD微量配料称 is used for measurement and batching, capable of simultaneously weighing and batching dozens of small proportion raw materials. It offers a service solution for batching multiple small ingredients at once, meeting the complex batching requirements of various formulas. Mainly used in the food and pharmaceutical industries.

Structural Principles

  SR8-CDIncluding material hoists, feed bins, HT28-38 feeders, modular weighing scales, rejectors, manual blending scales, heat-sealing machines, dust removal systems, industrial control computers, and MES software integration, forming a complete intelligent small material batching system.

Materials are manually fed into the storage warehouse, equipped with barcode scanning to prevent errors. The BVS89-50 feeder is driven by an intelligent controller, which processes weight handling modules at high speed, compares the weighing values with calibrated values, and provides real-time feedback and corrections to the feeder output to ensure each batch of formula material has an accuracy within ±0.2% error. Modular design, flexible configuration, and adaptable to various scene requirements.

Working Principle

Multiple feeding machines on this equipment can operate simultaneously. The feeding conveyor will automatically transfer the filled buckets from the previous weighing station to the next one. Operators simply place empty buckets on the conveyor at the machine's entry point and retrieve the weighed batch materials (filled buckets) at the exit end. Below the conveyor, there is a fixed base for the weighing platforms, with all platforms securely mounted on the base. The base is equipped with an automatic lifting mechanism. When the buckets are transported to the weighing platform, the platform rises to lift the buckets for measurement. After the measurement at this station is complete, the platform lowers and moves away from the buckets, and the buckets are then sent to the next station.

Features

★ Intelligent ingredient mixing, enhancing production efficiency and reducing labor costs

★ Quick-disassembly structure for easy cleaning and maintenance

Low dust pollution, equipped with an internal high-efficiency filter system

★Easy-to-use, ergonomically designed

★ High-precision ingredients, modular high-precision sensors

★ Automatic re-weighing, automatic removal

★ Dumbproof system, scan to unlock and feed

★ Prevent cross-contamination by setting up independent material valves

★Responsive system, MES control
