MES System
Control Interface

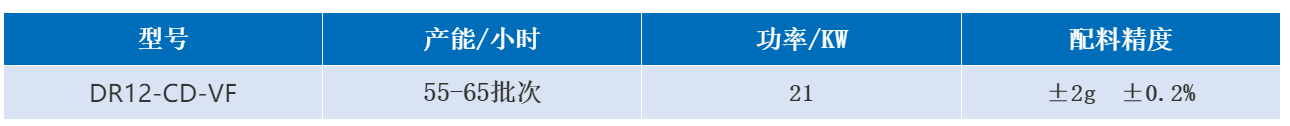

Technical Specifications
The DR-12-CD-VF微量配料称 is used for metering and batching, capable of simultaneously weighing and batching dozens of small proportion raw materials. It offers a service solution for batching multiple small ingredients at once, meeting the complex batching and mixing requirements of complex formulas. Mainly used in the food and pharmaceutical industries.
Structural Principle
The DR-12-CD-VF package includes a material hoist, feeding bin, BVS89-50 feeder, modular weighing scale, destoner, manual blending scale, heat-sealing machine, dust removal system, industrial control computer, and MES software integration, forming an intelligent small material batching system.
Materials are manually fed into the storage bin, equipped with a barcode opening bin anti-stupidity function. An intelligent controller drives the BVS89-50 feeding machine, the weight processing module performs high-speed calculations, compares the weighing value with the calibration value, provides real-time feedback and adjusts the feeding machine output, ensuring the accuracy of each formula material is ±0.2% error. Modular design, flexible configuration, adaptable to different scene requirements.
Operating Principle
Multiple feeding machines on this equipment can operate simultaneously. The feeding conveyor will automatically transfer the filled buckets from the previous weighing station to the next one. Operators only need to place empty buckets on the conveyor at the machine entrance and collect the weighed formula materials (filled buckets) at the exit end of the conveyor. Below the conveyor, there is a fixed base for the weighing platform, with all platforms securely mounted on the base. The base is equipped with an automatic lifting mechanism. When the filled buckets are transported to the platform, the platform rises to lift the buckets for weighing. After the weighing at this station is complete, the platform descends and moves away from the buckets, and the buckets are then sent to the next station. After re-weighing, the buckets are sent to the微量补料区 for manual topping up.
Seal manually in the heat-sealing area, then label and unload after sealing is complete.
Features
★ Smart ingredient blending to enhance production efficiency and reduce labor costs
★ Quick-release structure for easy cleaning and maintenance
Low dust pollution, equipped with an internal high-efficiency filter system
★Easy to operate, ergonomically designed
★ High-precision ingredients, modular high-precision sensors
★ Automatic re-weighing, automatic rejection
★ Anti-stupidity system, scan to unlock and feed materials
★ Prevent cross-contamination by setting up an independent valve for raw material intake
★Responsive system, MES control
