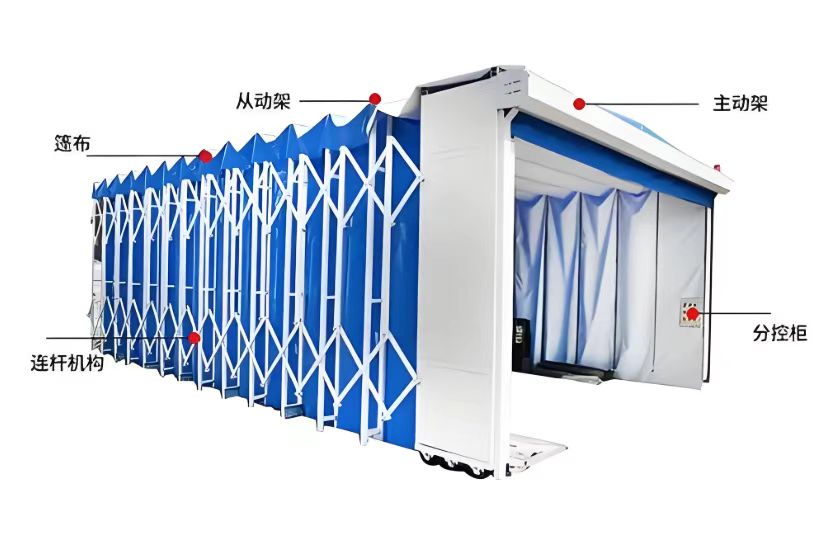

The telescopic paint booth is specially designed for comprehensive applications in handling heavy-duty workpieces that are difficult to move and in work areas. Standard fixed-type ante-rooms are unable to complete the transportation process for workpieces that require crane handling, while the mobile ante-room overcomes this drawback. Before the workpiece is painted, the mobile ante-room is first retracted and closed by pressing the control button, clearing the painting area. Once the workpiece is placed in position by the crane, pressing the control button opens the ante-room to cover the workpiece, without the need to move the workpiece again, ensuring no disruption to the crane's operation. The mobile ante-room is composed of multiple sets of frames that can move parallel to each other and flame-retardant canopy fabrics connected to these frames. The sliding connection mechanism between the frames ensures that the frames remain vertically parallel as they move along the overhead track, driven by the installation, while also expanding and retracting the canopy.

The telescopic mobile antechamber is driven by both sides in a linked manner. It features front and rear safety limit controls, allowing it to freely extend and retract along the ground-mounted track. The mechanical operation is safe and stable.

Contract and gather it, allowing space for other production as well; multi-functional use in limited space. Mist and dust equipment can be selected in wet, dry, or both methods.

The mobile paint spray booth ante-chamber is constructed of steel frame structure, capable of extending and retracting forward and backward. The sliding joints between frames are driven and installed, allowing the frames to move parallel and uniformly along the track to a closed state, then move the workpiece into the work area, extend and stop painting or polishing work, and upon completion, retract the mobile ante-chamber, move the workpiece back to the working area, completing the process. When not painting, the retractable and mobile spray booth can be folded to save space as a mobile work area to address space shortages. Product Introduction: The mobile paint spray booth and the pumpless water curtain spray booth are used separately, addressing the issue of mobility for heavy-duty workpieces during painting. The mobile ante-chamber solves this problem. During operation, the mobile ante-chamber is retracted, and the heavy-duty workpiece is lifted to the painting area using a crane. After painting, the ante-chamber is retracted again, and the workpiece is lifted off using the crane, without affecting the crane's operation, greatly simplifying the process of continuously transporting large and heavy workpieces using the workshop crane. There is no need for special transport equipment; the extended length can be positioned arbitrarily or customized to various non-standard sizes based on the client's actual production needs.
