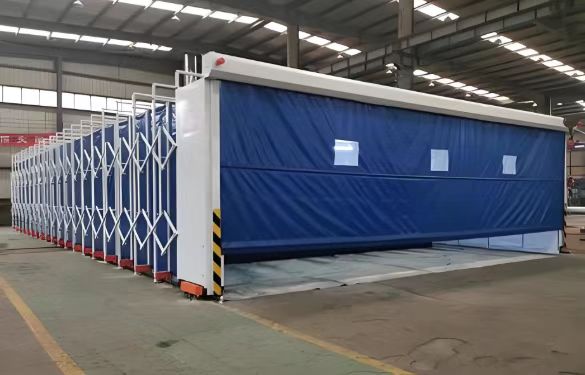

The telescopic paint spray room is specially designed for comprehensive applications where heavy-duty workpieces are difficult to move and in work areas. Standard fixed pre-chambers cannot handle the process of moving heavy-duty workpieces in and out, especially when cranes are required for transportation. The mobile pre-chamber overcomes this drawback. Before painting, the workpiece is first retracted by pressing the control button, clearing the painting area. Once the workpiece is placed in position by the crane, the control button is pressed to open the mobile pre-chamber to cover the workpiece, without the need to move the workpiece again, thus ensuring no disruption to the crane's operation. The mobile pre-chamber is composed of multiple sets of frames that can move parallel to each other and fire-retardant fabric segments connecting the frames. The sliding connection mechanism between the frames ensures that the frames remain vertically parallel as they move along the overhead track, driven by the installation, while also controlling the expansion and contraction of the fabric.

The telescopic and mobile antechamber is driven by both sides in a coupled manner, with forward and rear safety limit controls. It can freely extend and retract along the ground-mounted track. The mechanical operation is safe and stable.

Constrict and gather it, allowing space for other production activities as well, maximizing the use of limited space. Mist and dust units can be selected in wet, dry, or even both modes.

The mobile paint booth antechamber is constructed of a steel frame structure, which can be extended and retracted. The sliding joints between the frames, driven by the installed mechanism, allow the frames to move uniformly and parallel along the tracks to a closed state. Then, the workpiece is moved into the working area, and the antechamber is extended to stop painting or sanding work. After completion, the antechamber is closed, and the workpiece is moved back to the working area, completing the process. When not painting, the extendable and retractable paint booth can be closed to save space as a mobile area to address the lack of consumer space. Product Introduction: The mobile paint booth and pumpless water curtain paint booth are used separately to address the issue of mobility during heavy-duty workpiece painting. The mobile antechamber overcomes this problem. During operation, the mobile antechamber is retracted, and the heavy-duty workpiece is lifted to the painting area using a crane. Then, the antechamber is extended to cover the workpiece, and work can proceed. After painting, the antechamber is retracted again, and the workpiece is lifted away using the crane, without affecting the crane's operation, greatly simplifying the process of frequently using a workshop crane to transport large, heavy workpieces. No special transportation equipment is required; the extended length can be at any desired position, and various non-standard sizes can be customized according to the customer's actual production needs.
