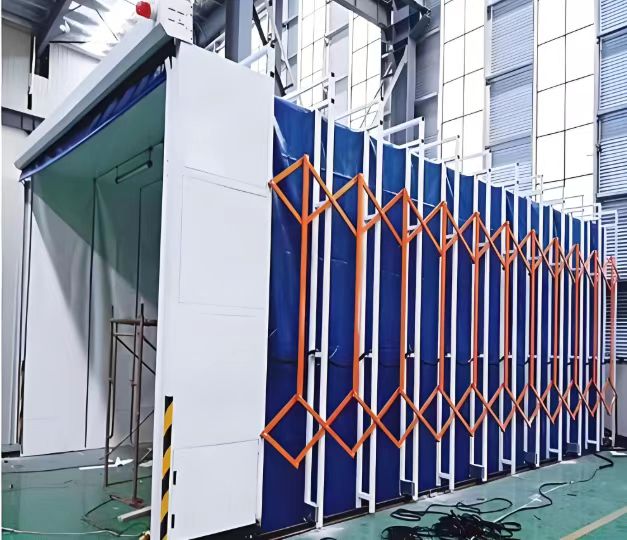

The telescopic spray booth is specifically designed for the comprehensive application of handling heavy-duty workpieces that are difficult to move and work areas. Standard fixed pre-chambers cannot complete the transportation process of moving heavy-duty workpieces in and out, especially those requiring crane handling. The mobile pre-chamber overcomes this drawback. Before spraying, the mobile pre-chamber is first retracted by pressing the control button, clearing the painting area. Once the workpiece is placed in position by the crane, pressing the control button again opens the pre-chamber to cover the workpiece, without the need to move the workpiece, thus ensuring no disruption to the crane's operation. The mobile pre-chamber is composed of multiple sets of frames that can move parallel to each other and flame-retardant fabric segments connecting the frames. The sliding connection mechanism between the frames ensures that the frames remain vertically parallel as they move along the track driven by the installation, simultaneously unfolding and closing the fabric.

The telescopic mobile antechamber is powered by dual side drives, operates in a linked manner, features front and rear safety limit controls, and can freely extend and retract along the ground-mounted track. The mechanical operation is safe and stable.

Compact and gather it, freeing up space for other production in limited areas. The paint mist and dust unit can be selected in wet, dry, or both modes.

The mobile paint booth antechamber is constructed of a steel frame structure, which can be extended and retracted. The sliding joints between the frames, driven by the installed mechanism, allow the frames to move uniformly and parallel along the tracks to a closed state. The workpiece is then moved into the working area, and the antechamber is extended to stop painting or sanding operations. After completion, the antechamber is closed, and the workpiece is removed from the working area, completing the process. When not painting, the telescopic mobile paint booth can be closed to save space as a mobile area, addressing the lack of consumer space. Product Introduction: The mobile paint booth and pumpless water curtain paint booth are used separately, solving the problem of mobility for heavy-duty workpieces during painting. The mobile antechamber overcomes this issue. During operation, the mobile antechamber is retracted, and the heavy-duty workpiece is lifted to the painting area using a crane. Then, the antechamber is extended to cover the workpiece, and the operation can begin. After painting, the antechamber is retracted again, and the workpiece is lifted away using the crane, without affecting the crane's operation, greatly simplifying the process of repeatedly using the workshop crane to transport large, heavy workpieces. No special transportation equipment is required; the extended length can be at any desired position, and various non-standard sizes can be customized according to the customer's actual production needs.
