Main Applications: Boiler water, cooling circulating water, textile dyeing and printing water, chemical production water, cleaning water, mold temperature machine配套 water, refrigeration machine配套 water, plate heat exchanger配套 water, coating industry, aluminum anodizing, cleaning machine配套 water, semiconductor industry, solar photovoltaic industry (single crystal silicon, polycrystalline silicon, solar cells, alumina crucible, photovoltaic glass), magnetic material water, fine chemical production water, chemical experiments, plastic production water, coating water, high-purity ink water.
※Mid-pure Environmental Protection Brand 『Design Advantages』:
1. Personalized one-on-one service, free on-site site survey, considering placement area and access space, and free original water quality testing.
2. Understand the customer's full-day water demand, peak water usage, water quality requirements, and learn about the customer's production process and industry characteristics.
3. Professional team collaboration with design, coupled with on-site inspections by dedicated service personnel, and one-stop water treatment solution services.
4. Intelligent design with precise control and high level of automation. Each unit can achieve automatic forward/ reverse washing/operation, interlock protection, alarm indication, 4-20mA data open, and can be remotely transmitted to the DCS central control system, truly achieving unattended operation.
5. Segmented testing according to process requirements, capable of measuring conductivity, resistivity, pH, ORP, temperature, flow rate, velocity, and pressure, ensuring that water in every process stage meets quality standards and does not contaminate the finished product water downstream. Emphasis is placed on process control.
6. Design products that balance the principles of comprehensive investment and operational costs for customer suitability.
※Pure Eco-Friendly Brand 『Production Advantages』:
1. Core components are all imported, and we have established long-term cooperative relationships with many international brands such as Dow, Hydronix, GE, Siemens, Rhone-Poulenc, Grundfos, Rosemount, Nippon Paint, and Schneider, ensuring reliable product quality.
2. Suppliers conduct product evaluations, eliminating subpar-quality and poor-service providers, and selecting the best to enter the qualified supplier system.
3. Strictly adhere to the quality management system, with quality as a priority, conducting inspections of incoming materials for appearance and performance – production process inspections – and final product quality checks.
4. Production staff produce according to assigned numbers, grouped shifts for production, responsible division of labor, established performance assessment, and strong traceability.
5. Pre-shipment trial run inspection and electrical point operation test to ensure delivery of qualified products to the customer.
※Pure Eco-Friendly Brand - "After-Sales Advantages":
1. Professional installation and after-sales team providing one-on-one service, enhancing the timeliness of post-installation after-sales support and improving customer satisfaction.
2. Establish a post-installation after-sales service system, conduct performance evaluations, set up a customer service department, a complaint window, and promptly address customer concerns.
3. Full guidance and training throughout the installation and debugging process, including theoretical training, hands-on machine operation training, and general troubleshooting training.
4. Establish customer electronic profiles, conduct monthly phone follow-ups, and promptly provide methods and suggestions for reducing equipment operation costs.
5. Multiple channels for after-sales feedback, nationwide after-sales maintenance and service, quick response, fast handling, 24/7 service.
6. Strictly Commitment: Two-year free warranty for the entire unit, lifetime free technical support.
For more product details, please call our 24-hour hotline at 18550863818 or the national hotline at 0512-69390898.
We will provide you with detailed plans, drawings, and competitive quotes for your reference and selection!
※ Call for consultation, enjoy 10% off! Welcome to call!
I. Introduction to Ion Exchange Technology:
(1) Sodium Ion Softener:
The软化器 operates by utilizing the ion exchange action of the resin to replace and remove hardness components in water, such as Ca2+ and Mg2+ ions. The raw water flows from top to bottom through the sodium ion exchange agent within the softener, becoming water with extremely low levels of calcium, magnesium, and salts (i.e., softened water). The residual hardness of the water after sodium ion softening typically does not exceed 0.03 mmol/L.
To prevent scaling, such as carbonates, sulfates, and other chemical deposits on the concentrate side of the reverse osmosis membrane (especially the last set of membrane elements in the reverse osmosis pressure vessel), which can impair the performance of the membrane elements, it is necessary to soften the incoming water prior to reverse osmosis treatment. This extends the lifespan of the RO membrane.
Over time, the resin in the softener reaches its exchange capacity and needs to be regenerated. Salt absorption regeneration is achieved by adding NaCl, with the regeneration cycle depending on the quality of the raw water and usage. Generally, a reference cycle of 7-15 days is provided, calculated specifically based on the raw water hardness index, produced water hardness, and water output.
Full Automatic Softening Valve Head Schematic Diagram

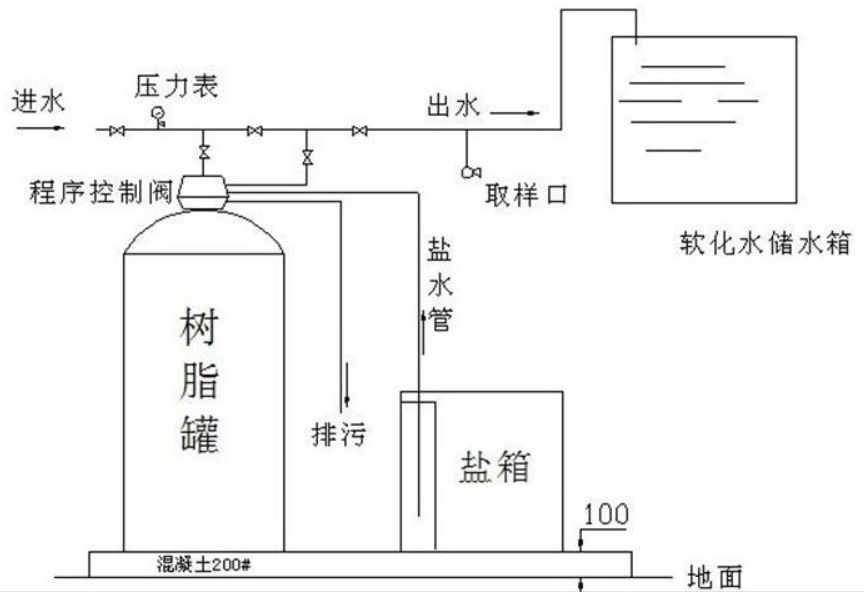

B. Single Valve, Single Tank Schematic Diagram

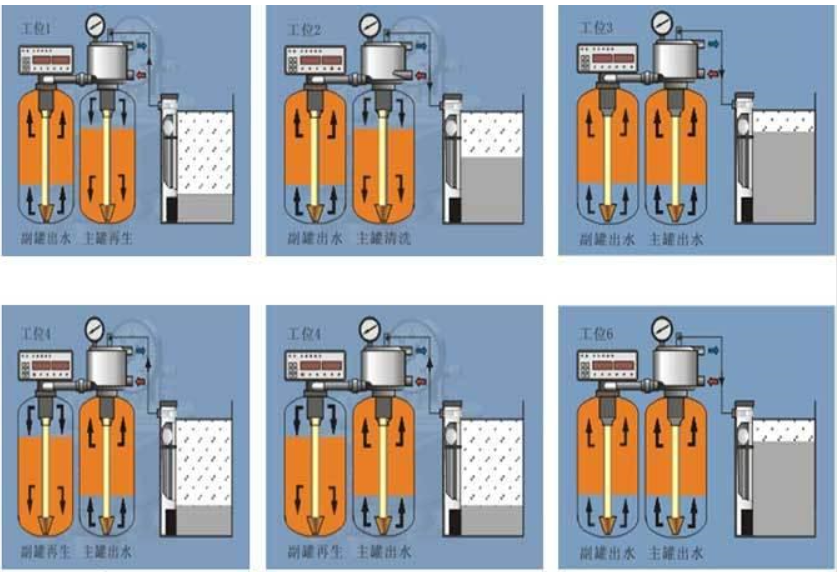

C. Single Valve, Double Tank Schematic Diagram

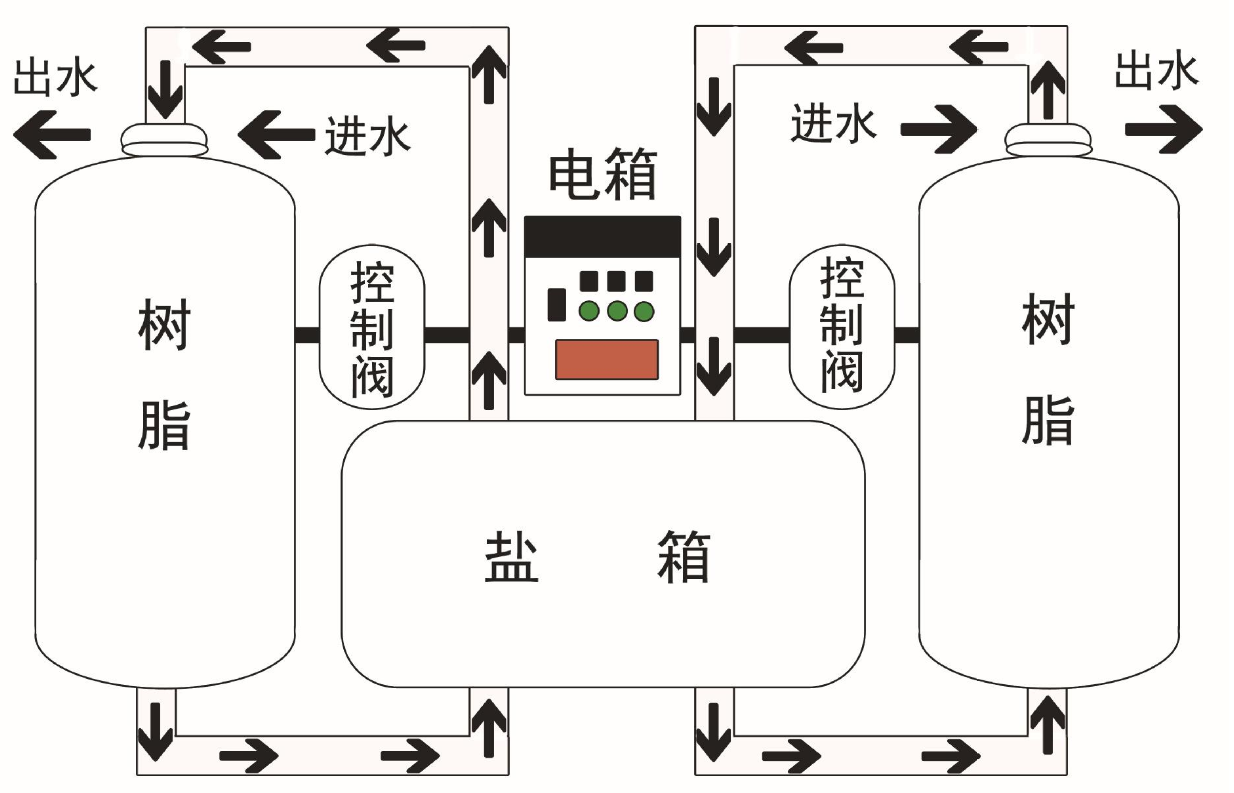

Figure D: Double Valve, Double Tank Schematic
3. Mixed-bed Ion Exchange
Introduction to Principle
Water treated by the reverse osmosis unit still does not meet the purity requirements for process water, therefore, a mixed ion exchange unit is added after the reverse osmosis unit to further improve the water quality of the system's output.
Mixed bed ion exchanger, commonly referred to as a mixed bed, is a chemical desalination device that places both cation and anion exchange resins in the same exchanger and mixes them uniformly during operation. The cation and anion exchange resins within the mixed bed are in a state of uniform mixing, contacting and arranging with each other, so each pair of adjacent cation and anion resins can be considered as a single-stage double bed. The entire mixed bed is composed of many such double beds stacked continuously, with an estimated number of stages ranging from 1000 to 2000. In the mixed bed, the H+ ions generated by the cation resin exchange and the OH- ions generated by the anion resin exchange are immediately neutralized, eliminating interference from counter-ions. Therefore, the ion exchange reaction is carried out very thoroughly, resulting in a high purity of the effluent. It has the following characteristics:
1. High purity of effluent; 2. Stable effluent water quality; 3. Clear exchange endpoint; 4. Discontinuous operation has minimal impact on effluent water quality.
(2) Accessories Introduction
1. Mixed ion exchange units use the reverse osmosis system's effluent as feedwater. They are filled with 001×7MB strong acid cation exchange resin and 201×7MB strong base anion exchange resin of uniform particle size. Each unit is equipped with a resistivity meter to control the resin regeneration cycle based on the effluent resistivity parameter value. Operation stops and regeneration is initiated when the effluent resistivity value of a mixed ion exchange unit falls below the set value.
2. Polished Mixed Bed System
Polished mixed beds are generally used at the end of ultra-pure water treatment systems, utilizing the principle of resin ion exchange. The internal container is filled with non-regenerable polishing mixed bed resins of nuclear grade, with all ions in H and OH forms. As a terminal desalination device, they can increase the resistivity of the pretreatment water to the user's required level and have certain control capabilities over TOC and SiO2.
Polished mixed bed ion exchange requires specific feedwater; it must be the product water from an anion, cation, or mixed bed ion exchange system, or from an EDI continuous electrodialysis desalination system. Only with feedwater conditions that meet these requirements can the polished mixed bed ion exchange operate stably and long-term.

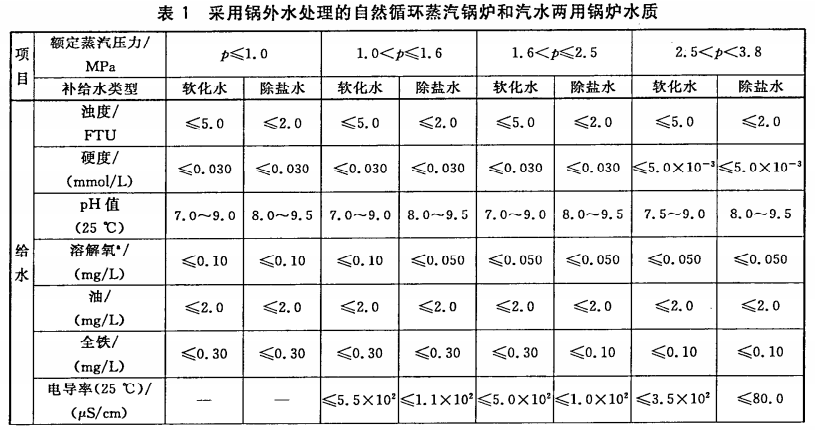

Section II: Industrial Boiler Water Quality Standards:

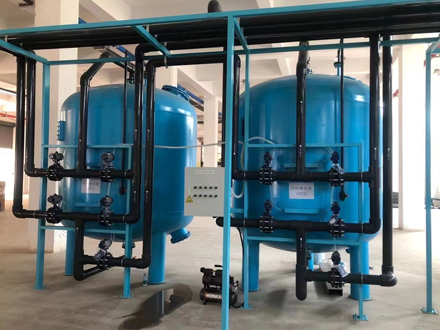

Section 3: Classic Customer Case Studies:
Section 4: National Warranty and Service Network
1. Professional installation and after-sales team, providing one-on-one service, enhancing the timeliness of post-installation after-sales service and improving customer satisfaction.
2. Establish a post-installation after-sales service system, conduct performance evaluations, set up a customer service department, a complaint hotline, and promptly address customer concerns.
3. Comprehensive guidance and training throughout the installation and debugging process, including theoretical training, hands-on machine operation training, and general troubleshooting training.
4. Establish customer electronic files, conduct monthly phone follow-ups, and promptly provide methods and suggestions for reducing equipment operation costs.
5. Multi-channel after-sales feedback, providing nationwide after-sales maintenance services, quick response, fast processing, 24/7 service.
6. We solemnly promise: Two-year free warranty for the entire unit, lifetime free technical support.
For more product details, please call our 24-hour hotline at 18550863818 or our service hotline at 0512-69390898.
We will provide you with detailed plans, drawings, and competitive quotes for your reference and selection!
※ Phone consultation available with 10% discount, welcome to call!
